IDM-7116 Industrial 16 Port 100M Ethernet Switch Non Managed Din-Rail 24V Working at -20 to70 °C

Controls & Indicators
Product introduction
The IDM-7116 industrial Ethernet switch is entry-level industrial 8-port Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The IDM-7116 switch is rated to operate at temperatures ranging from -20 to70 °C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting, DC24V or AC24V power supply, LED indicators make the plug-and-play IDM-7116 switches easy to use and reliable.
Product features
16-port 10/100BaseT(X) (RJ45 connector)
IEEE802.3/802.3u/802.3x support
10/100Mbps auto negotiation
Supports full-duplex or half-duplex negotiation
AC18~30V or DC12~36V input
DIN-rail mounting ability
Industrial Ethernet standard
Product specification
Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X)
Ports: 16-ports 10/100Base-T(X), auto detection, full/half-duplex, auto MDI/MDI-X
table size: 8 K
LED indication: PWR, 1-16 RJ-45 ports link
Voltage input: AC18~30V or DC12~36V, 200mA @ 24V (Max)
Reverse polarity protection: Yes

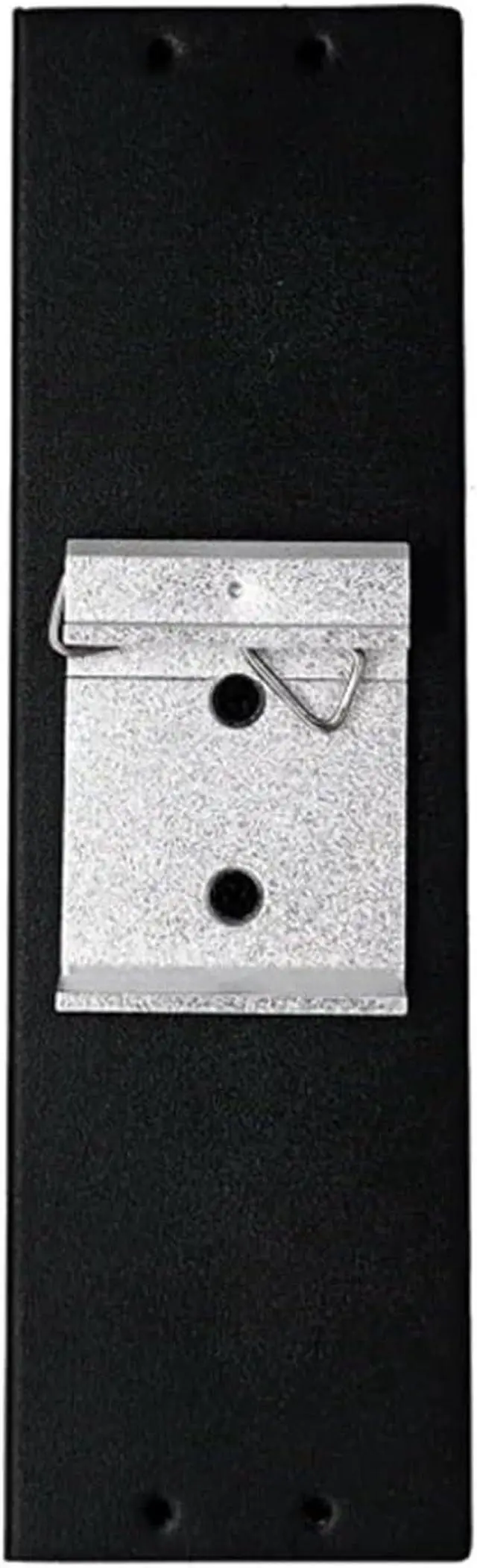

Installation: 35mmDIN-Rail

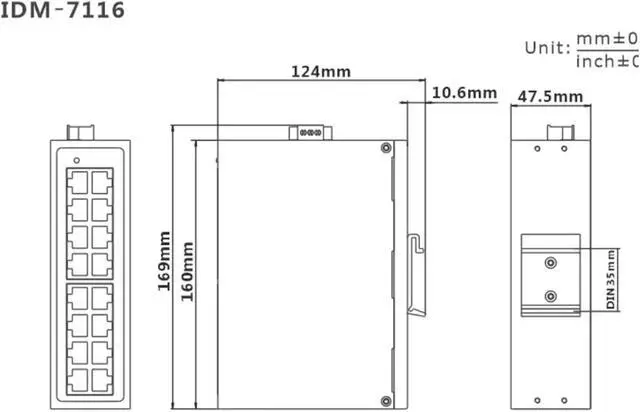

Dimension (W x H x D): 169×124×47.5 (mm)
Operating temperature: -20-70
Storage temperature: -40-85
Relative humidity: 5-95% (non-condensing)
Interface definition

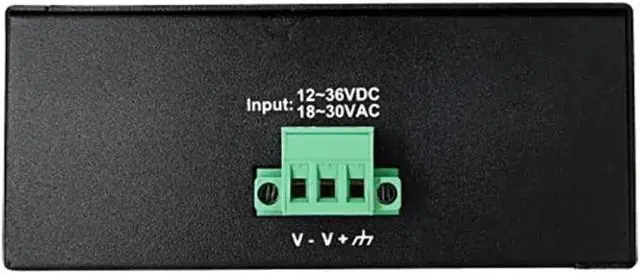

Power
VS+:Power positive, VS-:Power negative
Ethernet
1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16

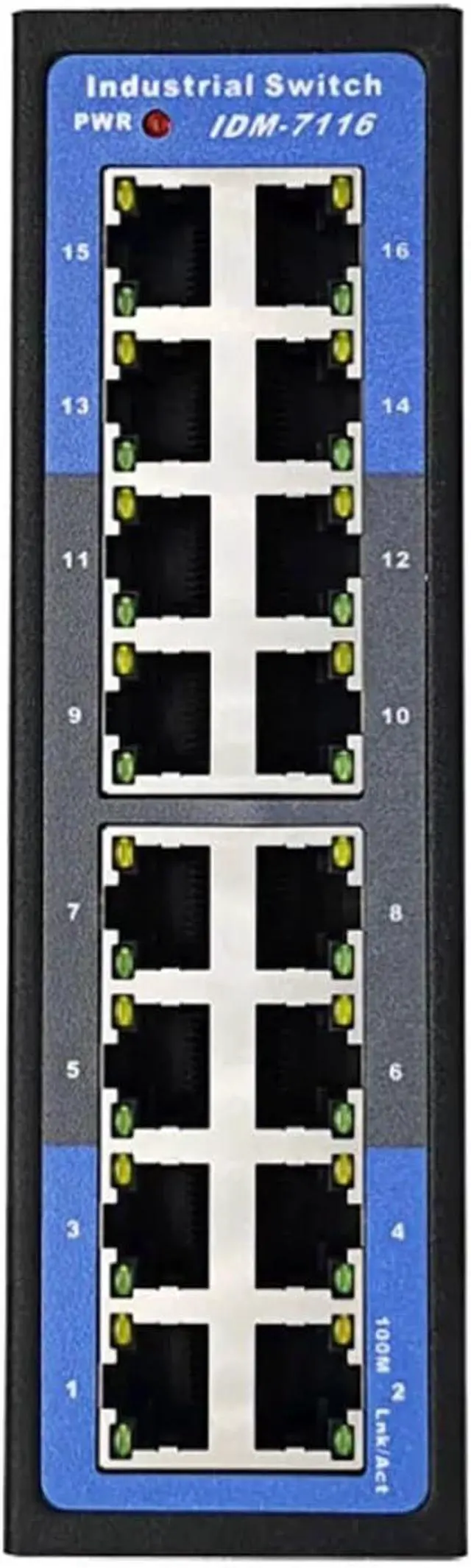

LED
PWR,1~16 Ethernet ports Link/Act
