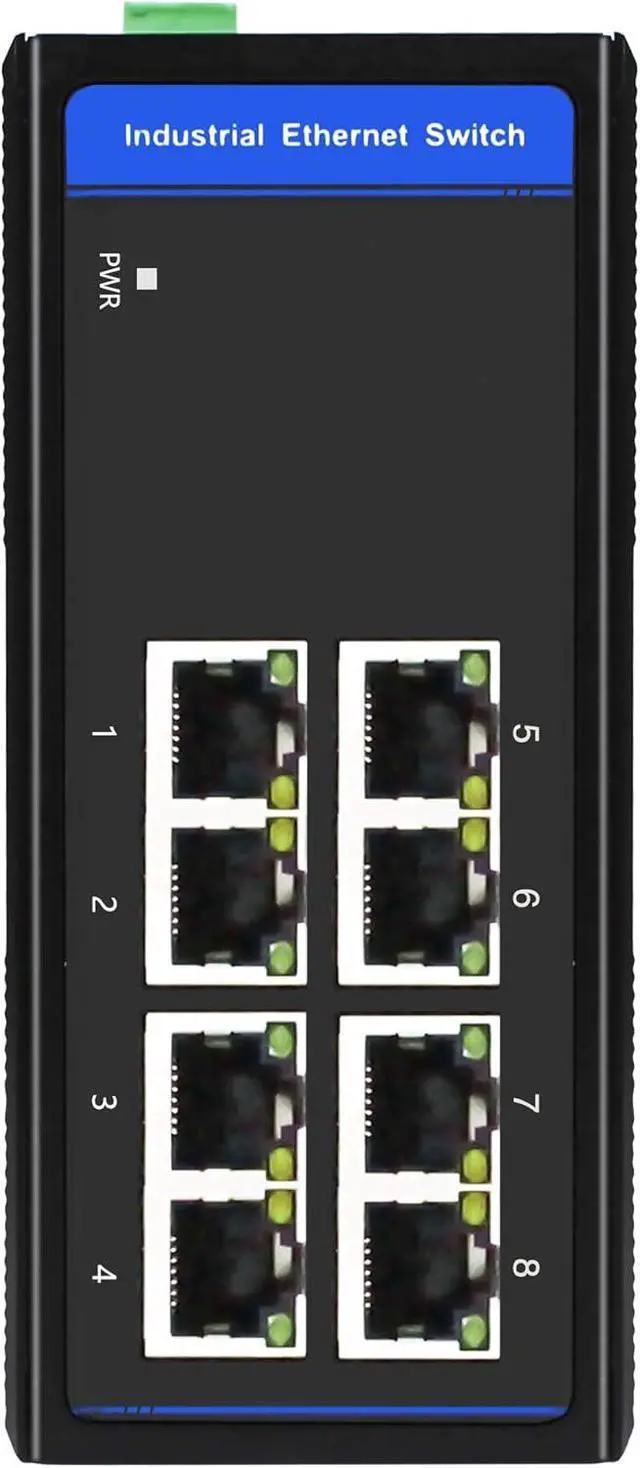

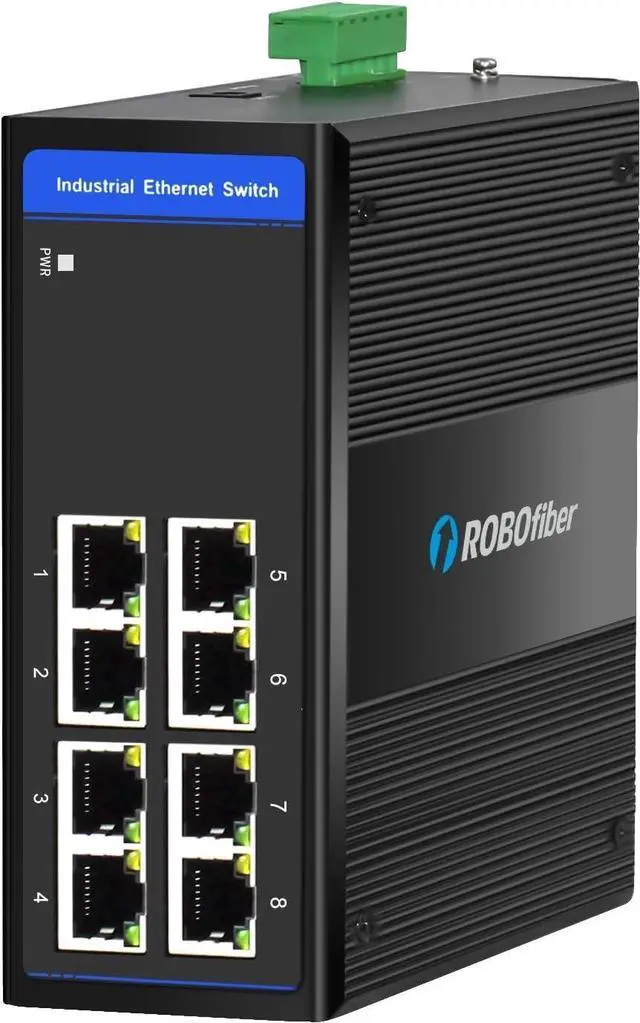

HSW-800 - 8X RJ45 Ports Fast Ethernet Industrial Fiber Switch, DIN Rail Mount, -40 to +75 Celsius
- 8-Port 10/100Base-TX copper ports switch, Auto-Negotiation and Auto MDI/MDI-X on each TP port
- Redundant dual DC input Power 12/24/48VDC (9.6~60VDC), Alarm Relay output with current carrying capacity of 1 A @24VDC, IP40 rugged metal housing with DIN rail and wall mounting options, wide operating temperature: -40~75°C, Dimensions: 108 x 49 x 138mm(D x W x H), Weight: 0.65kg
- Store and Forward switching mechanism, reversed power polarity protection
- UL508, CE, FCC, Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
- Switch Architecture Back-plane (Switching Fabric): 1.0 Gbps, Data Processing: Store and Forward, Flow Control: IEEE 802.3x, back pressure flow control; Broadcast Storm Protection, MAC Address Table: 4K, Packet Buffer Size: 1MB
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
8-Port 10/100Base-TX copper ports switch, Auto-Negotiation and Auto MDI/MDI-X on each TP port
Redundant dual DC input Power 12/24/48VDC (9.6~60VDC), Alarm Relay output with current carrying capacity of 1 A @24VDC, IP40 rugged metal housing with DIN rail and wall mounting options, wide operating temperature: -40~75°C, Dimensions: 108 x 49 x 138mm(D x W x H), Weight: 0.65kg
Store and Forward switching mechanism, reversed power polarity protection
UL508, CE, FCC, Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
Switch Architecture Back-plane (Switching Fabric): 1.0 Gbps, Data Processing: Store and Forward, Flow Control: IEEE 802.3x, back pressure flow control; Broadcast Storm Protection, MAC Address Table: 4K, Packet Buffer Size: 1MB
Redundant dual DC input Power 12/24/48VDC (9.6~60VDC), Alarm Relay output with current carrying capacity of 1 A @24VDC, IP40 rugged metal housing with DIN rail and wall mounting options, wide operating temperature: -40~75°C, Dimensions: 108 x 49 x 138mm(D x W x H), Weight: 0.65kg
Store and Forward switching mechanism, reversed power polarity protection
UL508, CE, FCC, Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
Switch Architecture Back-plane (Switching Fabric): 1.0 Gbps, Data Processing: Store and Forward, Flow Control: IEEE 802.3x, back pressure flow control; Broadcast Storm Protection, MAC Address Table: 4K, Packet Buffer Size: 1MB
