PCIE GEN 3.0 X8 Interface to 2X 25GbE SFP28 Optical Ports Converged RDMA Network Adapter, PCIE Ethernet Adapter, PCIE NIC Card, Broadcom BCM57414 2X 25Gb/s SFP28 Ethernet Controller (BCM57414)

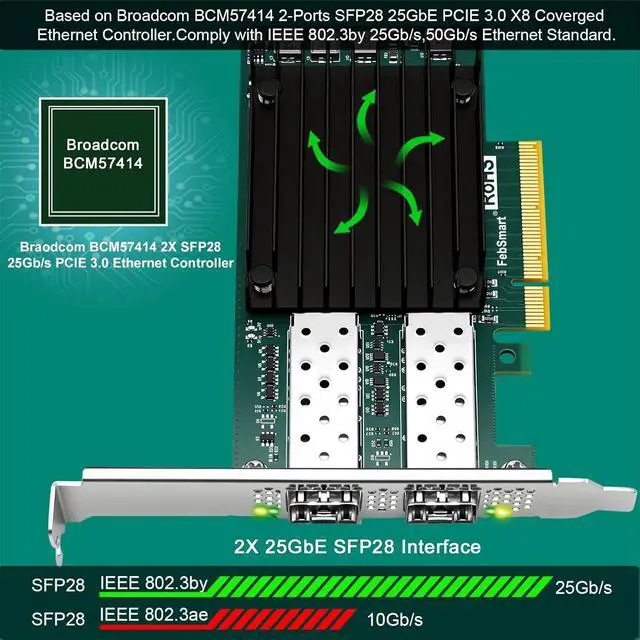

1. BCM57414 is a PCIE GEN 3.0 X8 interface to 2X 25GbE SFP28 optical ports converged RDMA network adapter for Telcom, Cloud Networking, Storage and Data Analytics. Based on Broadcom Technology BCM57414 2X 25GbE SFP28 PCIE 3.0 Ethernet controller, bring latest technology which include Tru Flow, On-chip Tunneling Protocol, Advanced Networking, Tru Manage Technologies on Data Centers.
2. Major Chipset: Broadcom BCM57414, Hardware Interface: PCIE GEN 3.0 X8, Network Speed: 2X 25GbE, Ethernet Interface: 2X 25GbE SFP28 Fabrics, Overlay Networks Type: NVGRE and VXLAN, SR-IOV: 16 physical functions, Storage Protocols: SRP, iSER, NFS, RDMA, SMB Direct, NVMe-Of, Remote Boot: Ethernet, iSCSI, PXE, UEFI.
3. Support IEEE 802.3by, 25GbE, 50GbE. IEEE 802.3ba 40GbE. IEEE 802.3ae 10GbE. Jumbo frame (9.6KB). IEEE 802.3az Fast-Wake Mode. IEEE 802.3ap. IEEE 802.3ad, 802.1AX. IEEE 802.1Q, 802.1P. IEEE 802.1Qau. IEEE 802.1Qaz. IEEE 802.1Qbb. IEEE 802.1Qbg. IEEE 1588v2. 25GbE, 50GbE Ethernet Consortium for 50GbE, 100GbE, 200GbE PAM4 links.

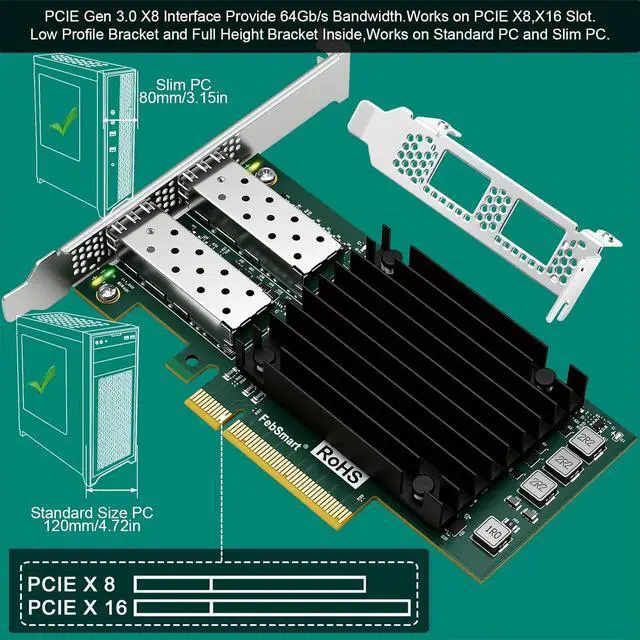

4. PCIE GEN 3.0 standard, support 8GT/s each LANE. PCIE X8 interface, provide 64Gb/s bandwidth ensure 2X SFP28 ethernet ports archive 25GbE concurrently. Works on Motherboard PCIE X8 or X16 slot. Supports PCIE 5.0, 4.0 and 3.0 slot in full speed 2X 25GbE.

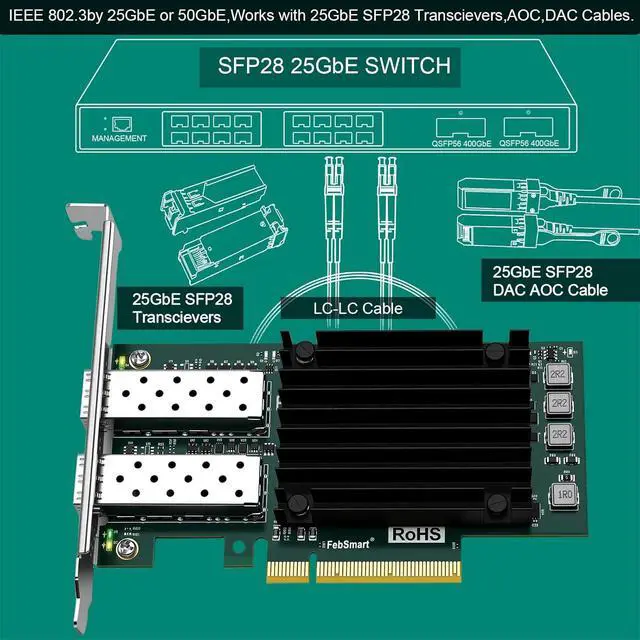

5. Comply with Open Fabrics Enterprise Distribution (OFED) and Open Fabrics Windows Distribution (WinOF-2). Supports Passive or active 25GbE SFP28 AOC, DAC cables, and 25GbE SFP28 transceivers with optical cables.

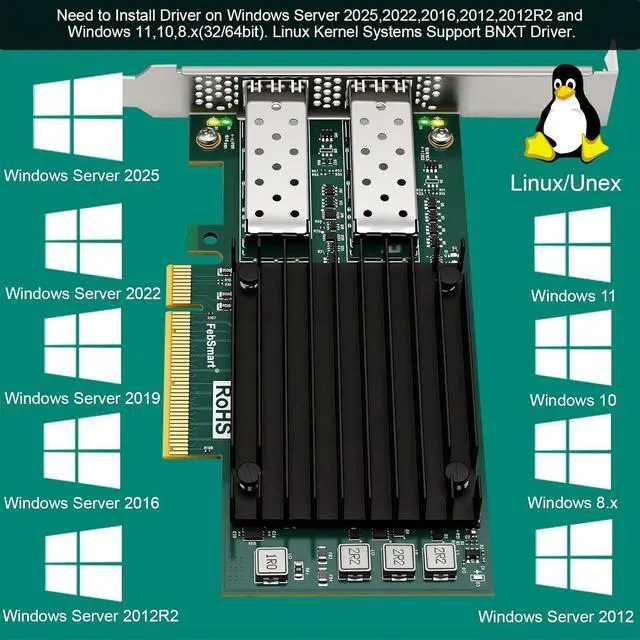

6. Need to install driver on Windows Server 2025, 2022, 2019, 2016, 2012 64bit and Windows 11, 10 64bit systems. Linux system support BNXT driver.
