CWWK Firewall Appliance Mini PC,13th Intel U300(up to 4.4GHz),6*Intel i226-V 2.5G Ethernet Ports 5-core Soft Routing, 2*USB3.2
- 1*TF Slot|2*SATA|1*M.2 NVMe x4|Triple Display mini Host,Barebone
- Intel's new 13th generation RaptorLake platform low-power 7nm processor, large core + small core architecture high-performance processor, basic TDP power consumption is only 15W.
- Double copper tube turbine active fan heater allows the system to operate efficiently and stably, and the DC12-19V wide voltage power input allows the machine performance to be fully utilized.
- M.2 M Key PCIe3.0 x4 signal (supports 2280 specification hard drive), M.2 E Key supports WiFi6 module and supports NVMe hard drive through the adapter board,Onboard 2 12pin non-standard SATA3.0 hard drive sockets
- Dual-channel SO-DIMM DDR4 memory is compatible with 2666/3200 GHz Max 64G, HDMI+DP+Type display output supports three-screen 4K high-definition display, Reserved TF card socket for system booting or data storage making it easy to set up and use.
- If you have any questions on CWWK Firewall mini pc, feel free to contact us . We offered 12 Month
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Processor: Intel U300
Memory: 2*SO-DIMM DDR4 3200 (compatible with 2400/2666MHz) maximum 64G
Hard drive: 1*M.2 NVMe x4 2*SATA (non-standard 12Pin 2.5-inch interface)
Graphics card: 13th generation Intel Ultra Core Graphics/Iris XE graphics card
Display: U300(48UE)
HDMI 1.4 supports 3840x2160@60Hz
DP 1.4 supports 7680x4320@60Hz
Type-C supports 4090x2304@60Hz
Network card: 6*Intel i226-V 2.5G network card
WiFi: 1*M.2 E key (supports WiFi6/Bluetooth module)
USB: 2*USB3.0, 2*USB3.2(10Gbps)

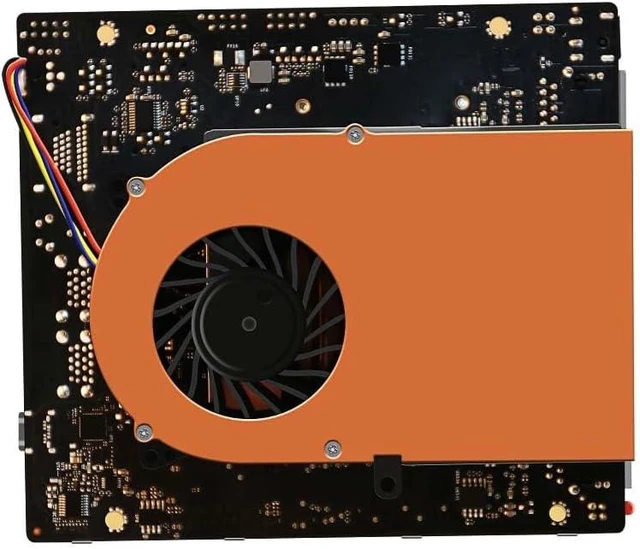

Heat dissipation: Double copper tube turbine active heat dissipation (whole copper sheet on the surface)
BIOS: AMI EFI BIOS with support for Auto power-on , GPIO, Wake On Lan
Power consumption: 15W (basic power consumption), 55W (maximum turbo frequency power consumption)
Power supply: DC12-19V wide voltage power supply (55*25 connector)
Chassis: Aluminum alloy material
Extension pins: 1*USB2.0 1*COM serial port 1*CPU_FAN(5V) 1*F_PANEL
Dimensions: 145.4mm (length) X 131.7mm (width) X 60.0mm (height)
Color: Gray/Black
Installation method: Desktop type, (you can contact customer service to purchase additional wall hangings)
Working environment: -0°C ~+70°C, relative humidity 5%-85%
Suitable for computer enthusiasts DIY projects, light office use, software routing, virtualization, edge computing, small-scale NAS, and running industry-specific software applications
Memory: 2*SO-DIMM DDR4 3200 (compatible with 2400/2666MHz) maximum 64G
Hard drive: 1*M.2 NVMe x4 2*SATA (non-standard 12Pin 2.5-inch interface)
Graphics card: 13th generation Intel Ultra Core Graphics/Iris XE graphics card
Display: U300(48UE)
HDMI 1.4 supports 3840x2160@60Hz
DP 1.4 supports 7680x4320@60Hz
Type-C supports 4090x2304@60Hz
Network card: 6*Intel i226-V 2.5G network card
WiFi: 1*M.2 E key (supports WiFi6/Bluetooth module)
USB: 2*USB3.0, 2*USB3.2(10Gbps)
Heat dissipation: Double copper tube turbine active heat dissipation (whole copper sheet on the surface)
BIOS: AMI EFI BIOS with support for Auto power-on , GPIO, Wake On Lan
Power consumption: 15W (basic power consumption), 55W (maximum turbo frequency power consumption)
Power supply: DC12-19V wide voltage power supply (55*25 connector)
Chassis: Aluminum alloy material
Extension pins: 1*USB2.0 1*COM serial port 1*CPU_FAN(5V) 1*F_PANEL
Dimensions: 145.4mm (length) X 131.7mm (width) X 60.0mm (height)
Color: Gray/Black
Installation method: Desktop type, (you can contact customer service to purchase additional wall hangings)
Working environment: -0°C ~+70°C, relative humidity 5%-85%
Suitable for computer enthusiasts DIY projects, light office use, software routing, virtualization, edge computing, small-scale NAS, and running industry-specific software applications
