Industrial Gigabit Smart PoE++ Splitter 10/100/1000Mbps IEEE802.3af/at/bt with LED Display and Adjustable Output Voltage 5~36VDC 70W for Non-PoE Devices (Smart PoE Splitter 95W)
- Built-in LED Real-Time Diagnostic Display (Unique Competitive Edge)Equipped with scrolling digital LED screen to simultaneously monitor real-time equipment temperature(), output voltage(V), output current(A) and power(W). Unlike ordinary PoE splitters without monitoring function, this industrial PoE splitter lets technicians quickly troubleshoot power overload, abnormal voltage or overheating without extra testing tools, greatly cutting field maintenance time for PTZ cameras, industrial sensors and IoT terminals.
- 70W Max 5~36V Wide Adjustable DC Output, Full IEEE802.3bt PoE++ ComplianceSupports complete PoE standards IEEE802.3af/at/bt PoE++ with max 70W power output, adjustable DC voltage from 5V to 36V via rotary knob (power off before adjustment). Separates integrated data+power PoE input into independent Gigabit data signal and dual-channel DC power, perfectly compatible with high-power non-PoE devices including industrial cameras, wireless AP, access control readers and
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

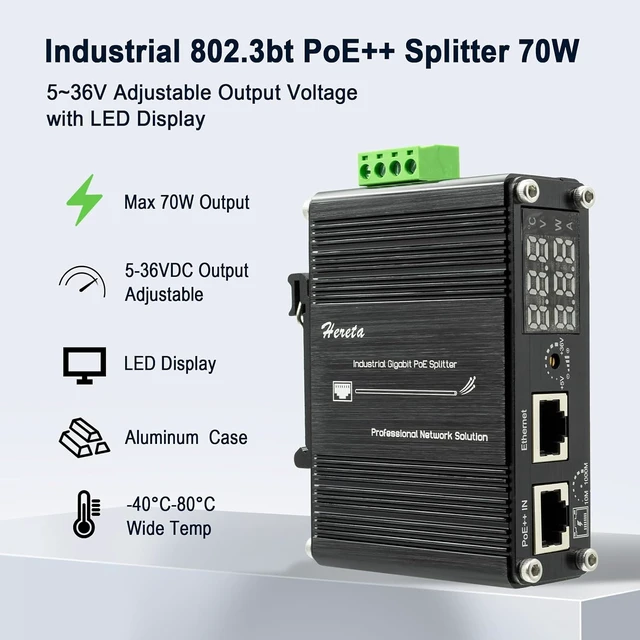

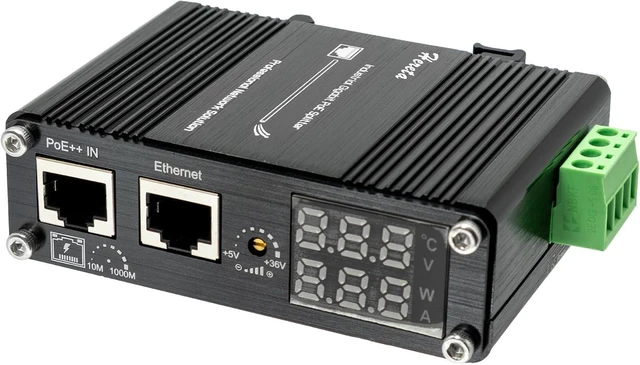

The LNK-INS901-LED is an industrial-grade Gigabit PoE Splitter designed to power and connect non-PoE devices in demanding environments. It efficiently separates a standard IEEE 802.3af/at/bt PoE input into gigabit data and adjustable DC power (5-36V), eliminating the need for separate electrical wiring to remote edge devices.
This plug-and-play unit requires no software or tools for configuration. It reliably delivers both data and power over the full 100-meter Ethernet distance. Featuring a rugged, fanless metal enclosure, comprehensive protection circuits, and clear diagnostic LEDs, the LNK-INS901-LED ensures flexible installation, operational simplicity, and high reliability in a wide range of industrial applications.

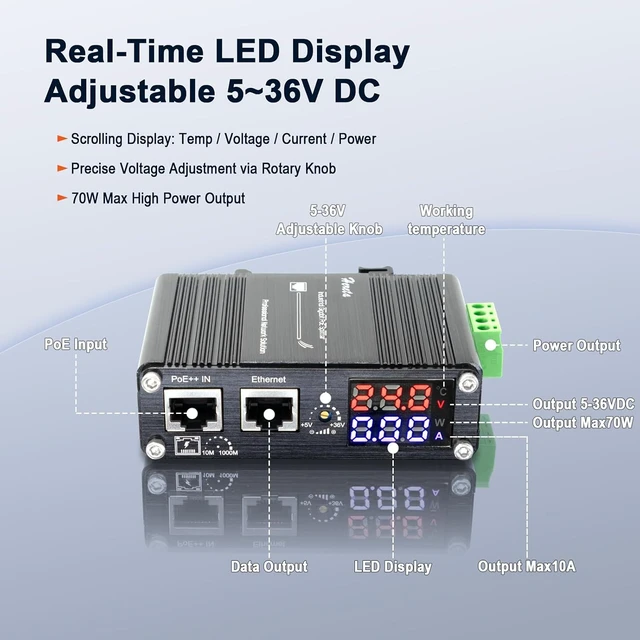

LED Display supports scrolling display of temperature()+power(W) and voltage(V)+current(A)

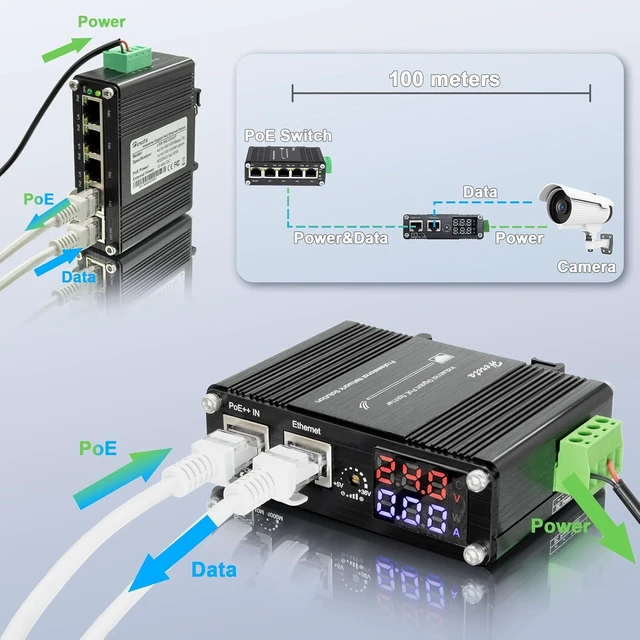

Splits power and data from PoE Input
1 RJ-45 PoE Port (Data & Power In), 1 RJ-45 Port (Data Out)
2 DC Output (5~36VDC adjustable,with a rotary knob)

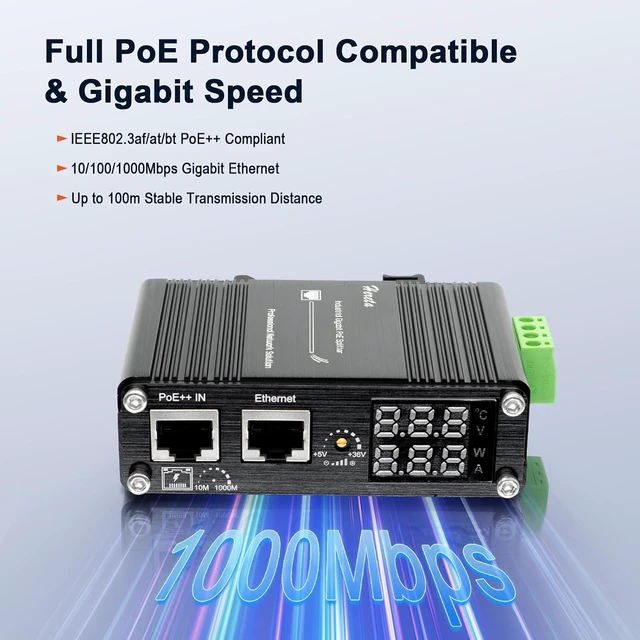

Support IEEE802.3af/at/bt PoE++, Support 10/100/1000Base-T, Distance up to 100 meters
Short-circuit protection for power output

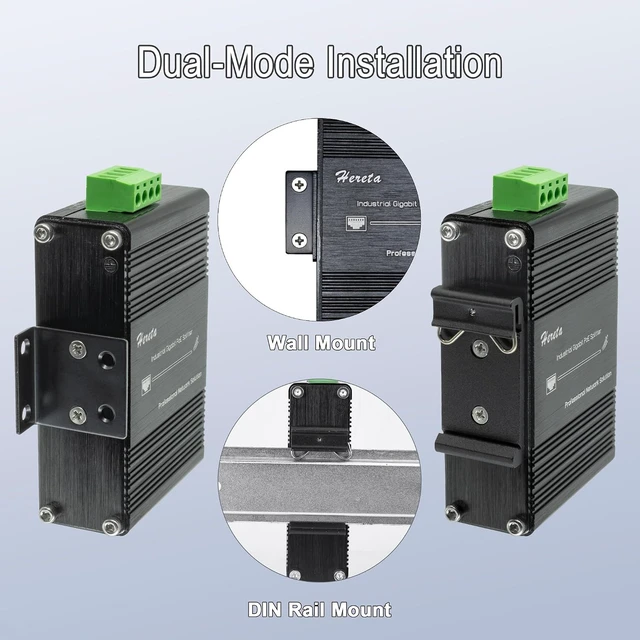

Support DIN-Rail & Wall-mount installation
Extensive LED indicators for PoE diagnostics

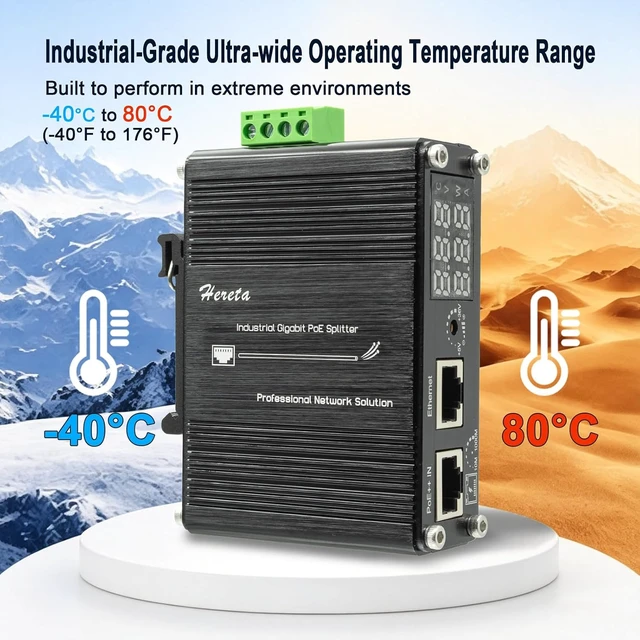

IP40 rugged metal housing and fanless, Wide operating temperature -40 ~ 80°C,
No circuit short-circuit risks occur in damp basements, outdoor surveillance stations, coastal humid areas and semi-enclosed equipment cabinets.
Adopted IP40 ingress protection rating, efficiently blocks fine dust, particulate debris and foreign objects from penetrating the device interior.
Professional lightning surge protection module, perfectly to suburban monitoring projects, remote field equipment and areas prone to thunderstorms.
Perfectly suited for bumpy on-board equipment, roadside monitoring cabinets, factory assembly lines, mining sites, rugged environments.
1Various fields2Multi-scenario3Industrial Grade42 Installation Methods Products Features: Wide Humidity Secure Circuit Safeguard 6KV Surge Lightning Protection Shock and VibrationResistant
This plug-and-play unit requires no software or tools for configuration. It reliably delivers both data and power over the full 100-meter Ethernet distance. Featuring a rugged, fanless metal enclosure, comprehensive protection circuits, and clear diagnostic LEDs, the LNK-INS901-LED ensures flexible installation, operational simplicity, and high reliability in a wide range of industrial applications.
LED Display supports scrolling display of temperature()+power(W) and voltage(V)+current(A)
Splits power and data from PoE Input
1 RJ-45 PoE Port (Data & Power In), 1 RJ-45 Port (Data Out)
2 DC Output (5~36VDC adjustable,with a rotary knob)
Support IEEE802.3af/at/bt PoE++, Support 10/100/1000Base-T, Distance up to 100 meters
Short-circuit protection for power output
Support DIN-Rail & Wall-mount installation
Extensive LED indicators for PoE diagnostics
IP40 rugged metal housing and fanless, Wide operating temperature -40 ~ 80°C,
No circuit short-circuit risks occur in damp basements, outdoor surveillance stations, coastal humid areas and semi-enclosed equipment cabinets.
Adopted IP40 ingress protection rating, efficiently blocks fine dust, particulate debris and foreign objects from penetrating the device interior.
Professional lightning surge protection module, perfectly to suburban monitoring projects, remote field equipment and areas prone to thunderstorms.
Perfectly suited for bumpy on-board equipment, roadside monitoring cabinets, factory assembly lines, mining sites, rugged environments.
1Various fields2Multi-scenario3Industrial Grade42 Installation Methods Products Features: Wide Humidity Secure Circuit Safeguard 6KV Surge Lightning Protection Shock and VibrationResistant
