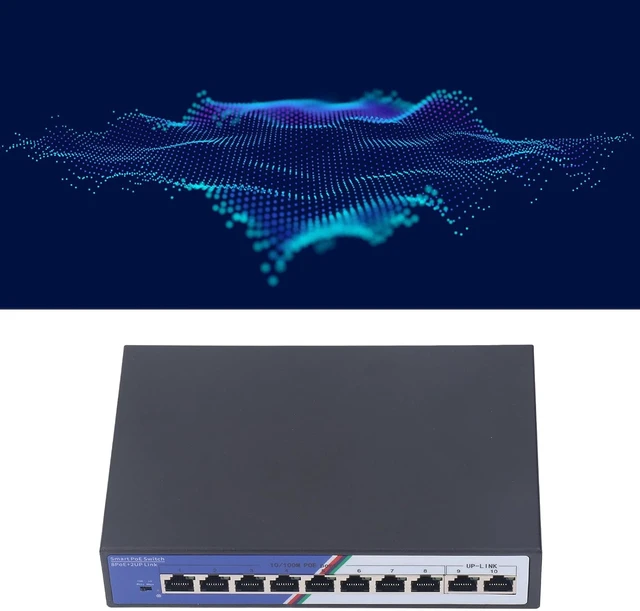

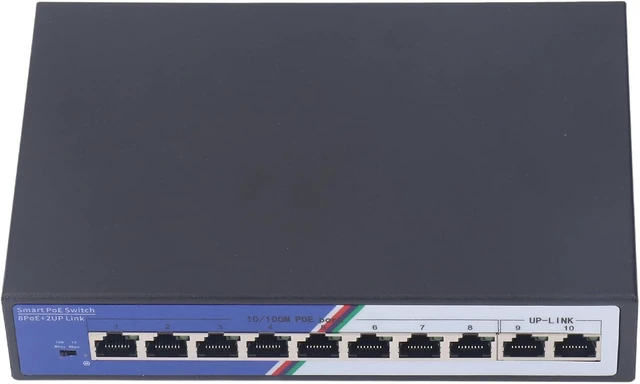

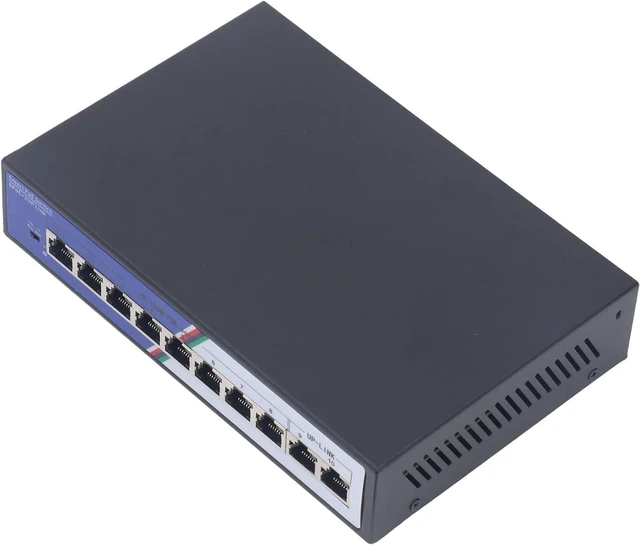

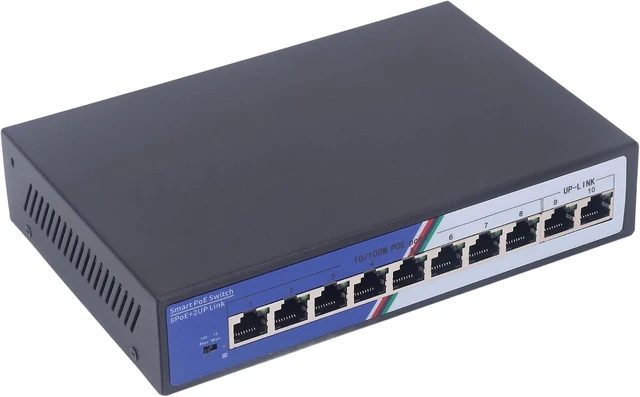

2Gbps Switching Capacity Unmanaged 10 Port PoE Network Switch, with 8 Port 10 100 Base TX Power Over Ethernet and 2 Port Uplink, 4KV Protection, 100 to 240V US Plug
- Port Configuration: Features eight 10 100 Base TX PoE ports for data and power transmission alongside two 10 100 Base T uplink ports for network connectivity.
- Extended Transmission: Offers a normal mode for standard switching and an extended mode capable of transmitting data up to 820 feet or 250 meters for long range applications.
- Safety Features: Built with 4KV protection and short circuit protection; internal power supply includes overvoltage and temperature safeguards for stable operation.

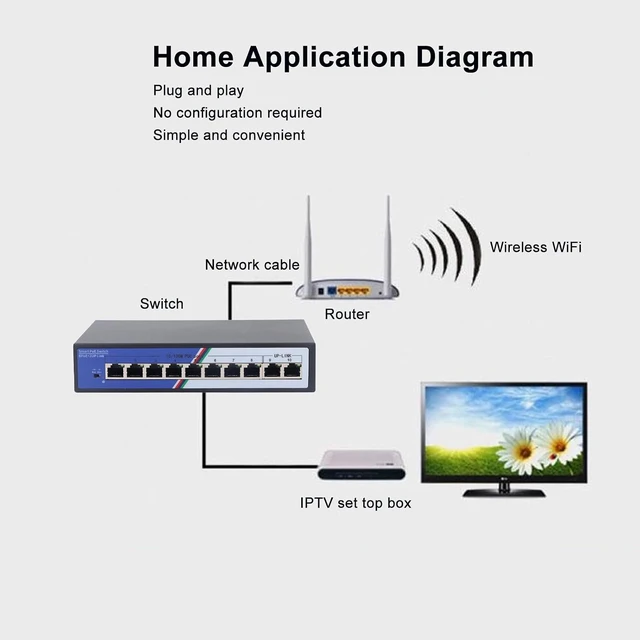

- Wide Compatibility: Functions with computers, printers, network cameras, smart televisions, and game consoles for versatile industrial or commercial network use.
- Unmanaged Connectivity: Features a 2Gbps switching capacity with plug and play functionality requiring no software configuration or complex setup for network integration.
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Item Type: 10 Port Gigabit Ethernet Switch
Material: ABS
Model: ZX G0802FNC
Chip Solution: RTL8309+RTL8305
Standards Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network Media:
10BASE T: Unshielded Cat3, Cat4, Cat5 twisted pair (maximum 100m)
100BASE TX 100BASE T: Unshielded Cat5, Cat5e, or higher twisted pair (maximum 100m)
Fixed Ports:
8 x 10 100 Base TX Ethernet Ports (Data Power)
2 x 10 100 Base T Ethernet Ports (Data)
Forwarding Mode: Store and Forward
Media Access Control Address Capacity: 1K
Switching Capacity: 2Gbps
Packet Forwarding Rate: 1.448Mpps
Port Protection: 4KV
Indicator Lights:
Each Unit:
Power System (Power: Green light) is connected to the load, the indicator light status is always on
Each Port:
Link Activity (Link Act: Green light) is connected to the load, the indicator light status is flashing
POE Power Supply: 1-8 ports compatible with 802.3af at PoE (1/2)+, (3/6)-
Port Features:
OFF: Normal mode. All ports can communicate with each other and can be used as ordinary unmanaged PoE switches
ON: Extended mode. The longest transmission distance of the switch is 250 meters
Operating Temperature: -10 to 70 (32 to 127)
Storage Temperature: -40 to 85 (-97 to 142)
Operating Humidity: 10% to 90% non condensing
Storage Humidity: 5% to 95% non condensing
Package List
1 x 10 Port Gigabit Ethernet Switch
1 x Power Adapter
1 x User Manual
