for Office and Home Networking Systems, Ethernet POE Switch 18 Port Network Hub with 16 10 100M Ports and 2 10 100 1000M Ports, 7.2 Gbps Switching Capacity, 100 240V US Plug

Item Type: Ethernet Switch
Material: ABS

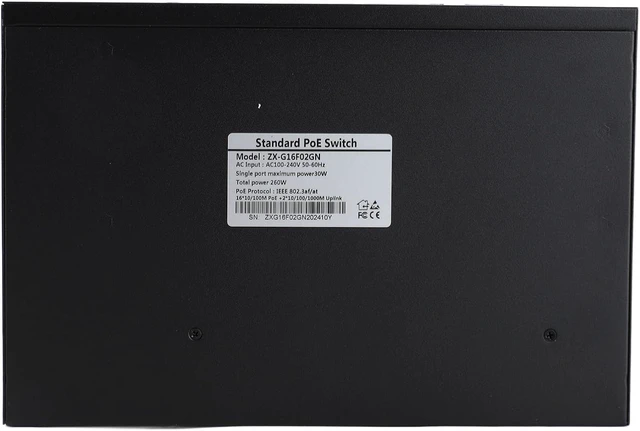

Model: ZX G16F02GN
Standard Protocol: IEEE 802.3af at 16 x 10 100M PoE + 2 x 10 100 1000M Uplink
Chip Solution: RTL8367S + RTL8324E
Standards Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network Medium:
10BASE T: Unshielded Cat3, Cat4, Cat5 twisted pair (maximum 100m)
100BASE TX 100BASE T: Over unshielded Cat5, Cat5e twisted pair (maximum 100m)
1000BASE TX 1000BASE T: Over Cat6e twisted pair (maximum 100m)
Fixed Port: 16 x 10 100 Base TX Ethernet Port (Data/Power), 2 x 10 100 1000 Base T Ethernet Port (Data)
Forwarding Mode: Store and forward
Media Access Control Address Table: 4K
Switching Capacity: 7.2Gbps
Packet Forwarding Rate: 5.36Mpps
Port Guard: 4KV
Indicator Light:
Each Unit:
Power System (Power: Green light) is connected to the load, the indicator light status is always on
Each Port:
Link Activity (Link Act: Green light) is connected to the load, the indicator light status is flashing
POE Power Supply: 1-16 ports compatible with 802.3af at PoE power supply (1/2)+, (3/6)-
Port Features:
OFF: Normal mode. All ports can communicate with each other and can be used as ordinary unmanaged PoE switches
ON: Extended mode. The longest transmission distance of the switch is 250 meters
Operating Temperature: -10 to 70 (32 to 127)
Storage Temperature: -40 to 85 (-97 to 142)
Operating Humidity: 10% to 90% non condensing
Storage Humidity: 5% to 95% non condensing

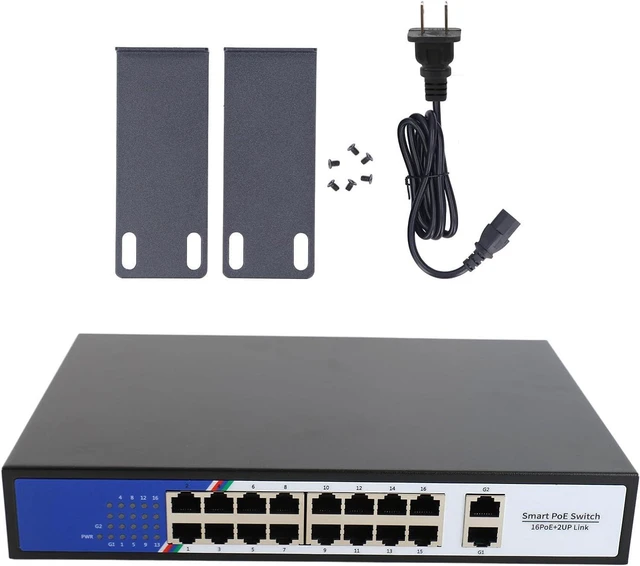

Package List
1 x Ethernet Switch
1 x Power Adapter
1 x User Manual
6 x Screws
2 x Accessories
