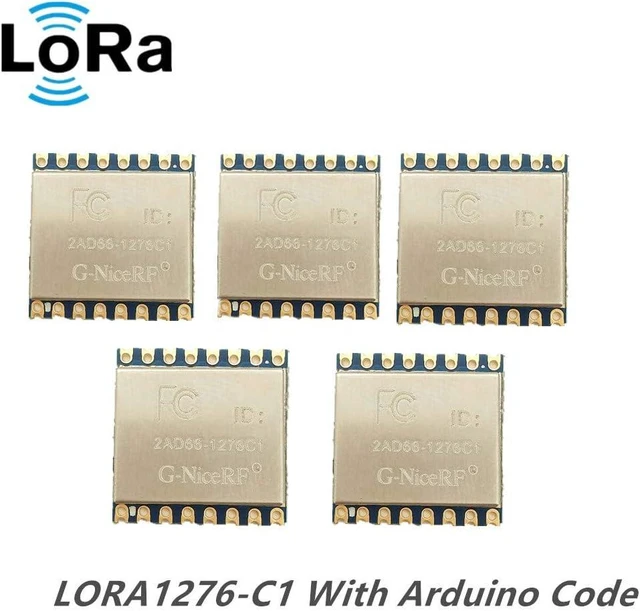

LoRa1276-C1 Long Range Wireless Transceiver Module x 5PCS

Lora1276-C1 integrates Semtech RF transceiver chip SX1276, which adopts LoRa TM Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance. This module is 100mW and ultra small size, widely used in AMR,remote industrial control filed.
Feature:
Frequency Range: 915 MHz(Customizable:137~1020MHz )
Sensitivity up to -139dBm @Lora
Maximum output power: 20 dBm
13mA@receiver mode
Sleep current <200 nA
Data transfer rate: @FSK,1.2-300 Kbps
@Lora TM, 0.018-37.5 Kbps
Lora TM, FSK, GFSK & OOK Modulation mode
Built-in ESD Protection
127 dB Dynamic Range RSSI
Packet engine up to 256 bytes with FIFO and CRC
Hopping frequency
Built-in temperature sensor and low battery indicator
Excellent blocking immunity
Operating Temperature Range-40 ~ + 85 °C
Application:
Remote meter reading
Industrial control
Home automation remote sensing
Toys control
Sensor network
Tire pressure monitoring
Health monitoring
Wireless PC peripherals
