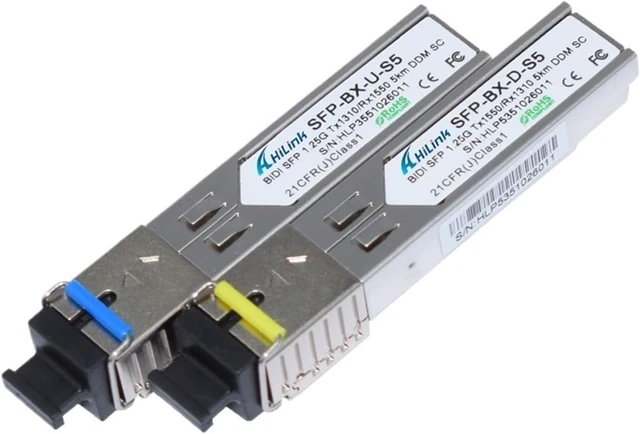

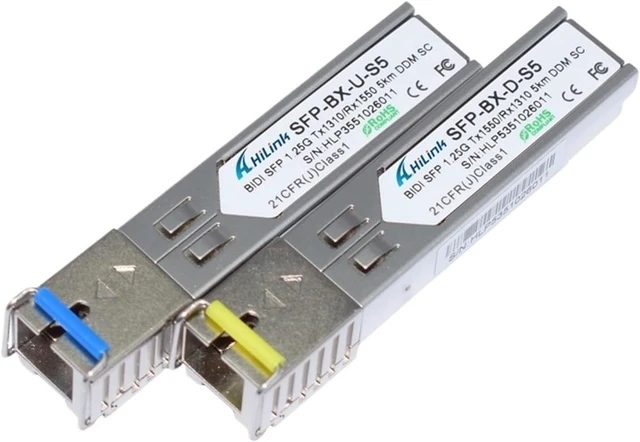

1000BASE-BX Single Fiber 1G BiDi Mini GBIC LC/SC 1.25G 1310nm/1550nm 5km WDM SFP (Color : 5pairs LC Connector)

1.25G 1310nm/1550nm 5km BiDi SFP Transceiver

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are compliant and lead-free.

It primarily enables bandwidth 1.25G optical links over single-mode fiber terminated with LC/SC simplex connectors and can be used in commercial temperature environment for interoperability with TTL Logic Interface.

Features:

1.25Gbps Data transfer rate

Tx1310nm/Rx1550nm and Tx1550nm/Rx1310nm BiDi SFP

Distance up to 5km over SMF

Single 3.3V Power Supply and TTL Logic Interface

-Pluggable SFP

Simplex SC/LC (Optional)

Compliant with SFP MSA

Digital Diagnostic Monitoring

Operating Case Temperature: 0-70 Temp

Applications:

Fiber Channel Links

WDM Application
Gigabit Ethernet

Other Optical Links

FTTX Application
