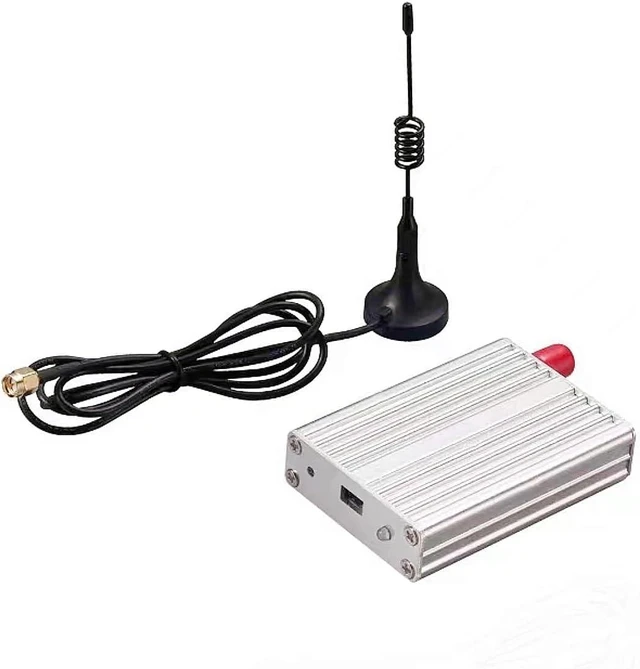

SV653 500mW 3km Long Range USB Port Wireless Transceiver RF Module X 2 Sets (915 Mhz)

Package:
2 pcs x SV653 RF module
2 pcs x Antenna
1 pcs x USB cable

SV653 is a high-power USB interface integrated wireless data transmission module, using high-performance Si4432 RF chip. Low receiver sensitivity, coupled with industry-leading output power of 500mW guarantee expand the scope and improve the link performance. Module provides a multi-band multi-channel and network ID to reduce interference during transmission to improve the transmission performance. Users can modify the software or online via PC serial port settings and the RF parameters.

Feature:
*3000m RF line-in-sight distance @ 1.2kbps
*433/490/868/915 MHz
*40 channels
*4 bytes net ID
*2 bytes node ID
*Multiple air data rate
*GFSK modulation
*Antenna match automatically and bi-direction switch control
*Support Serial port parameter setting
*USB port
*Sensitivity: -121 dBm
*Max output power: 500 mW
*Voltage: 4.5 ~ 5.5 V
*Temperature: -40 ~ +85 °C

Application:
*Remote telemetry
*Auto meter reading
*Security systems
*Data logger
*Wireless data communication
*Building residential automation and security
*Healthy monitoring
*Wireless PC peripherals
*Access Control System
*Robot control
