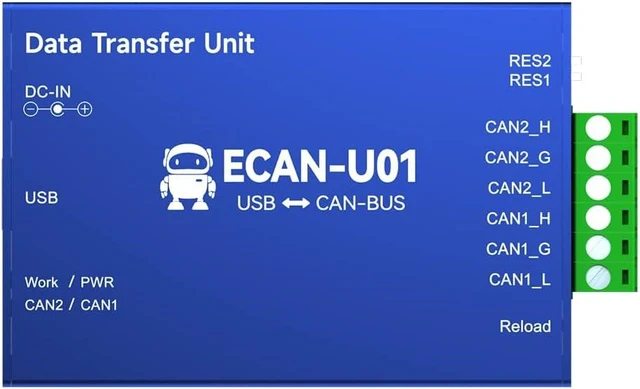

CAN to USB Protocol Converter ECAN-U01 CAN2.0 USB2.0 CANBUS 2-Way Transparent Transmission Communication Transceiver Relay CAN Commissioning Interface
- ECAN-U01 is a high-performance CAN-bus communication analyzer with integrated 2 - way CAN interface . The analyzer is compatible with the USB2.0 bus full-speed specification, and the PC terminal can be quickly connected to the CAN-bus network through the USB interface to form data processing in the field of fieldbus laboratories, industrial control, intelligent communities, automotive electronic networks and other CAN-bus network fields. CAN-bus network control node for data acquisition
- ECAN-U01 is a powerful tool for CAN-bus product development and CAN-bus data analysis. At the same time, it has the characteristics of small size, plug and play, etc. It is also the best choice for portable system users.
- ECAN-U01 is powered by DC socket and has its own B -type USB interface; each channel has a built-in 120 ohm optional resistance, which is controlled by a DIP switch, which is convenient to use; integrated CAN interface electrical isolation protection module to avoid instantaneous ove
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features

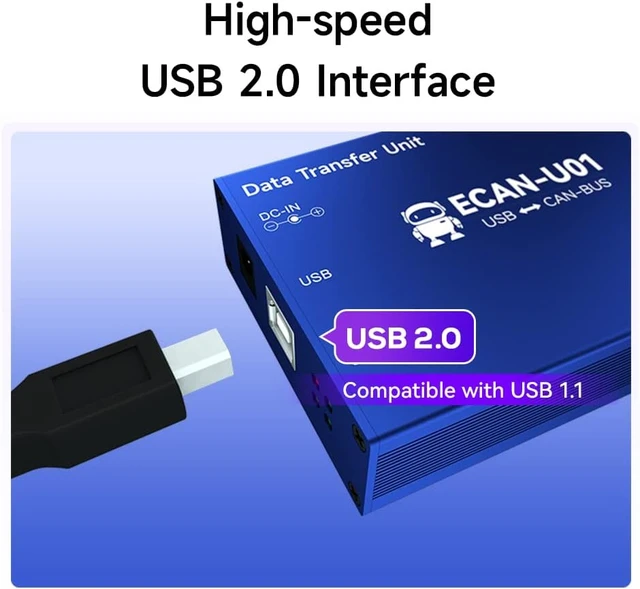

PC interface conforms to the USB2.0 full-speed specification and is compatible with USB1.1;
2 - way CAN-bus interface , use plug-in terminal wiring method;
CAN2.0A and CAN2.0B frame format, in line with ISO /DIS 11898 specification;
The baud rate of CAN-bus communication can be freely programmable between 5Kbps~1Mbps;
Use USB bus power supply, or use external power supply (DC8-28V);
CAN-bus interface adopts electrical isolation, isolation module insulation voltage: DC 5000V;
Received data flow: 17000fps;
The time stamp accuracy of the received message at the CAN end can reach 1us;
Support remote upgrade;
Support testing software;
Operating temperature range: -40 ~+85 .
PC interface conforms to the USB2.0 full-speed specification and is compatible with USB1.1;
2 - way CAN-bus interface , use plug-in terminal wiring method;
CAN2.0A and CAN2.0B frame format, in line with ISO /DIS 11898 specification;
The baud rate of CAN-bus communication can be freely programmable between 5Kbps~1Mbps;
Use USB bus power supply, or use external power supply (DC8-28V);
CAN-bus interface adopts electrical isolation, isolation module insulation voltage: DC 5000V;
Received data flow: 17000fps;
The time stamp accuracy of the received message at the CAN end can reach 1us;
Support remote upgrade;
Support testing software;
Operating temperature range: -40 ~+85 .
