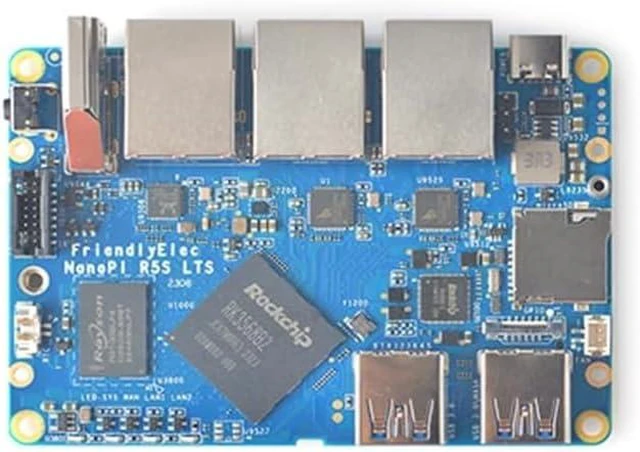

FriendlyElec NanoPi R5S-LTS OpenWrt Router RK3568 4GB 64GB Dual 2.5GbE (Bare Board)
- Open-Source Mini Router Powered by the RK3568B2 platform, the NanoPi R5S-LTS is a compact open-source router and single board computer built for soft routing, lightweight NAS and IoT gateway projects.

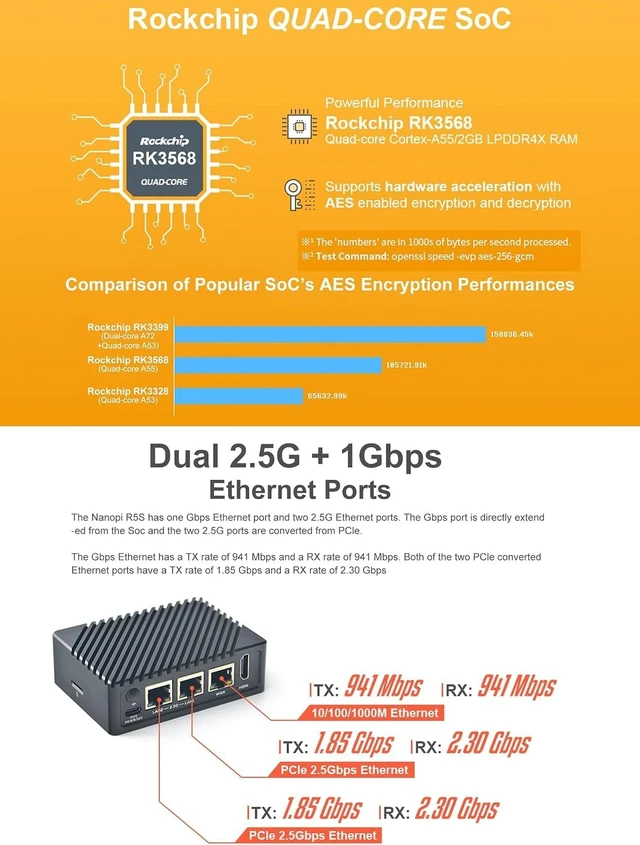

- RK3568B2 Core Specs Features a Quad-Core ARM Cortex-A55 CPU up to 2.0GHz with Mali-G52 GPU and 0.8T NPU, 4GB LPDDR4X memory and 64GB eMMC 5.1 storage plus a microSD slot expandable to 128GB.

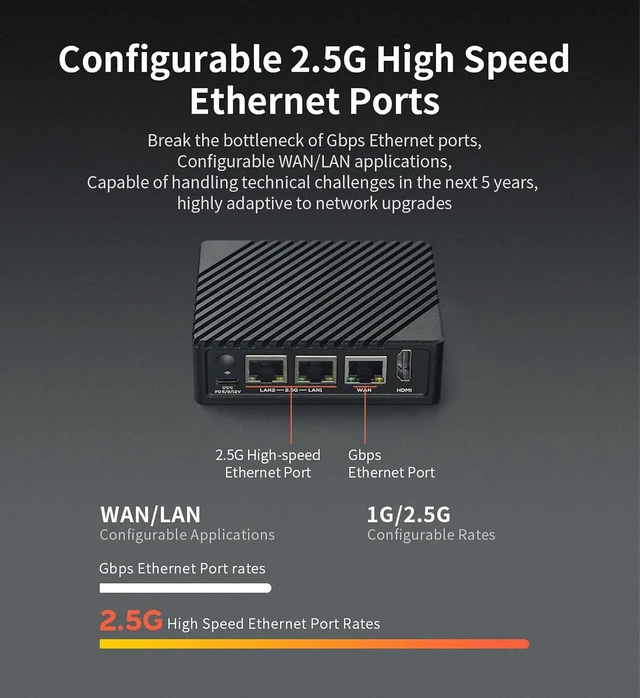

- Triple Ethernet & Rich I/O Equipped with 3 Ethernet ports (1x Gigabit + 2x 2.5GbE, 1 WAN and 2 LAN), HDMI 2.0 4K video output, 2x USB 3.0 Type-A, M.2 M-Key NVMe slot, 12-pin GPIO and Debug UART for flexible expansion.

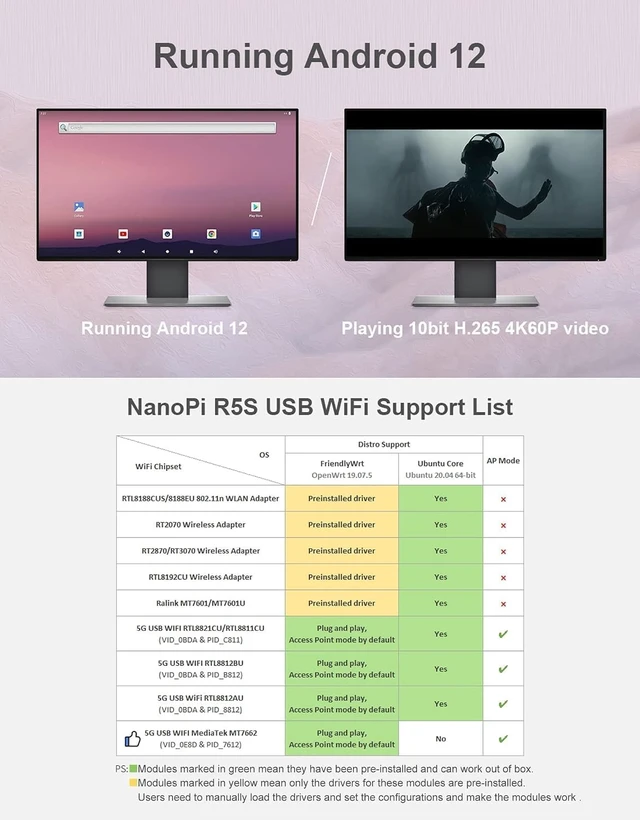

- Broad OS Compatibility Ships ready for FriendlyWrt (OpenWrt-based) and also supports Debian, Ubuntu, Android, Buildroot and more; an external USB wireless adapter can be added for wireless connectivity.
- Compact Case & Efficient Power Housed in a CNC aluminum case measuring 68x94.5x30mm and weighing 263.5g, it draws power via Type-C PD (5V/9V/12V) and runs reliably fro
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

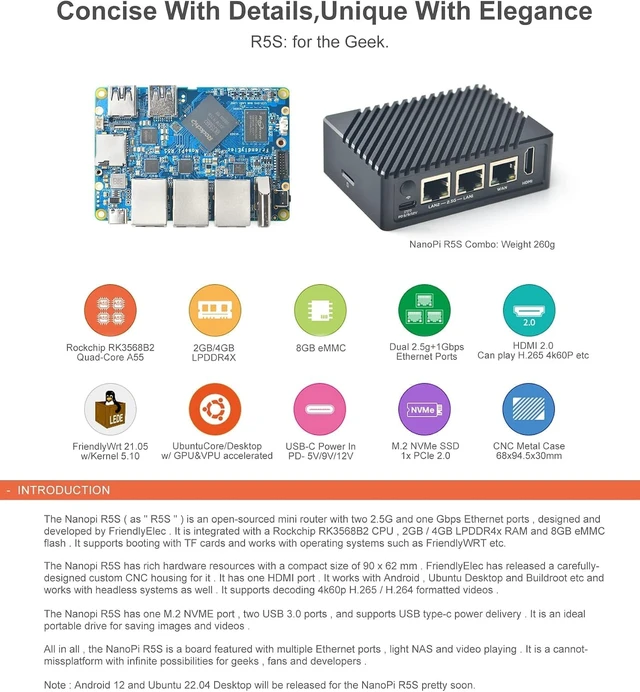

Product Overview The FriendlyElec NanoPi R5S-LTS is an open-source mini router and single board computer built around the RK3568B2 platform, ideal for soft routing, lightweight NAS, IoT gateways and edge development.
Key Specifications SoC: RK3568B2, Quad-Core ARM Cortex-A55 up to 2.0GHz GPU/NPU: Mali-G52 GPU with 0.8T NPU Memory: 4GB LPDDR4X Storage: 64GB eMMC 5.1, microSD slot up to 128GB Network: 1x Gigabit + 2x 2.5GbE Ethernet (1 WAN, 2 LAN) Video: HDMI 2.0, 4K@60fps H.265/H.264/VP9 decode USB: 2x USB 3.0 Type-A, 1x USB 2.0 header, 1x Type-C PD power Expansion: M.2 M-Key NVMe, 12-pin GPIO, Debug UART Enclosure: CNC aluminum case, 68x94.5x30mm, 263.5g Power: USB-C PD 5V/9V/12V, 0-70C operation
Applications & Use Cases Deploy as a multi-gig soft router, firewall or VPN gateway, a compact NAS with NVMe storage, or a smart-home IoT hub. The quad-core ARM platform and open firmware also suit developers building Debian, Ubuntu or Android-based networking projects and Docker containers.
