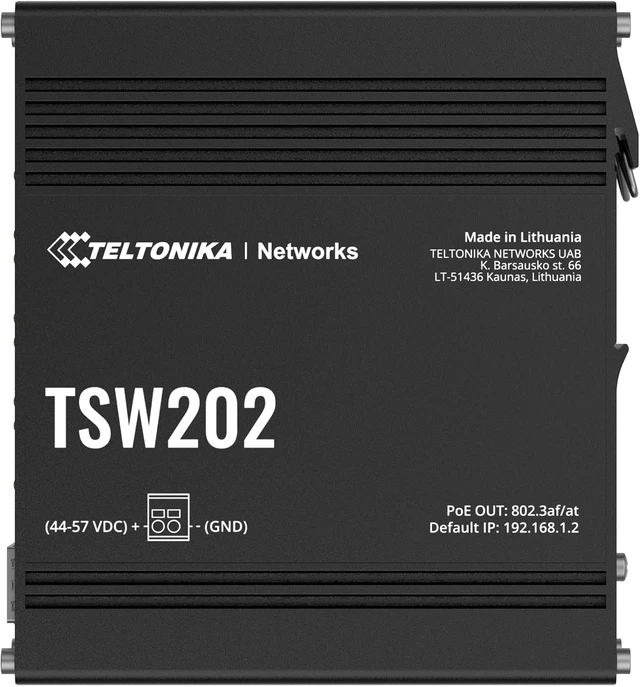

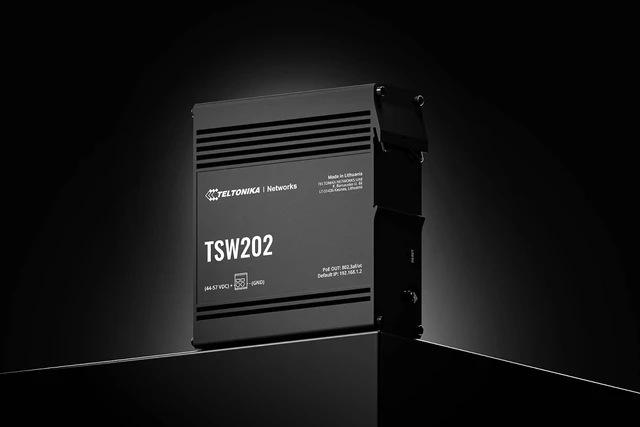

Teltonika TSW202 TSW202000001 Managed PoE+ Ethernet Switch, 8 Gigabit Ethernet Ports, 2 SFP Ports, Layer 2 with Layer 3 Features, PROFINET Certified, DIN Rail Mountable
- Managed PoE+ Ethernet switch Teltonika TSW202 industrial managed switch with 8 Gigabit Ethernet ports and 2 SFP ports for reliable industrial, enterprise, and surveillance networking applications
- PROFINET certified Supports PROFINET for seamless integration with industrial automation systems, PLCs, HMIs, controllers, and factory communication networks
- 8 Gigabit PoE+ ports IEEE 802.3af and 802.3at compliant PoE+ ports deliver both power and high-speed network connectivity for IP cameras, wireless access points, and industrial devices
- Advanced Layer 2 management with Layer 3 features Supports VLAN, QoS, port management, static routing, and additional network control features for optimized traffic management and secure deployments
- Industrial DIN rail design Compact rugged aluminum housing with DIN rail mounting and wide voltage input support for dependable operation in industrial cabinets and demanding environments
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including EtherNet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.
RAM 128MB, DDR3 Flash storage 16MB serial flash Powering options 2-pin industrial DC power socket, 7 - 57 VDC Input voltage range for PoE 44 - 57 VDC Power consumption Idle: < 3 W / Max: 8 W / PoE Max: 240 W PoE standart 802.3af and 802.3at (Max 30 W per port, total power budget 248 W) Status LEDs 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs Ethernet 8 x RJ45 ports, 10/100/1000 Mbps, PoE ports: Port 1 - 8 SFP 2 x SFP ports Ingress protection rating IP30 Operating temperature -40 °C to 75 °C Dimensions (W x H x D) 132 x 44.2 x 122.2 mm Weight 610 g Mounting options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) Bandwidth (Non-blocking) 20 Gbps Packet buffer 512 KB MAC address table size 8K entries Jumbo frame support 10000 bytes For enhanced network infrastructure security, many organizations implement VLANs. This requires advanced network switches offering granular control extending to endpoint devices. Managed switches are the ideal solution, enabling network administrators to establish multiple VLANs, effectively segregating departments while maintaining reachability over each end device. Managed switches like the TSW202 and TSW212 support VLAN tagging and offer QoS and scheduling features for prioritized data flow management and automated network management tasks.
Managed Poe+ Ethernet Switch Hardware Performance statistics Securing Networks With VLAN Tagging In Managed Switches
RAM 128MB, DDR3 Flash storage 16MB serial flash Powering options 2-pin industrial DC power socket, 7 - 57 VDC Input voltage range for PoE 44 - 57 VDC Power consumption Idle: < 3 W / Max: 8 W / PoE Max: 240 W PoE standart 802.3af and 802.3at (Max 30 W per port, total power budget 248 W) Status LEDs 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs Ethernet 8 x RJ45 ports, 10/100/1000 Mbps, PoE ports: Port 1 - 8 SFP 2 x SFP ports Ingress protection rating IP30 Operating temperature -40 °C to 75 °C Dimensions (W x H x D) 132 x 44.2 x 122.2 mm Weight 610 g Mounting options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) Bandwidth (Non-blocking) 20 Gbps Packet buffer 512 KB MAC address table size 8K entries Jumbo frame support 10000 bytes For enhanced network infrastructure security, many organizations implement VLANs. This requires advanced network switches offering granular control extending to endpoint devices. Managed switches are the ideal solution, enabling network administrators to establish multiple VLANs, effectively segregating departments while maintaining reachability over each end device. Managed switches like the TSW202 and TSW212 support VLAN tagging and offer QoS and scheduling features for prioritized data flow management and automated network management tasks.
Managed Poe+ Ethernet Switch Hardware Performance statistics Securing Networks With VLAN Tagging In Managed Switches
