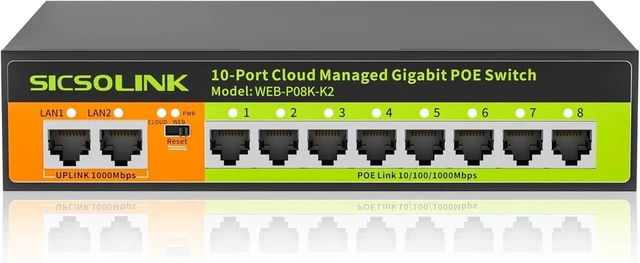

10-Port Gigabit PoE+ Switch, 8×PoE+ 120W 30W/Port, 2×Uplink, Cloud/Web Managed, VLAN, Fanless Metal, for IP Cameras, Home Office, Small Business
- [Full Gigabit POE Switch] This 10-port switch offers a full gigabit speed, with POE ports and 2 uplinks,easy for scalable.Equipped with Power over Ethernet technology, this switch delivers both data and power through a single cable. Compatible with IEEE802.3AT/AF standards, it offers up to 30W per port and a total of 120W for the entire device.
- [Cloud Managed Switch] This switch offers flexible management options: 1) Web Managed includs Local management via a fixed IP without internet connection or through a router with DHCP for IP assignment; 2) Free cloud management by downloading a secure app, allowing monitoring and management of the switch and connected devices on mobile phones, iPad, or laptops anytime, anywhere.
- [Power Saving Features] The PoE schedule function allows you to set specific time periods for the switch to automatically turn on or off power supply, reducing device energy consumption.
- [Robust Security] With VLAN functionality, you can segment your network into log
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
1POE Restart 2Power-saving Feature3Power Protect4AI Watchdog1VLAN2Full Gigabit Ports 3Port Rate Lmiting4Premuium Performance1Home Network Managed2Small Business3School Computer Lab Does this switch support PoE+ power delivery?
This is an IEEE 802.3af/at compliant PoE+ switch, 30W max per port (120W total). Usually 15.4W, it can intelligently negotiate up to 30W with PDs in Power Supply Adaptive Mode.
How to enable the Power Supply Adaptive mode?
Log in: Access the management interface.
Find Security: Locate and open the Security section.
Power Matching: Find Power supply Adaptive and click the Off button.
Turn On: Select On to activate the feature.
Save: Click Save to confirm.
Is a converter needed when used in the US?
No, a voltage converter is not required. This switch is designed with a wide-range voltage input of 100-240V, which is fully compatible with the standard 120V electrical system in the United States. You can plug it in directly.
Model WEB-P08K-K2 Product Name 10 Port Gigabit POE Cloud Managed switch POE Ports RJ45 Ports 1-8 (10/100/1000Mbps) Ethernet Ports RJ45 Ports 9-10 (10/100/1000Mbps) Input Voltage AC 100-240V Power Supply DC 48-55V 120W VLAN Support 802.1Q VLANMTU-VLANPort VLAN MAC Address 2K Switching Capacity 20Gbps Network Protocol IEEE 802.3u(100Base-TX) IEEE802.3x(Flow control) IEEE802.3ab(1000Base-TX)IEEE802.3bz(2.5GBASE-T) POE Protocol IEEE 802.3AF15.4wIEEE 802.3AT(30w) Network Medium 1000Base-T:Cat5e or above UTP/STP(100m) 100Base-TX:Cat 5 or above UTP/STP(100m) 10Base-TX:Cat5e or above UTP/STP(250m) Product Dimension 190mm*140mm*43mm / 7.48in*5.51in*1.69in DIP Switch (Cloud) Remote management mode, enable local WEB management and APP remote management functions. DIP Switch (WEB) Local management mode, only enable local WEB management.(Desktop client or WEB version) DIP Switch (RESET) Move the switch to CLOUD and then back to WEB within 1 second to reboot and reset the device to factory settings. Does this switch support PoE+ power delivery?
How to enable the Power Supply Adaptive mode?
Is a converter needed when used in the US?
Product Spectifications
This is an IEEE 802.3af/at compliant PoE+ switch, 30W max per port (120W total). Usually 15.4W, it can intelligently negotiate up to 30W with PDs in Power Supply Adaptive Mode.
How to enable the Power Supply Adaptive mode?
Log in: Access the management interface.
Find Security: Locate and open the Security section.
Power Matching: Find Power supply Adaptive and click the Off button.
Turn On: Select On to activate the feature.
Save: Click Save to confirm.
Is a converter needed when used in the US?
No, a voltage converter is not required. This switch is designed with a wide-range voltage input of 100-240V, which is fully compatible with the standard 120V electrical system in the United States. You can plug it in directly.
Model WEB-P08K-K2 Product Name 10 Port Gigabit POE Cloud Managed switch POE Ports RJ45 Ports 1-8 (10/100/1000Mbps) Ethernet Ports RJ45 Ports 9-10 (10/100/1000Mbps) Input Voltage AC 100-240V Power Supply DC 48-55V 120W VLAN Support 802.1Q VLANMTU-VLANPort VLAN MAC Address 2K Switching Capacity 20Gbps Network Protocol IEEE 802.3u(100Base-TX) IEEE802.3x(Flow control) IEEE802.3ab(1000Base-TX)IEEE802.3bz(2.5GBASE-T) POE Protocol IEEE 802.3AF15.4wIEEE 802.3AT(30w) Network Medium 1000Base-T:Cat5e or above UTP/STP(100m) 100Base-TX:Cat 5 or above UTP/STP(100m) 10Base-TX:Cat5e or above UTP/STP(250m) Product Dimension 190mm*140mm*43mm / 7.48in*5.51in*1.69in DIP Switch (Cloud) Remote management mode, enable local WEB management and APP remote management functions. DIP Switch (WEB) Local management mode, only enable local WEB management.(Desktop client or WEB version) DIP Switch (RESET) Move the switch to CLOUD and then back to WEB within 1 second to reboot and reset the device to factory settings. Does this switch support PoE+ power delivery?
How to enable the Power Supply Adaptive mode?
Is a converter needed when used in the US?
Product Spectifications
