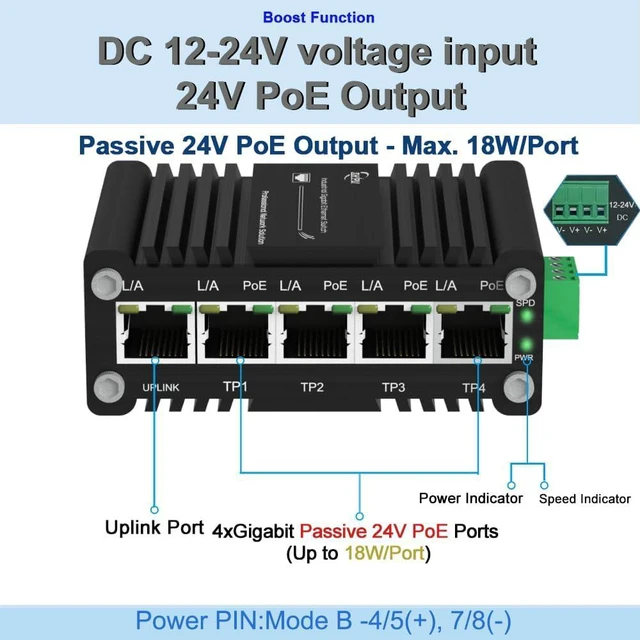

Industrial 5-Port Gigabit Passive PoE Switch, Support DC12V-24V to DC24V PoE, 4×24V/18w PoE Ports, Heavy Metal Case, DIN Rail Mount, Compact IP40, Ideal for Solar Power/RV Truck/VoIP Systems

This is a fully gigabit industrial PoE switch with 5 Ethernet adaptive ports. 1-4 ports support passive PoE and single port PoE output power of up to 18W. Support IEEE802.3x full duplex flow control and Backpressure half duplex flow control. Support non blocking line speed forwarding.
Unmanaged models, plug and play, no configuration required, simple and convenient to use. Users can easily understand the device's working status through the power indicator (PWR), speed rate indicator (SPD), network port status indicator (L/A), and PoE working indicator (PoE).
The operating temperature of this switch is -40~+75 (-40~167) and the lightning protection level of the port is 6KV. Designed with low power consumption, no fan and no noise. The IP40 brushed aluminum alloy metal shell provides excellent heat dissipation, ensuring stable product operation.
As a PoE power supply device, it can be used for 24v passive devices and provide power to them, such as wireless APs, PoE cameras and voip phones. It does not detect the powered devices, supplies power directly, easy to burn out your devices, so you need to know your own equipment before purchasing.
Industrial 5 ports PoE Ethernet switch Gigabit Unmanaged Mini Switch
The mini gigabit PoE switch supports gigabit Ethernet PoE ports and gigabit uplink port, which facilitates flexible networking for users and meets various networking needs in various scenarios.
It is suitable for industrial scenarios such as intelligent transportation, rail transit, power industry, mining, petroleum, maritime transportation, metallurgy, and green energy construction to form an economically efficient, stable, and reliable communication network.
Forwarding mode Store and forward/Full line speed Packet forwarding rate 0.01488Mpps (10Mbps), 0.1488Mpps (100Mbps), 1.488Mpps (1000Mbps) Backplane bandwidth 10Gbp s/non-blocking Packet forwarding rate@64bytes 7.44Mpps Packet buffer 1M Jumbo frame 9K Bytes MAC address table 2K Power supply pin 4/5(+), 7/8(-)Mode B 4pin PoE total output Up to 70w PoE budget Input voltage 12~24VDC (4-pin Phoenix terminal), power supply needs to be purchased separately Power consumption <75Wnon-PoE<5W Voltage overload Automatic reset UTP transmission 100BASE-TX: Cat5 UTP or above (100 meter); 1000BASE-T: Cat5e UTP or above (100 meter) Lightning protection 4KV 8/20us Standard protocol IEEE802.3 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3x Full-Duplex Flow Control; IEEE802.3az Energy Efficient Ethernet (EEE) WIDELY APPLICATIONS Specifications
