Industrial 2 SFP + 5-Port Gigabit PoE Passthrough Switch
- 1 PD + 4 PSE, 95W PoE Input, 71W Output, IEEE802.3af/at/bt Support, DIN Rail PD Switch with 100/1000X SFP Slot
- 10/100/1000Mbps RJ45 Ports - The industrial switch is equipped with one IEEE802.3bt PD PoE++ port with 95W power input, four PSE IEEE802.3af/at/bt PoE+ output ports, PoE power budget up to 71W.
- Open SFP Slot - Ethernet switch with PoE passthrough supports 1000Base-X or 100Base-FX auto detection, compatible with multi-mode (MMF) and single-mode fiber (SMF), adapt to multiple cabling scenarios.

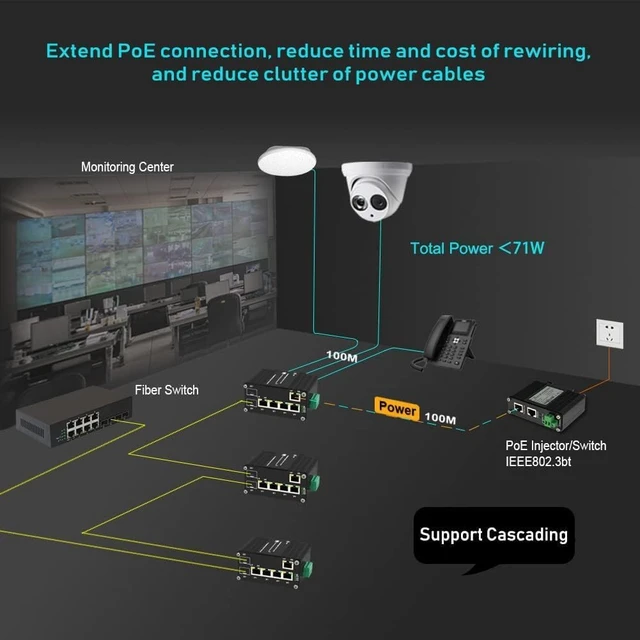

- PoE Passthrough Technology - The din rail switch can extend the PoE connection, increase distance between PoE source and device from 100m to 200m, reduce time and cost of rewiring, and reduce clutter of power cables.

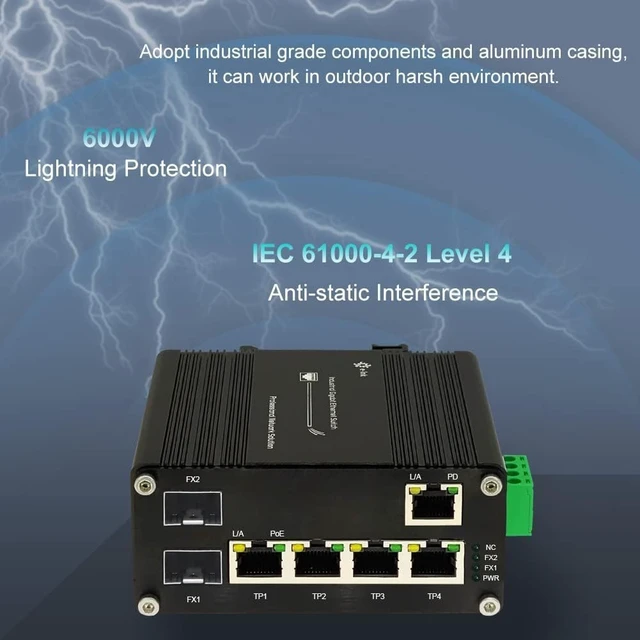

- Industrial Grade Design - The small PoE switch use industrial grade components and aluminum casing, it can work at wide range temperature -40°C to 80°C. You can use it in outdoor harsh environment.
- DIN Rail Mount - Hardened 5 ports PoE PD fiber switch is desi
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Overview:

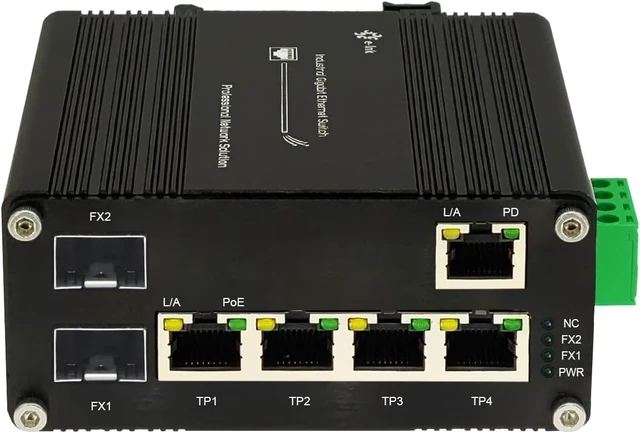

LNK-IMC205GPD-SFP is a mini industrial PoE powered fiber Ethernet switch with PoE Passthrough. Integrated with both Powered Device (PD) and Power Source Equipment (PSE) in one which can receive power and data from another PoE device and pass through. This switch is designed to supply the PoE to IP devices deployed in the field where the power source is difficult to acquire. Single Ethernet cable is capable of providing 71w total power budget and the pass through switch expand up to 4 network ports with PoE.
Features:
One IEEE 802.3bt PD PoE++ Port with 95W Power Input
Four PSE PoE output ports, PoE power budget up to 71W
Two 100/1000BASE-X SFP slots for SFP type auto detection
No AC adapter is required, powered by PoE switch or PoE injector (Can be used as PoE extender)
Expand and repeat your PoE network for up to 4 IP devices
IEEE 802.3at/af/bt Compliant Output

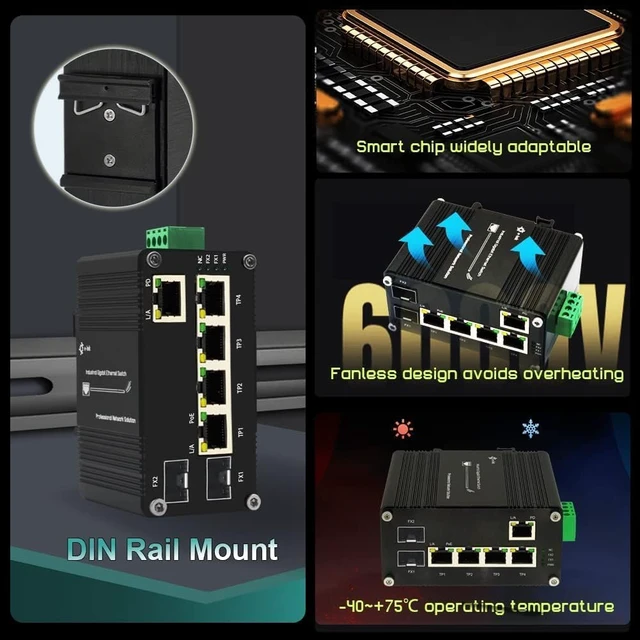

Supports DIN-Rail installation

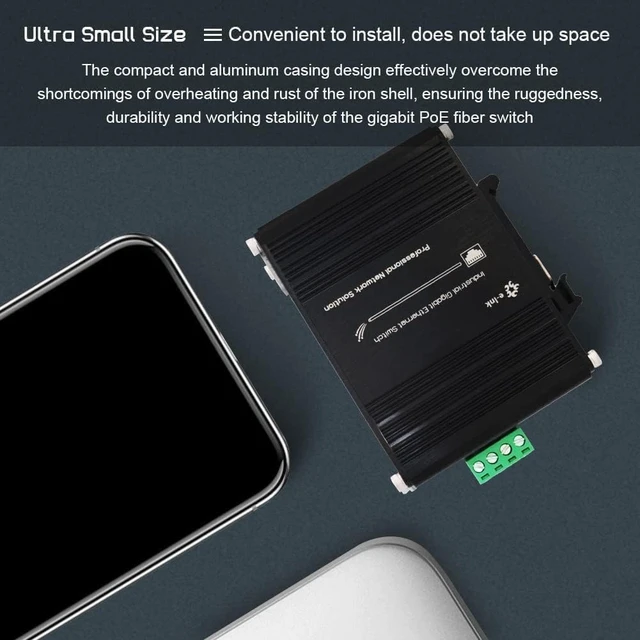

Compact fanless design avoids overheating and IP40 rugged high-strength aluminum case
-40°C to 80°C (-40°F to 176°F) operating temperature
Specifications:

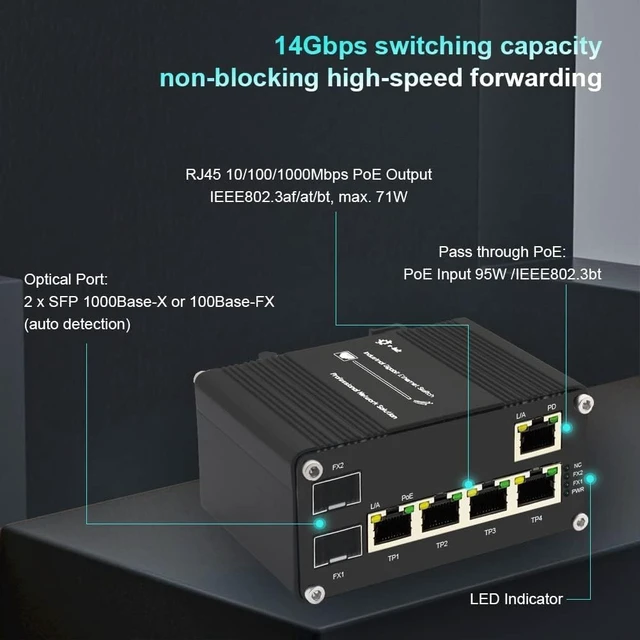

Ethernet Connector: 5 x RJ45 (1-Port PoE In /IEEE802.3bt, 4-Port PoE Out /IEEE802.3af/at/bt)
Optical Port: 2 x SFP 1000Base-X or 100Base-FX (auto detection)
Packet Buffer: 2Mbits
Packet Length: 10K bytes
MAC Address Table: 4K
Switch Fabric: 14Gbps/non-blocking
Backplane bandwidth: 14Gbps
Packet forwarding rate: 14.88Mpps
Forward & Filtering Rate: 14,880pps (10Mbps); 148,800pps (100Mbps); 1,488,000pps (1000Mbps)
Power Pin Assignment: Mode-B 4/5(+), 7/8(-)
PoE Budget: Up to 71W
Power Consumption: <5W (Non-PoE)
Input Power: (Pass through PoE) 95W power input from a PoE injector or switch
48~57VDC (Terminal Block) Power Input
