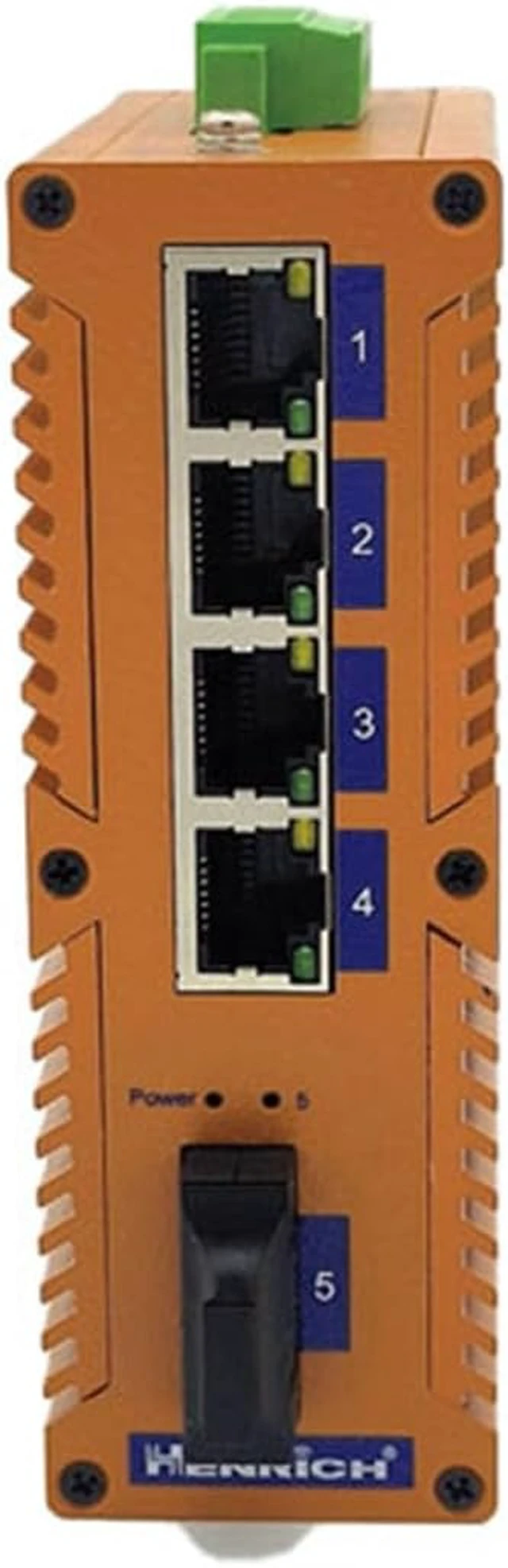

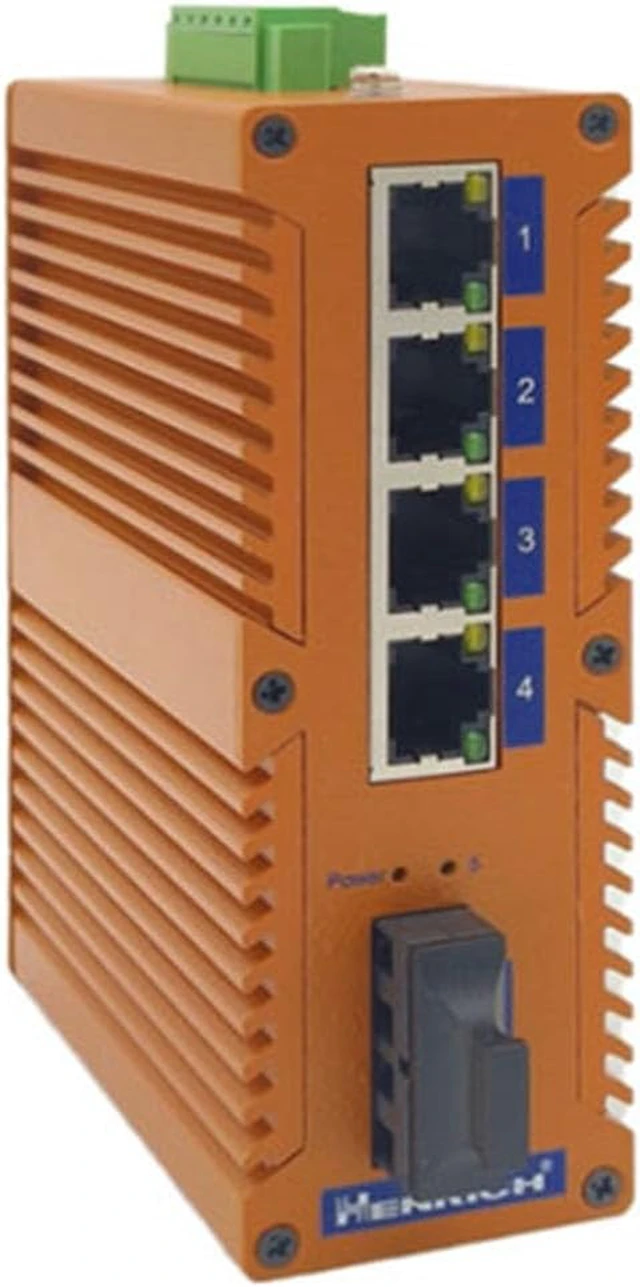

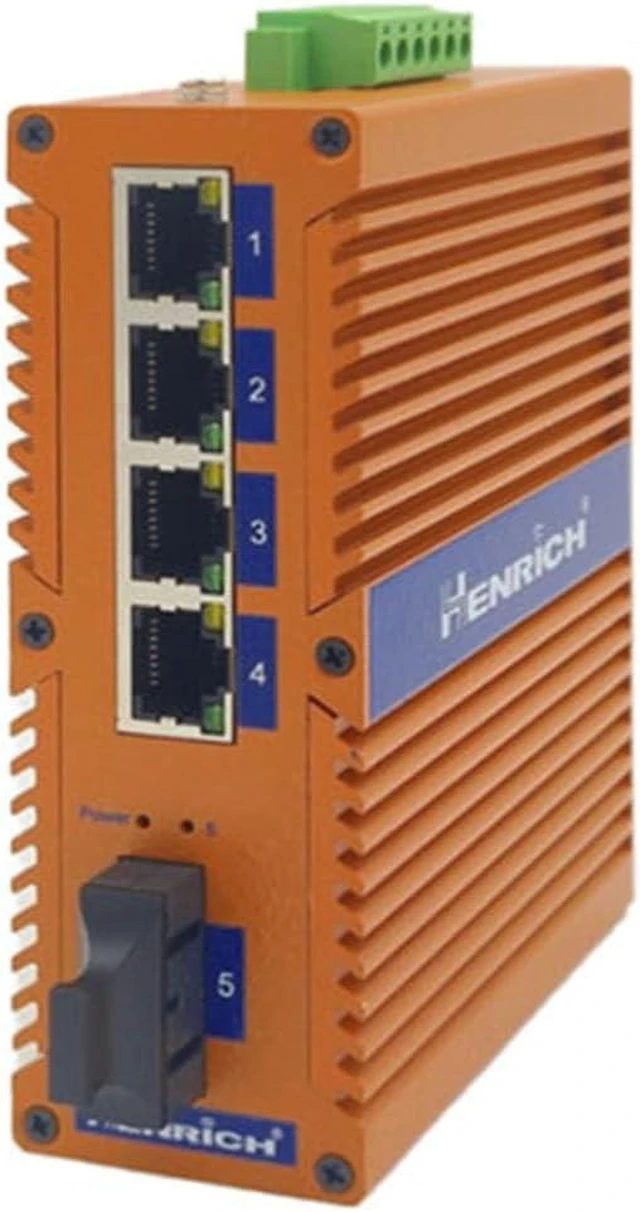

Henrich 5-Port DIN-Rail Unamanged Industrial Ethernet Switch, One SC Fiber
- Henrich 4 x 100Mbps Copper Port, 1 Single-mode SC Fiber Switch, -40 to 75°C , designed and supported by the US team!
- 4 10/100BaseT(X) Ports (RJ45 Connector); LED Indicators; Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation; IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x; 100BaseFX Ports 1 (Single-mode SC Connector); Power, Link / Activity for Each Port
- Optical Fiber Mode: Singlemode; Transmission Distance: 20km; Center Wavelength: 1310nm; TX Power: -14dBm; RX Power: -33dBm; Transmission Rate: 100Mbps
- Processing Type: Store and Forward; MAC Table Size: 2K; Packet Buffer Size: 1Mbit
- Input Voltage: DC 12-52 V Redundant Dual Power Inputs; Power Consumption: 3W Max; Input Connection: Phoenix Terminal; Reverse Polarity Protection: Supported; Overload Current 4.0A Protection: Supported
- EMI: FCC Part15, CISPR (EN55022) Class A; EMS: EN61000-4-2(ESD) Level 3, EN61000-4-3(RS) Level 3, EN61000-4-4(EFT) Level 3, EN61000-4-5(Surge) Level 3, EN61000-4-6(Radio Frequency Transm
+
+
