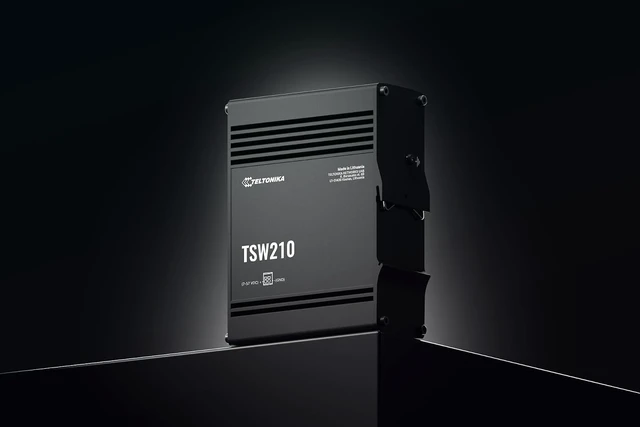

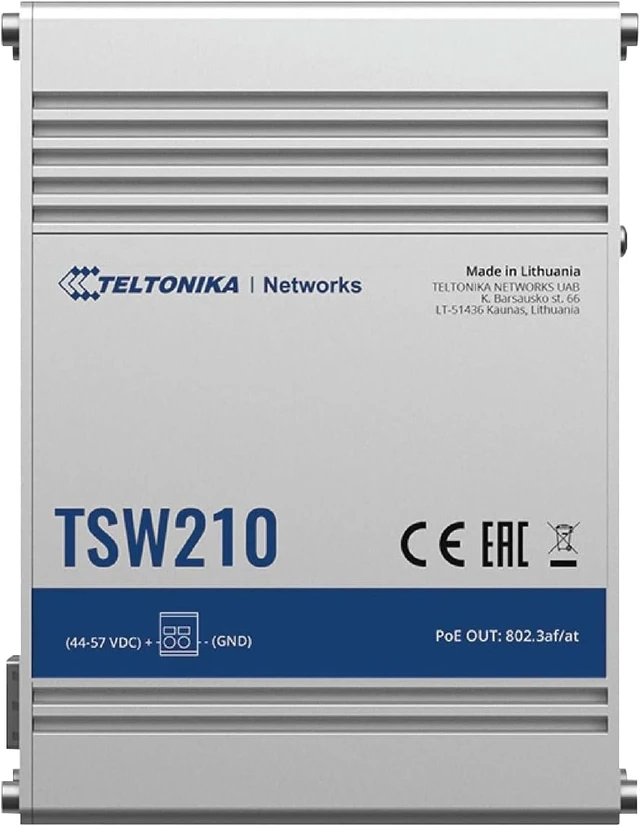

Teltonika TSW210 TSW210000011 Industrial Unmanaged PROFINET Ethernet Switch, 8X Gigabit Ethernet Ports, 2X SFP Ports, PROFINET Certified, DIN Rail Mountable, Plug-and-Play, North America Version

TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP allows including far apart devices while maintaining high-speed rates and reliability.
Power connector 2-pin industrial DC power socket Input voltage range 7-57 VDC Power consumption Idle: 1.03 W, Max: 3.71W Ethernet 8 x 10/100/1000 Mbps Ethernet ports SFP 2 x SFP ports for Optical interfaces IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az Status LEDs 16 x Ethernet, 1 x Power, 2 x SFP activity Ingress protection rating IP30 Operating temperature -40 °C to 75 °C Housing Aluminum housing with wall or DIN rail mounting options and grounding capability Dimensions 132 x 44.2 x 95.1 mm Weight 500 g Installation Desktop, wall or DIN rail mountable (additional kit needed) Bandwidth 20 Gbps Packet buffer 128 KB Jumbo frame support 9216 bytes MAC address table size 2K entries Auto MDI/MDI-X Cable Detection Yes Ensuring smooth operations and equipment health is crucial for the expanding solar farming industry, necessitating a scalable solution for remote monitoring and predictive maintenance. Connectivity for this IoT setup is provided by the TRB140 IoT gateway and the TSW210 unmanaged switch, creating a network that can encompass multiple solar panels with fewer total IoT gateways.
Industrial Ethernet Switch Hardware Performance specifications IoT Gateway For Solar Panel Remote Monitoring
