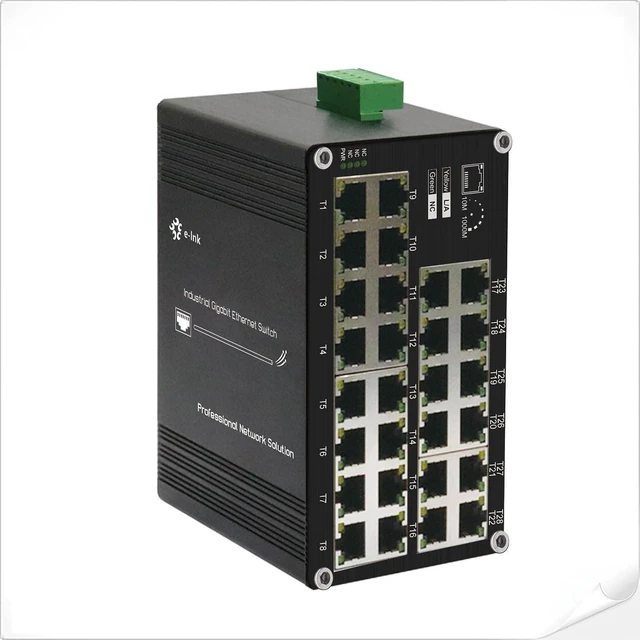

28 Port Gigabit Industrial Ethernet Switch, 28 x 10/100/1000Mbps RJ45

The LNK IMC028G is a 28 port industrial Gigabit Ethernet switch for reliable high speed networking in demanding environments. It offers 28 x 10/100/1000Mbps RJ45 ports with auto negotiation and auto MDI MDIX, allowing multiple Ethernet devices to connect without extra setup. This unmanaged switch is plug and play and requires no configuration. It uses store and forward processing and delivers 56Gbps nonblocking switching capacity, a 16K MAC address table, 1 Mbit packet buffer, 9K Bytes jumbo frame support, and forwarding rates of 14,880pps at 10Mbps, 148,800pps at 100Mbps, and 1,488,000pps at 1000Mbps. It supports IEEE 802.3, 802.3u, 802.3ab, 802.3x flow control, and 802.3az Energy Efficient Ethernet.
The rugged switch uses an IP40 rated aluminum case and supports DIN Rail and wall mount installation. It accepts 12-57V DC power through a 6 pin terminal block and provides dual redundant power inputs for continuous operation. Maximum power consumption is 5W. Operating temperature is -40°C to 75°C, storage is -40°C to 85°C, and humidity is 5% to 95% noncondensing. Dimensions are 150 x 115 x 75 mm and weight is 950g. MTBF is more than 200,000 hours. It meets ISO9001, CE, FCC Part 15 Class A, and RoHS requirements.
The LNK IMC028G is suitable for intelligent manufacturing, power and new energy, rail transit, oil and gas, mining, smart city, AI computing, autonomous driving, humanoid robots, metallurgy, chemical engineering, outdoor research base stations, and field weather monitoring. It supports surveillance, video monitoring, signal transmission, and multi device interconnection. With 28 port Gigabit performance, wide temperature operation, dual redundant power inputs, and DIN Rail or wall mount flexibility, this unmanaged industrial Ethernet switch provides stable connectivity for mission critical networks.
