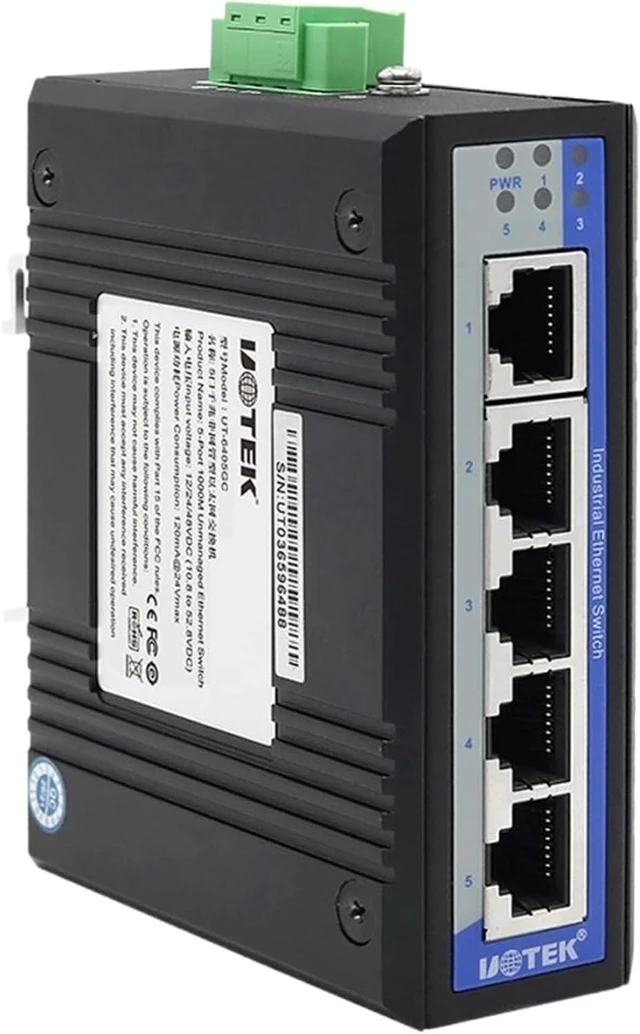

1PCS 1000M 5 Ports RJ45 Network Gigabit Unmanaged Industrial Ethernet Switch DIN-Rail IP40 Full Half Duplex UT-6405GC

Ethernet Switches
1PCS Industrial Gigabit 1000M 5 Ports Network Unmanaged Ethernet Switch DIN-Rail UT-6405GC
UT-6405GC is a 5-port full Gigabit unmanaged Ethernet switch, providing 5 1000Base-T Ethernet port, which supports -20~70°C operating
temperature and good EMC performance, and also supports industrial standard DIN-rail mounting to ensure normal operation in harsh environments, so it is very easy to install and apply on any industrial network.
Reliable data transmission and long lifecycle
Supports full-duplex and half-duplex, auto MDI/MDI-X
Auto 10/100/1000Mbps
Fully automatic recognition of network interface
and play for easy access
Operating temperature: -20 ~ 70°C
Voltage input: 12/24/48VDC (10.8~52.8VDC), support reverse connection protection
UT-6405GC Details
UT-6405GC Parameters
>>Protocol Standards
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3x
>>Interfaces
Gigabit Ethernet: 5*Gigabit RJ45, support 10/100/1000Base-T
>>Switching Performance
Forwarding rate: 1488095pps
Transmission mode: store and forward
address size: 2K
Cache size: 1Mb
Backplane bandwidth: 10G
Max. frame length: 16KB
>>LED indicator light
PWR power indicator, RJ-45 indicator
>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail Mounted
>>Power Requirement
Voltage input: 12/24/48VDC(10.8~52.8VDC)

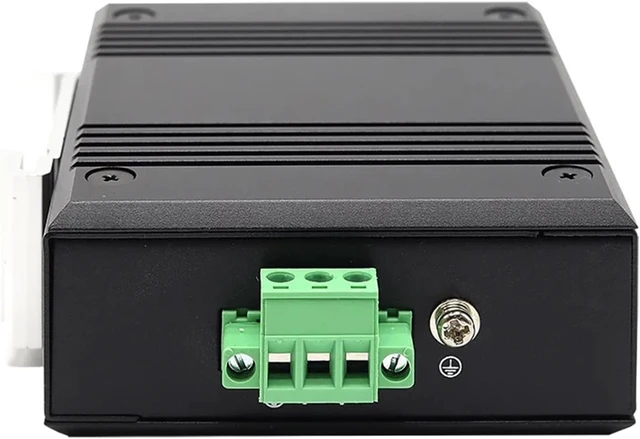

Interface terminal: 1 pluggable 3-pin terminal block
Overload protection: Support
Reverse connection protection: Support
>>Power consumption
120mA@24Vmax
>>Mechanical Dimension
Dimension (W x H x D): 100mm x 80mm x 35mm
Weight: 560g
Packaging dimension: 180mm x 140mm x 35mm
>>Operating Environment
Operating temperature: -20 ~ 70°C
Storage temperature: -40 ~ 85°C
Relative humidity: 0~95% (non-condensing)
==========
Hign-concerned Chemical : none
Model Number : UT-6405GC
Switch Type : Ethernet
Number of Interfaces : 7
Package : Yes
Transmission Rate : 10/100/1000Mbps
Communication Mode : Full-Duplex & Half-Duplex
Model Number : UT-6405GC
