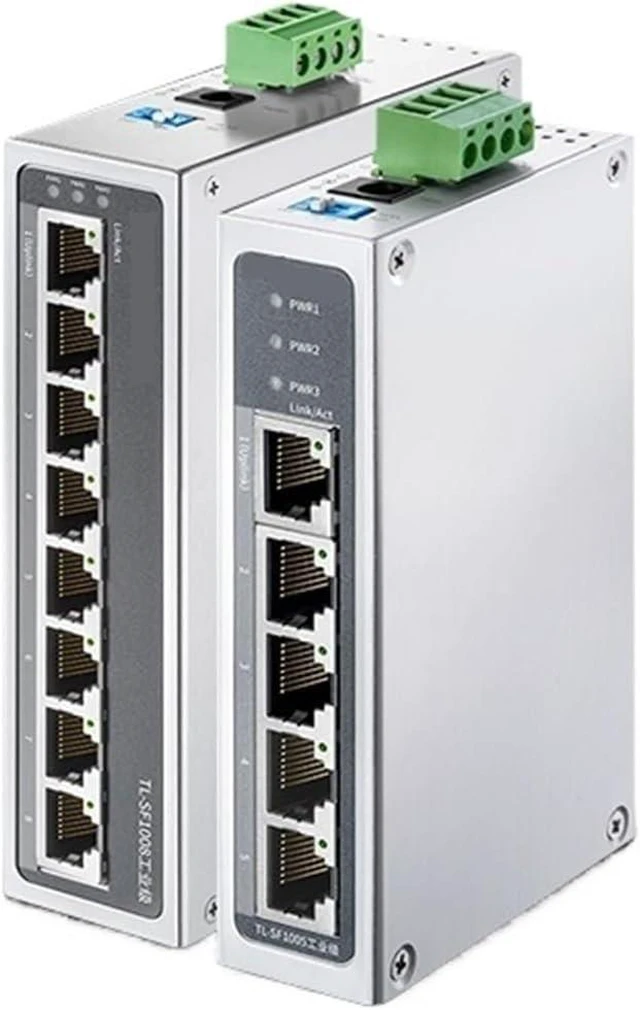

1Pcs 5 Port 8 Port 100M Industrial Ethernet Switch 100Base-T DIN Rail Wall Mounted Aluminium Alloy Shell TL-SF1005 TL-SF1008(TL-SF1008)

Ethernet Switches
Switch Type : Ethernet
VLAN : NO
Package : Yes
Transmission Rate : 10/100Mbps
Communication Mode : Full-Duplex & Half-Duplex
Model Number : TL-SF1008 Industrial
Function : VLAN Support
Network Protocol : IEEE 802.3, 802.3i, 802.3u, 802.3x, compatible with Modbus , Ethernet/IP, Profinet
Ethernet Port : 5/8*100Mbps RJ45 Port
Indicator : 5/8 *Indicator Link/ACT , PWR1, PWR2, PWR3
Transfer Mode : Store and Forward
Address : 2K
Working Environment : Working temperature: -40 ~75 ,Storage temperature: - 40 ~85 ,Working humidity: 10%~90% RH non-condensing ,Storage humidity: 5%~90% RH non-condensing

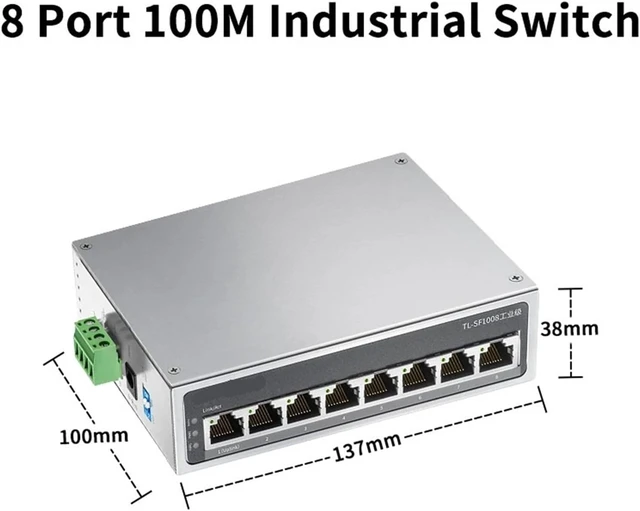

Dimension : 115mm*70mm*28mm/137mm*100mm*38mm
Input Voltage : 12/24/48V DC (9.6~ 60V DC)

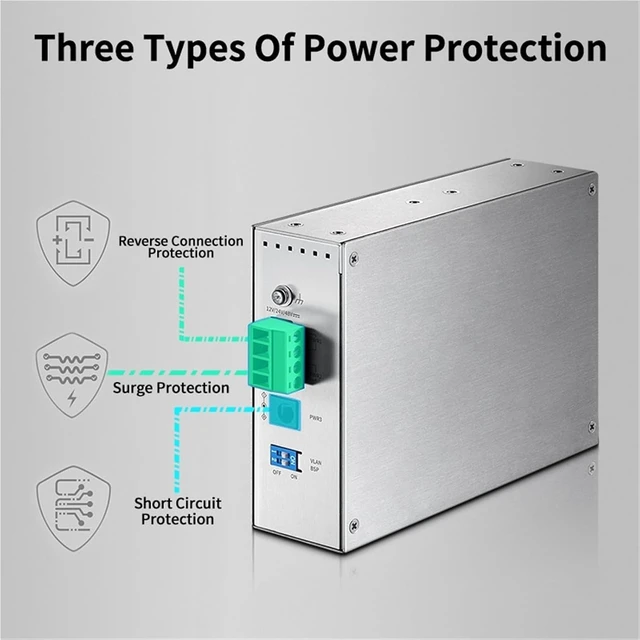

Input Current : 0.10A(MAX), Support Reverse Polarity Protection
DIP : Support Broadcast Storm Protection and VLAN Isolation

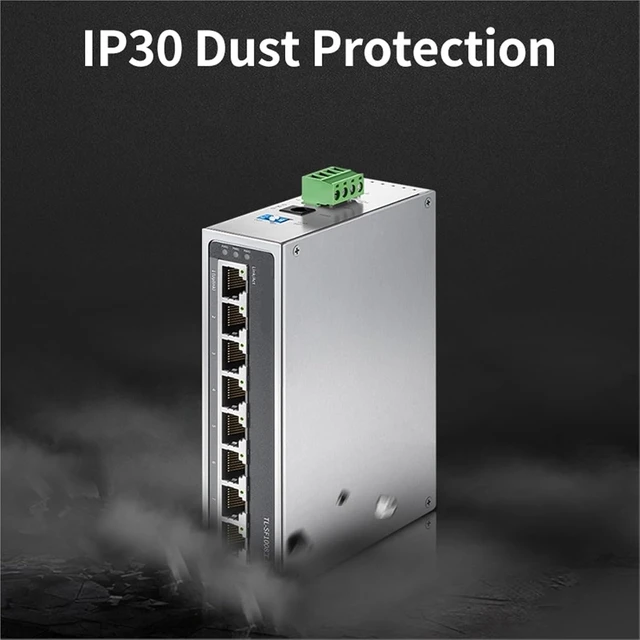

Structure : IP30 Protection

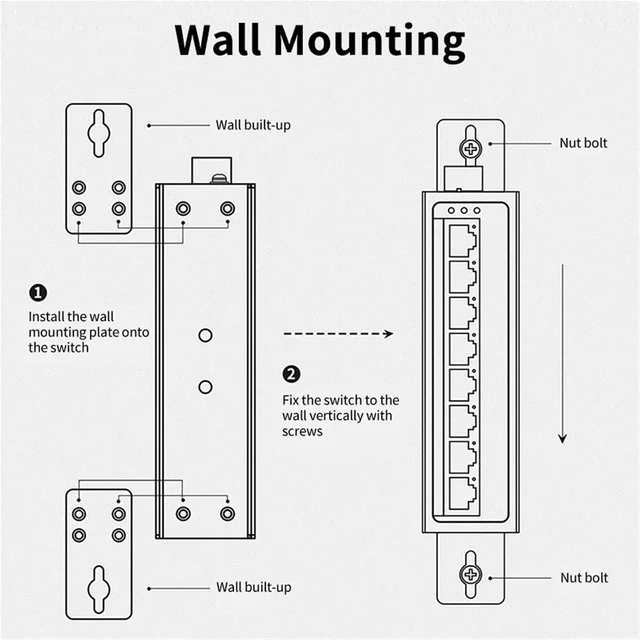

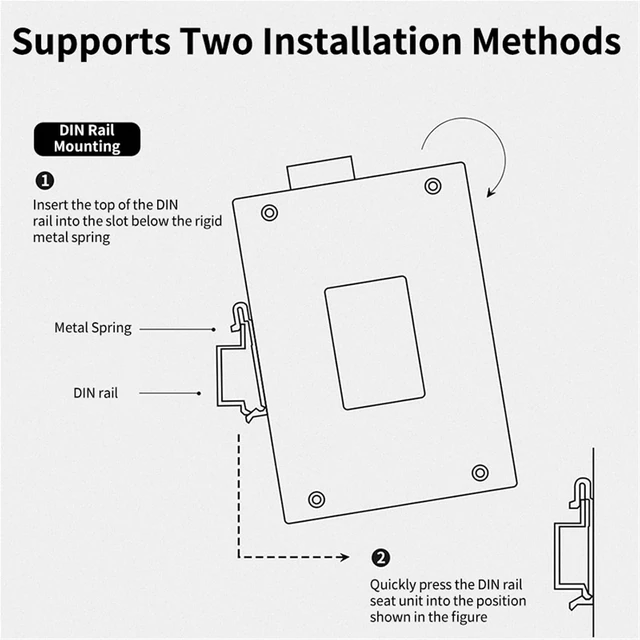

Mount : DIN Rail mounted and Wall Mounted

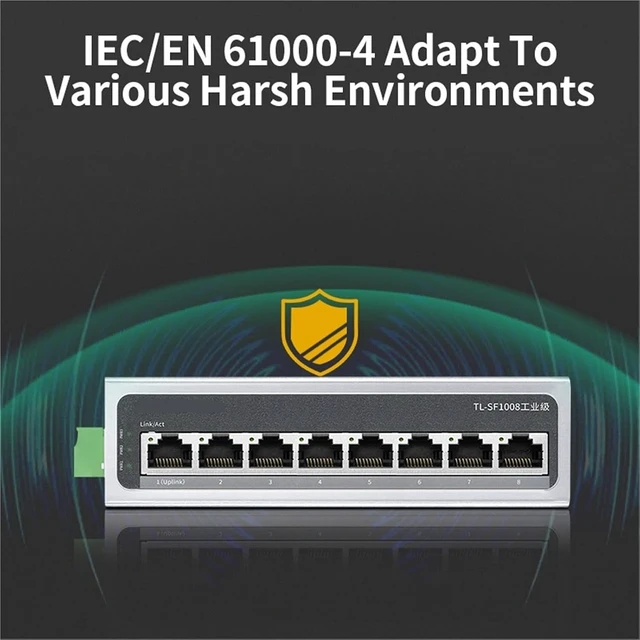

Certification Standards_ EMS : IEC/EN 61000-4-2,Level 4, IEC/EN 61000-4-3,Level 4, IEC/EN 61000-4-4,Level 4, IEC/EN 61000-4-5,Level 3, IEC/EN 61000-4-6,Level 3, IEC/EN 61000-4-8,Level 5, IEC/EN 61000-4-9,Level 5, IEC/EN 61000-4-10,Level 5,
Maximum Power : 1.15W/1.63W
Attention : Chinese version,including User Mannual
Material : Aluminium Alloy Shell, Electroless Nickel/Immersion Gold PCB Board
