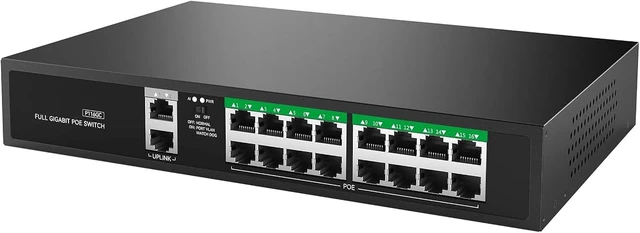

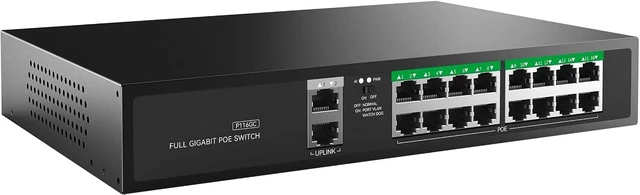

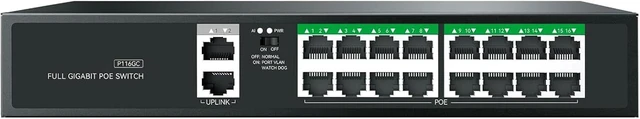

P116GC Uplink POE Switch; 16x 10/100/1000M Adaptive POE Powered Ports, and 2X 10/100/1000Mbps Adaptive Uplink; Auto MDI/MDIX Crossover for All Ports; Built-in 240W Power Supply

P116GC Uplink POE Switch; 16x 10/100/1000M Adaptive POE Powered Ports, and 2x 10/100/1000Mbps Adaptive Uplink; Auto MDI/MDIX Crossover for All Ports; Built-in 240W Power Supply

Key Features:
- 16x 10/100/1000M adaptive POE powered ports, 2x 10/100/1000Mbps adaptive Uplink
- Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
- POE IEEE 802.3af/at compliant Powered Device (PD)
- Supports two modes: Normal Mode/Port VLAN + Watch Dog Mode
- Auto MDI/MDIX crossover for all ports
- Support full duplex based on IEEE802.3x and half duplex based on Backpressure
- All ports have wire-speed forwarding capability
- MAC address auto-learning & auto-aging
- Power supply: built-in 240W


Specifications:
- Interface: 16 10/100/1000M POE Ports (Data /Power); 2 10/100/1000M RJ45 Ports(Data)
- LED: PWR: Lighting - The device is powered on normally; AI: Lighting - The intelligent mode is enabled; Port: Lighting - Port link is normal; Blinking - Data in transit
- Mode: Normal Mode, Port VLAN + Watch Dog Mode
- Backplane bandwidth: 36G
- MAC Address Table Size: 2K

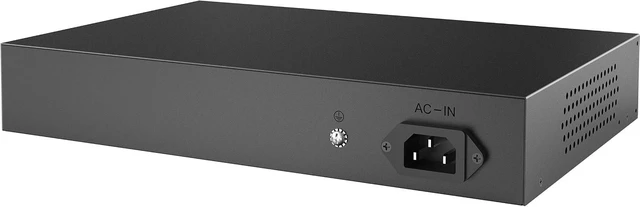

- Power supply: AC input 100-240V,50-60Hz, standard 240W power supply
- Data Transfer Rate: 10Mbps(Half-duplex and Full-duplex); 100Mbps(Half-duplex and Full-duplex); 1000Mbps(Full-duplex)
- Overall Dimensions (LxWxH): 10.62 x 7.08 x 1.77 inches
