5 Port Gigabit PoE Switch with VLAN
- 4 PoE Ports 100Mbps Network Switch with 250M Transfer, IP55 Outdoor Security Camera Power Adapter
- LONG DISTANCE TRANSFER: The device supports a remarkable PoE power and data transfer distance of up to 250 meters at a speed of 10Mbps, significantly extending beyond the conventional 100 meter limitation, making it ideal for outdoor monitoring applications requiring long range coverage.

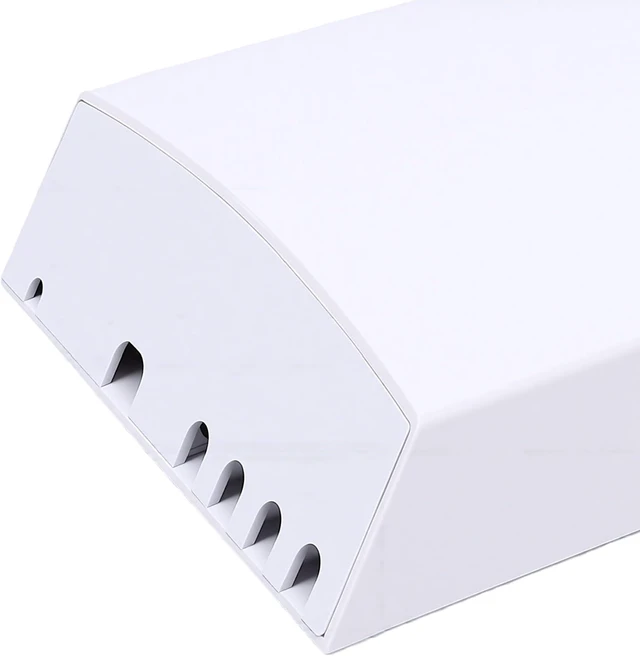

- WEATHERPROOF DESIGN: Built with a pure white engineering plastic housing, this switch boasts an IP55 rating for dust and water resistance, effectively protecting it against rain, dust, and condensation, ensuring reliable operation in outdoor pole or wall mounted installations.
- INTELLIGENT POE POWER MANAGEMENT: This device offers a total power budget of 45W, supporting IEEE 802.3af/at standards to simultaneously power 4 PoE devices such as security cameras and access points, with built in priority power protection that automatically manages port power allocation for optimal performance.
- VLAN PORT ISOL
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specification:
Item Type: 5 Port Gigabit PoE Switch
Ports: 4x10/100Mbps PoE ports + 1x10/100Mbps uplink port
Total Ports: 5 ports
Power Budget: Total PoE budget 45W (Maximum 30W per port, supports IEEE 802.3af/at standards)
Transfer Rate: 100Mbps
Switching Backplane Bandwidth: 1Gbps
Transfer Distance: Up to 250m / 820.21ft (at 10Mbps) / 100m / 328.08ft (at 100Mbps)
Management Features: Supports VLAN port isolation (with physical DIP switch)
Power Supply: Wide voltage input (terminal block power supply, power plug not included)
Waterproofing Level: IP55 outdoor waterproofing
Operating Temperature: -20°C to 60°C
Installation Method: Wall mounted, pole mounted
Power Interface: Terminal block (live, neutral, ground, refer to the wiring diagram in the manual)
How to Use:
Take out and use
Package List:
1 x 5 Port Gigabit PoE Switch
1 x Instruction Manual
1 x Green Terminal Block
2 x White Nylon Cable Ties
4 x Screws
4 x Expansion Plugs
Item Type: 5 Port Gigabit PoE Switch
Ports: 4x10/100Mbps PoE ports + 1x10/100Mbps uplink port
Total Ports: 5 ports
Power Budget: Total PoE budget 45W (Maximum 30W per port, supports IEEE 802.3af/at standards)
Transfer Rate: 100Mbps
Switching Backplane Bandwidth: 1Gbps
Transfer Distance: Up to 250m / 820.21ft (at 10Mbps) / 100m / 328.08ft (at 100Mbps)
Management Features: Supports VLAN port isolation (with physical DIP switch)
Power Supply: Wide voltage input (terminal block power supply, power plug not included)
Waterproofing Level: IP55 outdoor waterproofing
Operating Temperature: -20°C to 60°C
Installation Method: Wall mounted, pole mounted
Power Interface: Terminal block (live, neutral, ground, refer to the wiring diagram in the manual)
How to Use:
Take out and use
Package List:
1 x 5 Port Gigabit PoE Switch
1 x Instruction Manual
1 x Green Terminal Block
2 x White Nylon Cable Ties
4 x Screws
4 x Expansion Plugs
