5-Port Gigabit Industrial PoE Switch with 1 SFP, 12-48V DC Input
- 2× 802.3af/at PoE+, 2× 50W Hi-PoE+, 1× 24V Passive PoE, 1× Gigabit SFP, DIN Rail/Wall Mount, IP40 for Solar & Industrial

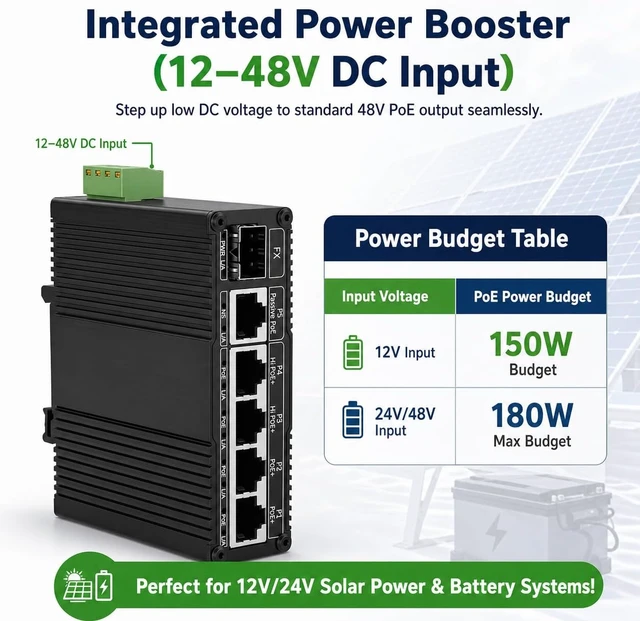

- 1248V DC Input with Built-In Power Booster Designed for DC-powered networks, this industrial PoE switch accepts a wide 1248V DC input and boosts the input voltage to 48V for PoE output. The PoE budget is up to 150W at 12V input and 180W at 24V/48V input.
- 5-Port Gigabit PoE + SFP Built for industrial networks, this unmanaged switch provides 5× 10/100/1000Mbps RJ45 ports plus 1× 100/1000Mbps SFP slot for copper and fiber connectivity. Auto-negotiation and Auto MDI/MDIX simplify network deployment.

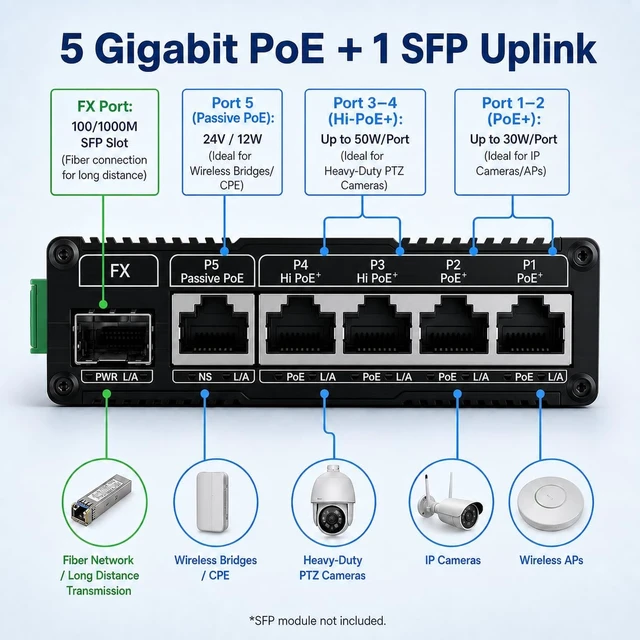

- Flexible PoE for Different Devices Ports 12 support IEEE 802.3af/at PoE+ up to 30W per port. Ports 34 support up to 50W Hi-PoE+ per port. Port 5 delivers 12W/24V passive PoE for compatible DC-powered devices.

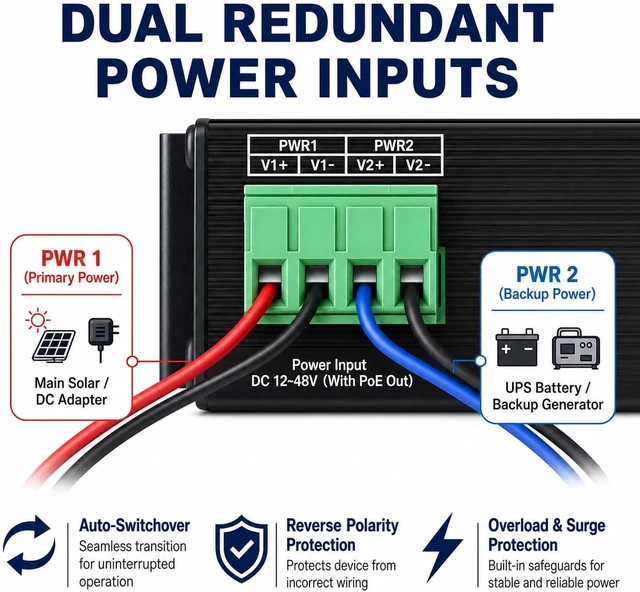

- Dual Redundant Power Inputs Dual 1248V DC power inputs provide a backup power option for applications where continuous network operation is important.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

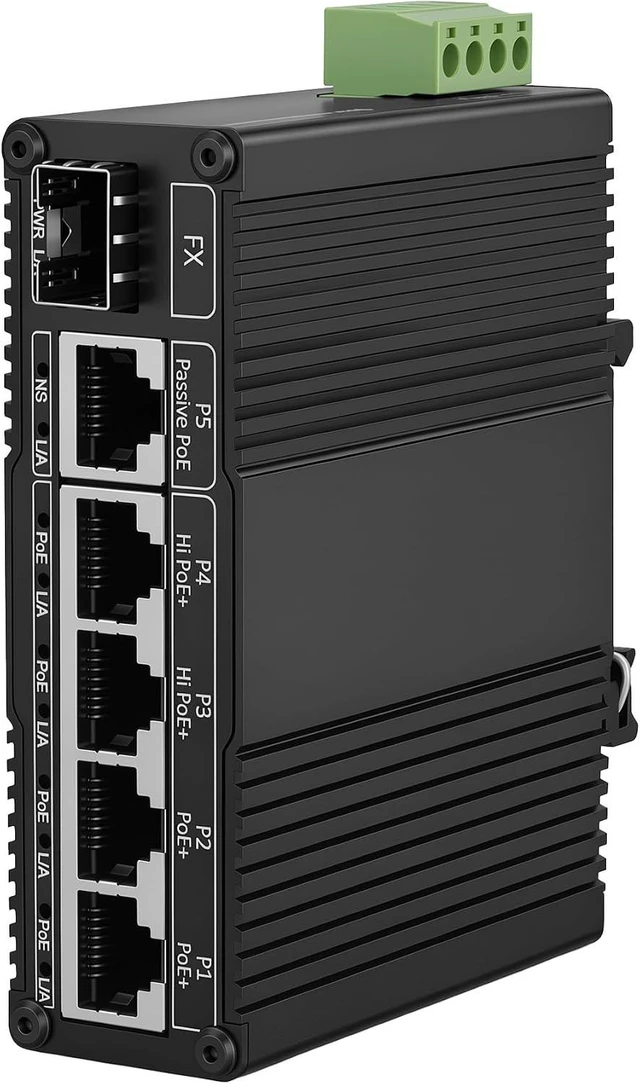

The ATROODAC 5-Port Gigabit Industrial PoE Switch is designed for industrial and DC-powered network applications where flexible PoE connectivity and compact installation are important. It combines 5× 10/100/1000Mbps RJ45 ports with 1× 100/1000Mbps SFP interface, giving you both copper and fiber connectivity in a compact industrial enclosure.
Ports 12 provide IEEE 802.3af/at PoE+ with up to 30W per port, while Ports 34 support up to 50W Hi-PoE+ per port. Port 5 provides 12W/24V passive PoE for compatible devices. This flexible port design allows different types of powered equipment to be connected to the same switch.

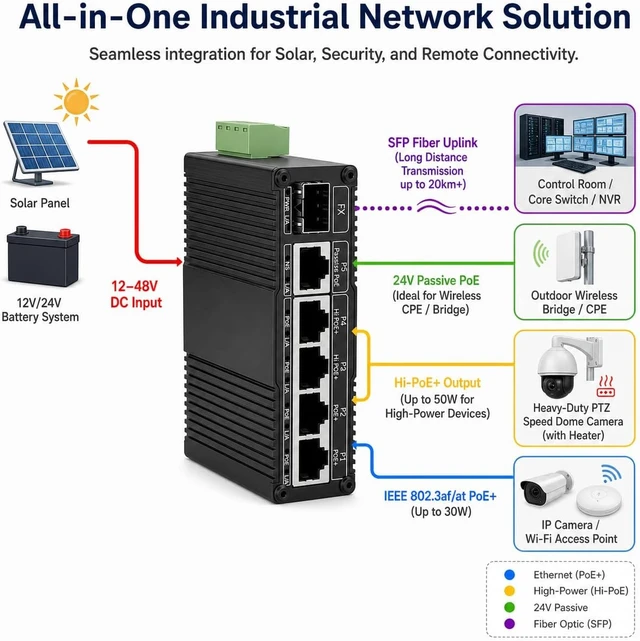

With a 1248V DC input and built-in Power Booster, the switch is designed for DC-powered networks and applications such as solar power, surveillance, transportation, industrial automation, and control systems. The available PoE budget varies with input voltage, reaching up to 180W at 24V or 48V DC.

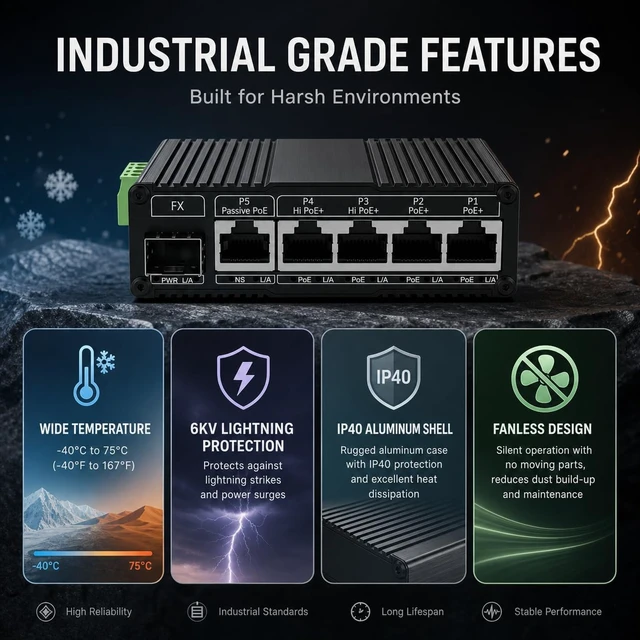

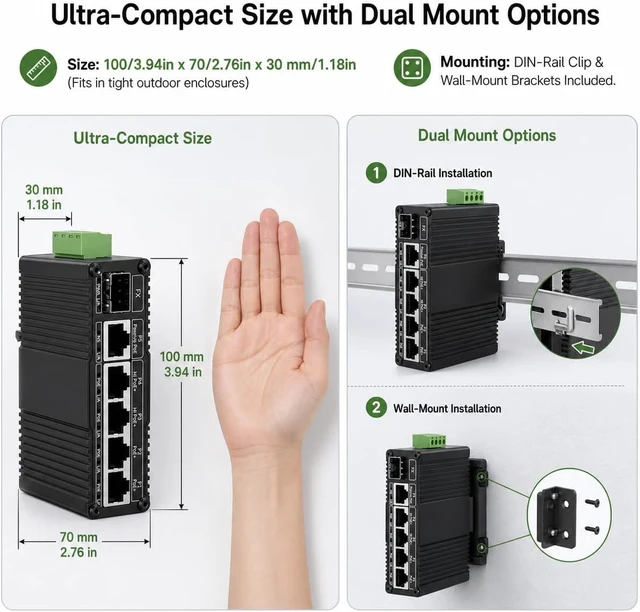

The fanless aluminum housing, IP40 protection, wide -40 to 167 operating temperature range, and DIN-rail/wall-mount options make it suitable for control cabinets and other demanding installation environments.
Note: Power supply and SFP module are purchased separately. Please verify your connected devices' PoE requirements and input voltage before installation.
