for Servers and Adapters - 10 Port PoE Switch Unmanaged Plug and Play Ethernet Network Switch with 20Gbps Switching Capacity, Metal Housing, 100 - 240V US Plug and 4KV Port
- Network Switch Specifications: This 10 port PoE Ethernet switch features a 20Gbps switching capacity and utilizes a storage forwarding method for efficient data management across network devices.

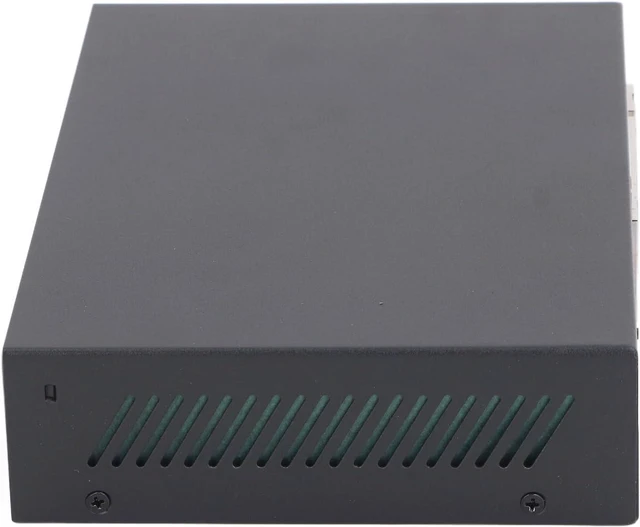

- Metal Housing and Protection: The unit is constructed with a metal housing for durability and heat dissipation with 4KV port thunder protection to safeguard connected hardware against electrical surges.
- Plug and Play Operation: This unmanaged switch requires no configuration and functions by connecting the included 100 - 240V US plug power cord and Ethernet cables for immediate network integration.
- Extended Transmission Modes: The device includes a normal mode for standard communication and an extended mode that supports a maximum transmission distance of 250m for specialized network layouts.
- Fanless Silent Design: The fanless cooling architecture provides silent operation suitable for noise sensitive professional environments including offices, hospitals, schools, and server rooms.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Item Type: 10 Port PoE Switch
Model: ZX G0802GN
Chip Solution: RTL8367S+RTL8367S
Standard Protocol: IEEE 802.3af/at
Network Media:
10BASE T: Unshielded twisted pair CAT3, CAT4, CAT5 (maximum 100m)
100BASE TX, 100BASE T: Unshielded twisted pair CAT5 and CAT5e above (maximum 100m)
1000BASE TX, 1000BASE T: Twisted pair CAT6e (maximum 100m)
Fixed Ports: 8 10/100/1000 Base TX Ethernet Ports (Data Power), 2 10/100/1000 Base T Ethernet Ports (Data)
Forwarding Mode: Store and Forward
Media Access Control Address Capacity: 4K
Switching Capacity: 20Gbps
Packet Forwarding Rate: 14.48Mpps
Port Thunder Protection: 4KV
Indicator Light:
Each Device: Power System (Power: Green Light), indicator light is always on when connected to the load
Each Port: Link Activity (Link Act: Green Light), indicator light is flashing when connected to the load
POE Power Supply: 1-8 ports compatible with 802.3af at PoE Power Supply (1/2)+, (3/6)-
Port Features: 2 Modes:
OFF: Normal Mode
All ports can communicate with each other, can be used as a common unmanaged PoE switch
ON: Extension Mode
The maximum transmission distance of the switch is 250 meters
Working Temperature: -10-70 (32-127)
Storage Temperature: -40-85 (-97-142)
Working Humidity: 10%-90% non condensing
Storage Humidity: 5%-95% non condensing
Package List
1 x Ethernet Switch
1 x Power Adapter
1 x User Manual
