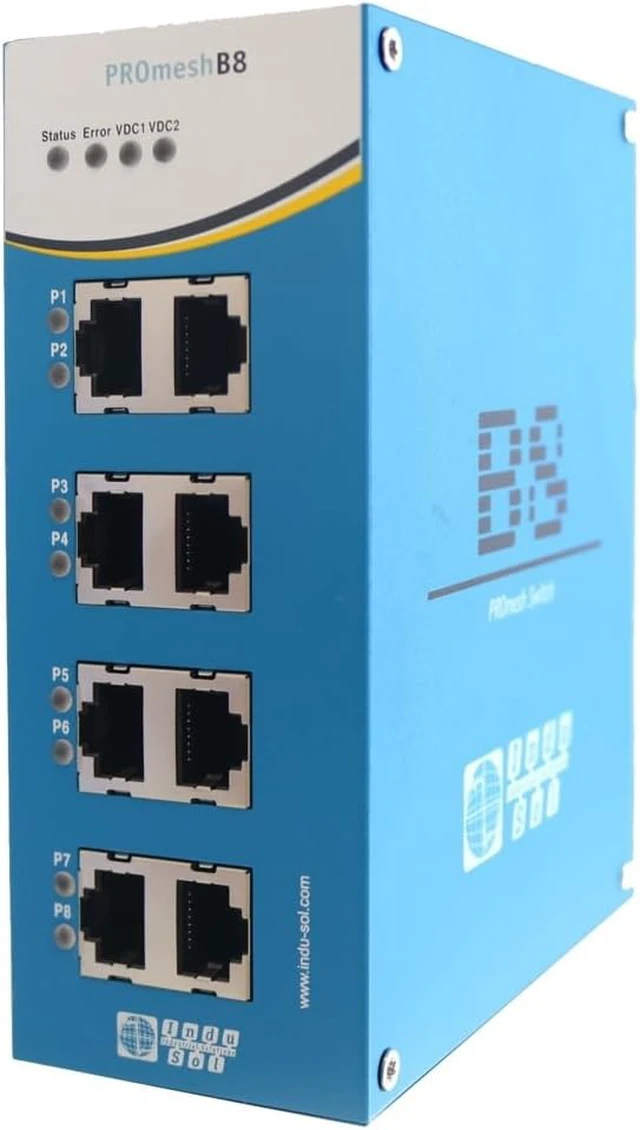

    PROmesh B8 | 8-Port PROFINET and EtherNet/IP Managed Switch 114110502

    Be the first to review this product...
    • 8-port managed industrial switch for PROFINET and EtherNet/IP with web management and SNMP monitoring.
    • DUAL-PROTOCOL CERTIFIED: PROFINET v2.4 (Conformance Class B) and EtherNet/IP certified, so the same switch drops into either network with the correct GSDML or EDS file.
    • FULL WEB MANAGEMENT: Configure and monitor through the integrated web interface with no management software to install. SNMP v1/v2c/v3, VLAN, QoS, and LLDP for complete Layer 2 control.
    • RING REDUNDANCY FOR UPTIME: MRP master and client plus RSTP and STP support fault-tolerant ring topologies that keep the network running if a link drops.
    • REDUNDANT POWER AND ALARM CONTACT: Dual 24 VDC inputs and an alarm relay guard against supply loss, with VDC, status, and error LEDs for at-a-glance health.
    • BUILT FOR THE CABINET: Compact fanless design with passive cooling, 35 mm DIN-rail mount, 8x RJ45 (10/100 Mbit/s), status LEDs for link and power, and UL, CSA, CE, UKCA approvals.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now
    The PROmesh B8 is a Layer-2 managed industrial Ethernet switch that supports both PROFINET and EtherNet/IP on eight RJ45 ports. It provides full switch management through an integrated web interface with no additional software, including SNMP, VLAN, QoS, and IGMP snooping. MRP and RSTP ring redundancy keep traffic flowing if a link fails, and diagnostic status LEDs plus an alarm relay make faults easy to spot. Redundant 24 VDC power and a compact fanless housing suit demanding control-cabinet installations. PROFINET v2.4 certified to Conformance Class B and EtherNet/IP certified. Technical specifications: 8x RJ45 ports, 10/100 Mbit/s. Redundant 24 VDC supply (12 to 36 VDC), 0.8 A max draw, 8 W max. Backplane capacity 6.3 Gbit/s, throughput 1.6 Mpps, 16K MAC table, 2 Mbit packet memory. Management via HTTP, HTTPS, SNMP v1/v2c/v3, LLDP, SNTP. Redundancy: MRP master and client, RSTP, STP. VLAN (4096, tagged), 8 QoS queues per port, IGMP snooping. Alarm relay and reset button. 35 mm DIN-rail mount (0 and 90 degrees), passive cooling. Dimensions 138 x 53 x 110 mm (H x W x D). IP30. Operating and storage temperature -10C to +60C. Humidity below 95% non-condensing. Approvals: CE, UL, CSA, UKCA. EMC per EN 55032 and EN 61000-6-2. Indu-Sol PROmesh B8, article number 114110501. PROFINET v2.4 Conformance Class B, PROFINET Netload Class III, EtherNet/IP certified.
