1PCS Industrial Grade 8 Ports RJ45 Network Unmanaged POE Ethernet Switch 2 Gigabit Optical Fiber 1000M SEP SC UT-6428-POE(UT-6428-8T-2GSC-POE)

Ethernet Switches

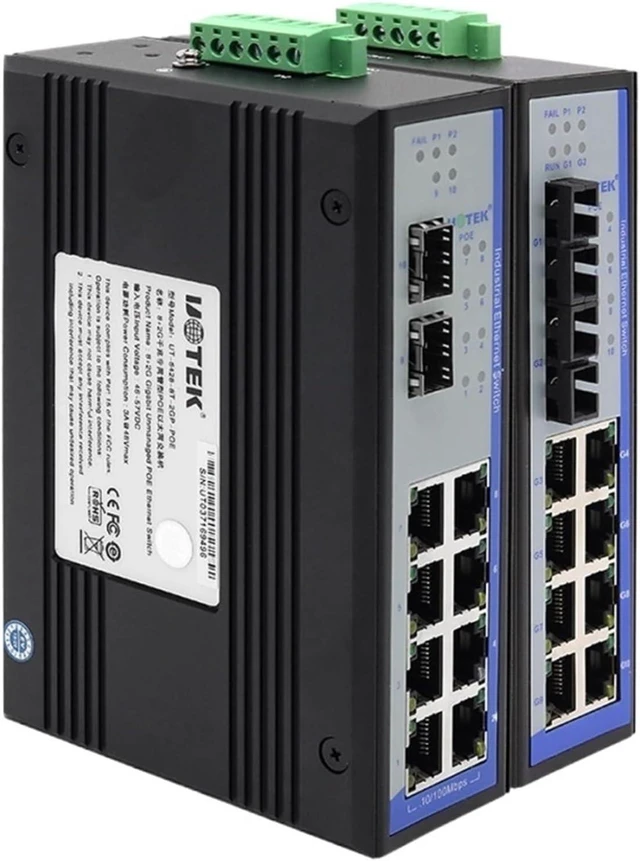

Industrial Grade 8 Ports Network Unmanaged POE Ethernet Switch Gigabit 2 Optical Fiber 1000M SEP SC UT-6428-POE

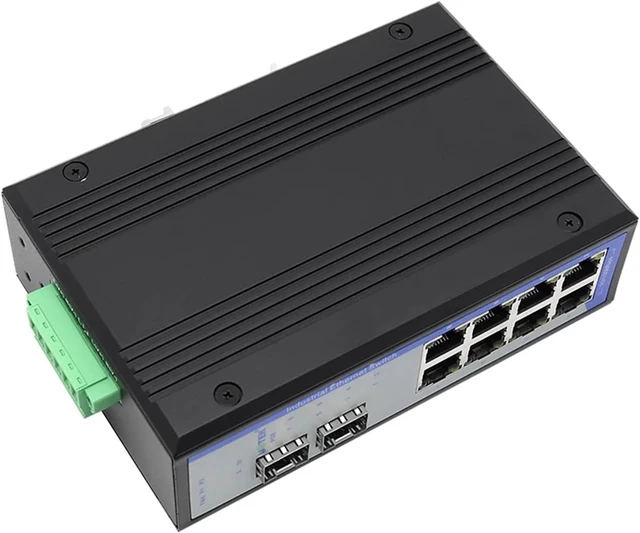

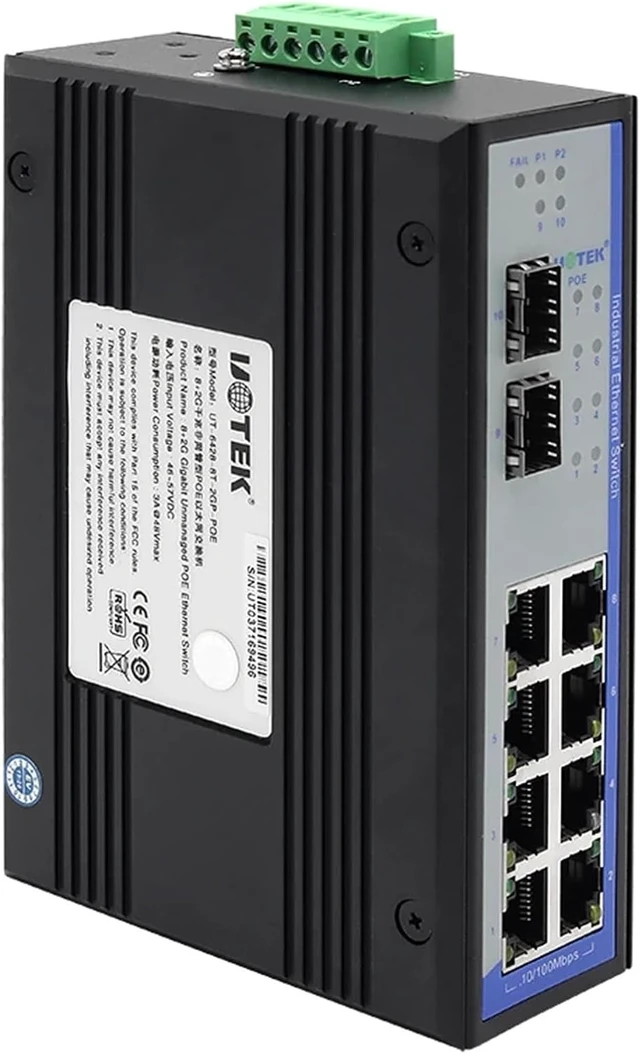

Model 1: UT-6428-8T-2GP-POE (with SFP interface)

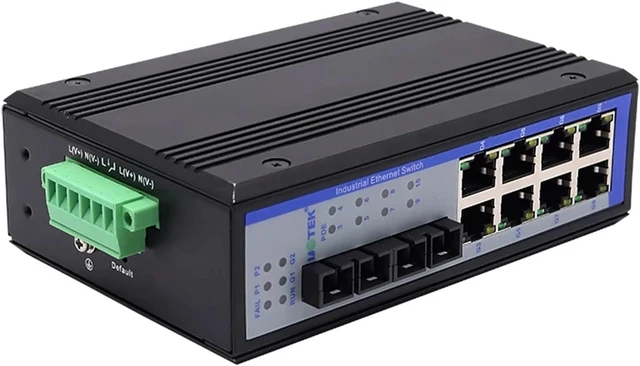

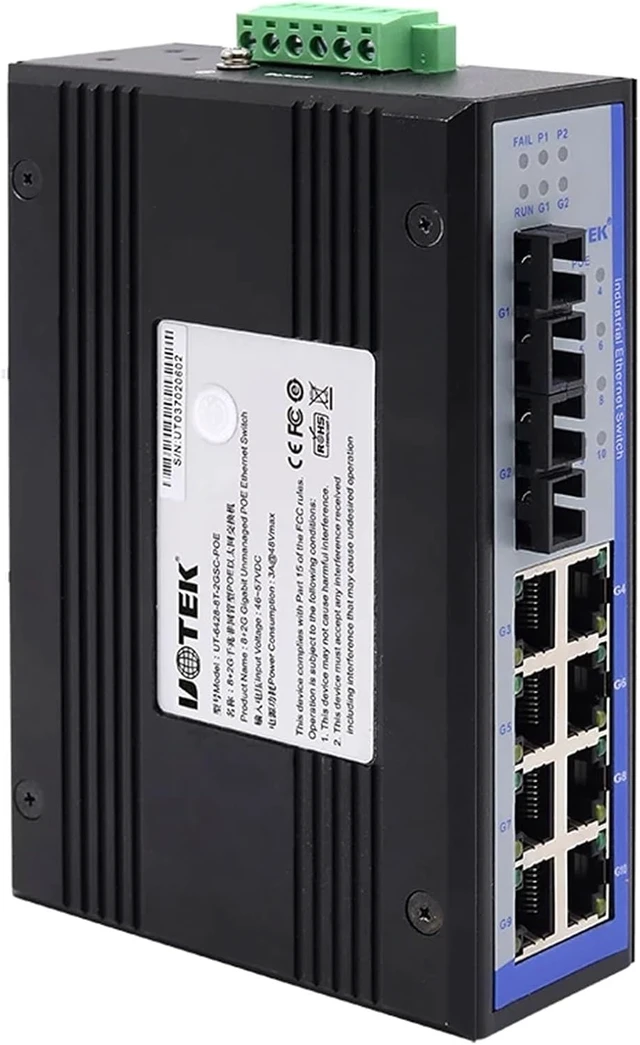

Model 2: UT-6428-8T-2GSC-POE (with SC interface)
The UT-6428 series unmanaged Gigabit industrial Ethernet switches support 8 10/100Base-T(X) Ethernet ports (IEEE802.3af/at(POE)
compatible) and 2 1000Base-X ports. Each POE port can provide up to 30W of power to connected devices (such as surveillance cameras, wireless access points and IP phones) when AC power is not available or limited by other factors. It can work for industrial automation, intelligent transportation, video surveillance and other industrial applications with greater advantages.
UT-6428-POE Details
UT-6428-POE Parameters
>>Protocol Standards
Standards: IEEE 802.3af/at, IEEE802.3. IEEE802.3u, IEEE802.3z
Flow control: IEEE802.3x flow control, backpressure flow control
>>Interfaces
Fiber optic interface: 1000Base-X (SC/FC/ST/SFP slot)
RJ45 interface: 10/100Base-T (X), support POE output
POE pins: V+ ,V+, V-,V- corresponding to pins 1,2,3,6 (default)
LED indicators: Power indicator, optical port indicator, RJ45 indicator, alarm indicator, POE indicator
>>Transmission Distance
.5e: 100m
Fiber Patch Cord
Single-mode: 1,310nm 20/40/60Km
1,550nm 80/100/120Km
Multi-mode: 1,310nm 2Km
>>Power Requirement

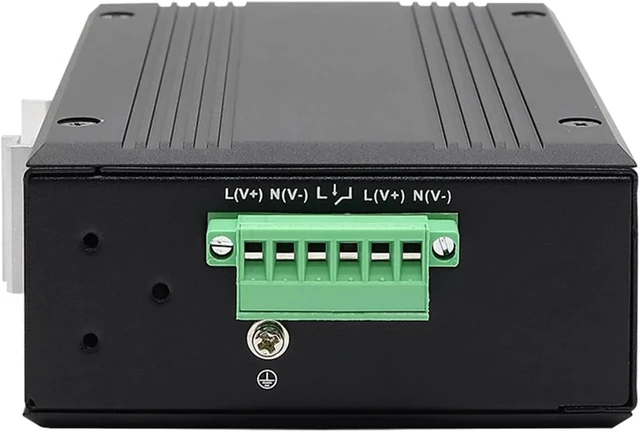

Input voltage: 48VDC (46-57V), redundant input, support reverse connection protection
Interface terminals: 1 pluggable 6-pin terminal block
>>Switching Performance
100M Forwarding rate: 148810pps
1000M Forwarding rate: 1488095pps
Transmission mode: store and forward
address size: 8K
Cache size: 1Mbit
Backplane bandwidth: 7.6G
Max. frame length: 1632B
>>Power Consumption
single POE network interface up to 30W, the total power consumption no more than 150W
>>Mechanical Dimension
Dimension(W x H x D): 150mm x 47.6mm x 100mm
Package dimension: 250mm x 205mm x 55mm
Weight: 940g
>>Operating Environment
Operating temperature: -40 ~ 75 °C
Storage temperature: -40 ~ 85 °C
Relative humidity: 0~95% (non-condensing)
>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail /Wall Mounted
==========
Model Number : UT-6428-POE
Switch Type : Ethernet
Number of Interfaces : 10
Package : Yes
Transmission Rate : 10/100/1000Mbps
Communication Mode : Full-Duplex & Half-Duplex
Model Number : UT-6428-POE
