1PCS Industrial Grade Gigabit 1000M 8 Ports Network Unmanaged POE Ethernet Switch 2 Optical Fiber SC DIN-rail UT-6410G-8GT2GSC
The UT-6410G series unmanaged Gigabit industrial Ethernet switches support 8 10/100/1000Base-T Ethernet ports (IEEE802.3af/at(POE)
compatible) and 2 1000Base-X ports. Each POE port can provide up to 30W of power to connected devices (such as surveillance cameras, wireless access points and IP phones) when AC power is not available or limited by other factors. It can work for industrial automation, intelligent transportation, video surveillance and other industrial applications with greater advantages.
Please note this switch is with 2 fiber SC interface, if you need SFP , ST , FC interface etc. Please contact us or leave a message.
UT-6410G-8GT2GSC-POE Details
UT-6410G-8GT2GSC-POE Parameters
>>Protocol Standards
Standards: IEEE 802.3af/at, IEEE802.3, IEEE802.3u, IEEE802.3u IEEE802.3ab, IEEE802.3z
Flow control: IEEE802.3x flow control, backpressure flow control
>>Interfaces
Fiber optic interface: 1000Base-X port (SC/FC/ST/SFP slot)
RJ45 interface: 10/100/1000Base-T port, support POE output
POE pins: V+ ,V+, V-,V- corresponding to pins 1,2,3,6 (default)
>>LED indicator light

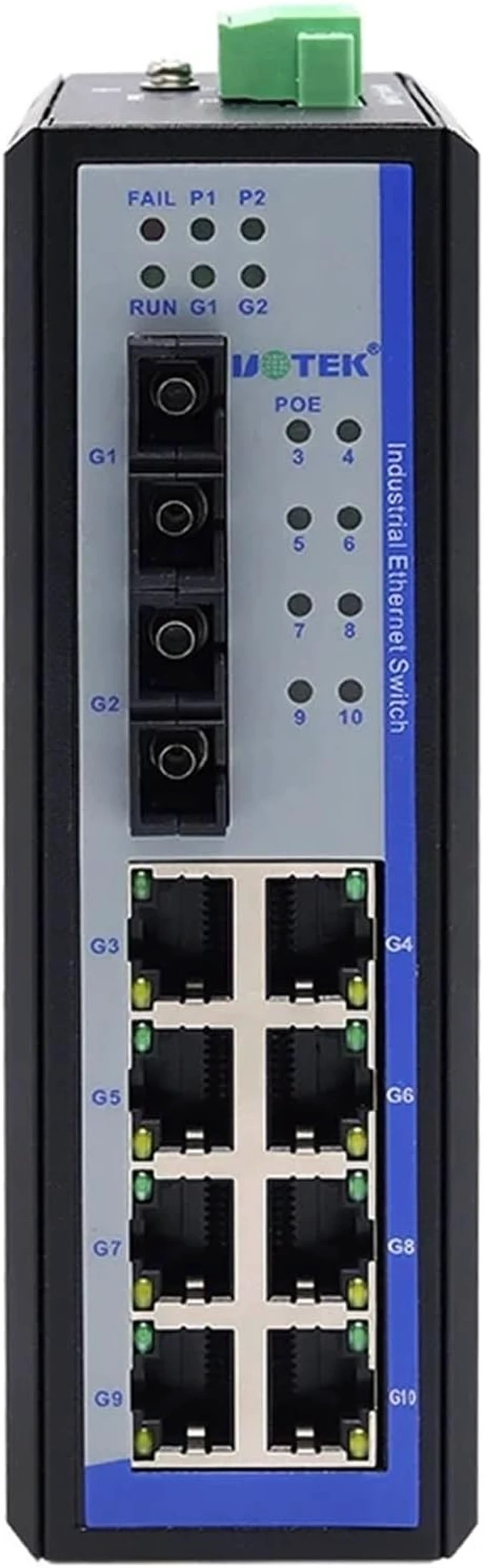

Power Indicator, Optical Port Indicator, RJ45 Indicator Alarm Indicator, POE Indicator
>>Transmission Distance
.5e: 100m
Fiber Optic Module
Single-mode: 1310nm 20/40/60Km
1550nm 80/100/120Km
Multi-mode: 1310nm 2Km
>>Switching Performance
Forwarding rate: 1488095pps
Transmission mode: store and forward
address size: 16K
Cache size: 2Mb
Backplane bandwidth: 22G
Max. frame length:10KB
>>Power Requirement
Voltage input: 48VDC(46-57V),redundant input,support reverse connection protection

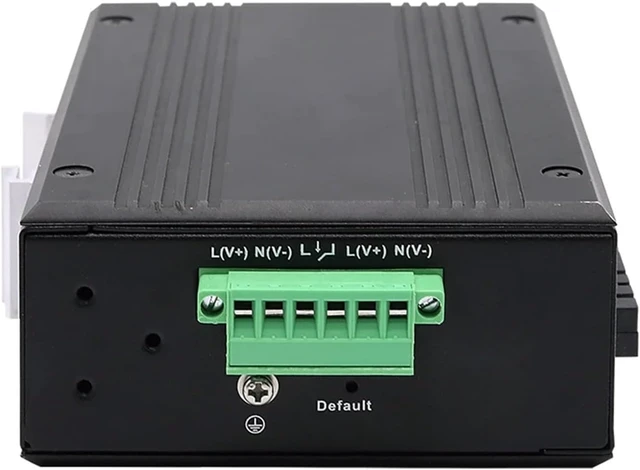

Interface terminal: 1 pluggable 6 pin terminal block
>>Consumption
Max. consumption power for each port about 30 W, total power consumption no more than 150W.
>>Operating Environment
Operating temperature: -40~75°C
Storage temperature: -40~85°C
Relative humidity: 0~95% (non-condensing)
>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail /Wall Mounted
>>Mechanical Dimension
Dimension (W x H x D): 150mm x 47.6mm x 100mm
Package dimension: 250mm x 205mm x 55mm
Weight: 837g
==========
Hign-concerned Chemical : none
Model Number : UT-6410G-8GT2GSC-POE
Switch Type : Ethernet
Number of Interfaces : 10
Package : Yes
Transmission Rate : 10/100/1000Mbps
Communication Mode : Full-Duplex & Half-Duplex
Model Number : UT-6410G-8GT2GSC-POE
