Mini Industrial 5-Port Gigabit PoE+ Switch (4 PoE+ Ports + 1 Uplink), Unmanaged 10/100/1000Mbps Ethernet Switch, 30W/Port 120W Total, 12-48V DC Input, DIN Rail Mount, Rugged Metal Housing
- - :5-4 x 10/100/1000BASE-T PoE+ ports (IEEE 802.3at, auto-MDI/MDI-X) + 1 x 10/100/1000BASE-T standard port.
- - :1248V DC power range adapts to diverse industrial environments; scalable PoE budget (60W/90W/120W) matches your voltage supply without wasted capacity.
- :IP40-rated dustproof metal housing survives harsh conditions; 40°C to 80°C operating range ensures reliable performance in extreme heat or freezing environments.
- - :Anti-vibration and anti-impact performance, works in ultra-wide temperature range of -40°C~80°C for harsh industrial environments.
- :Tool-free DIN-Rail mounting with included 35mm bracketsnap onto any standard DIN rail slot for instant industrial-grade installation.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

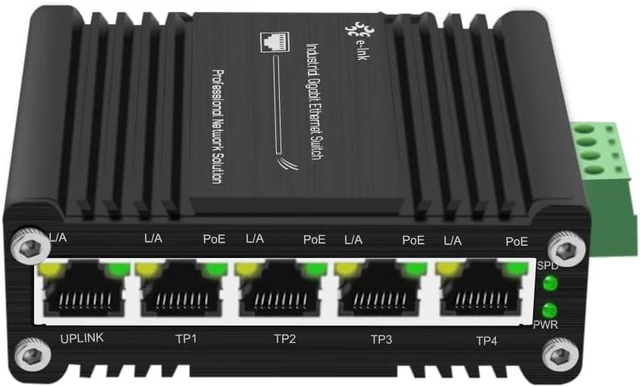

ZP-HIMC005GP is a Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Specification:
Ethernet
Standards: IEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3ab Gigabit EthernetIEEE 802.3x Full-Duplex Flow ControlIEEE 802.3az Energy Efficient Ethernet (EEE)IEEE 802.3af/at Optional
Forward & Filtering Rate: 14,880pps (10Mbps)148,800pps (100Mbps)1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking

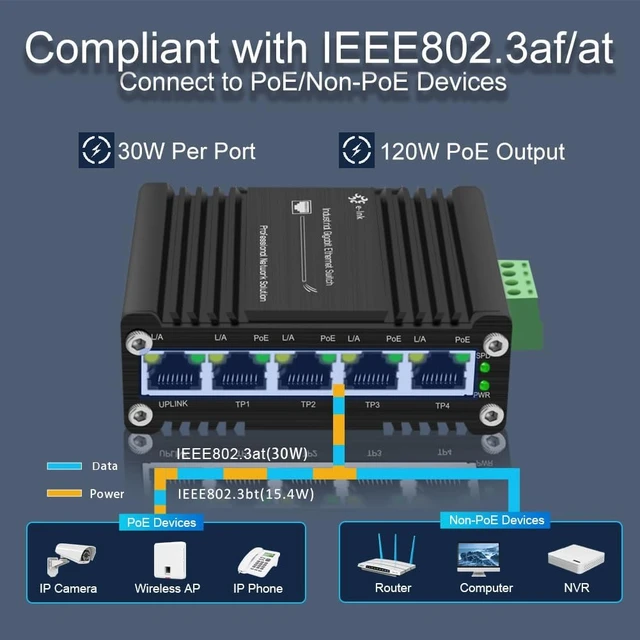

PoE (Power over Ethernet) Standard:IEEE802.3af/at
Port:RJ45

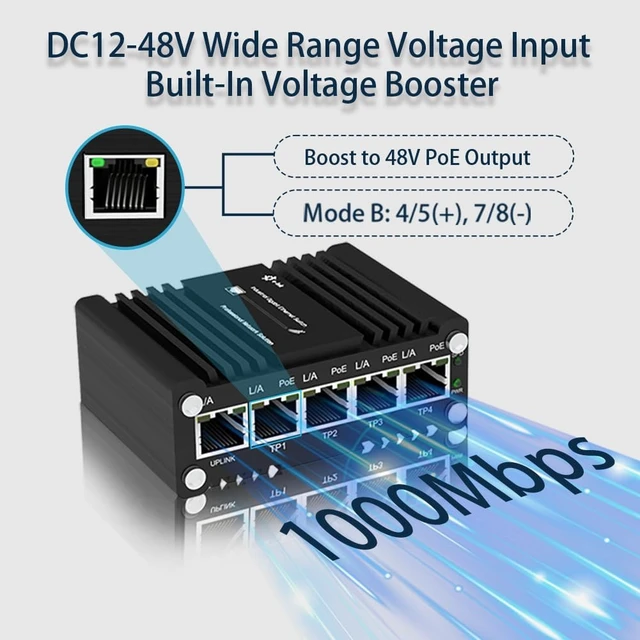

Power Pin Assignment4/5(+), 7/8(-)
PoE Budget:Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 200,000 hrs
Input Power:12~48VDC (Terminal Block)
Power Consumption:<125W (Non-PoE<6W)

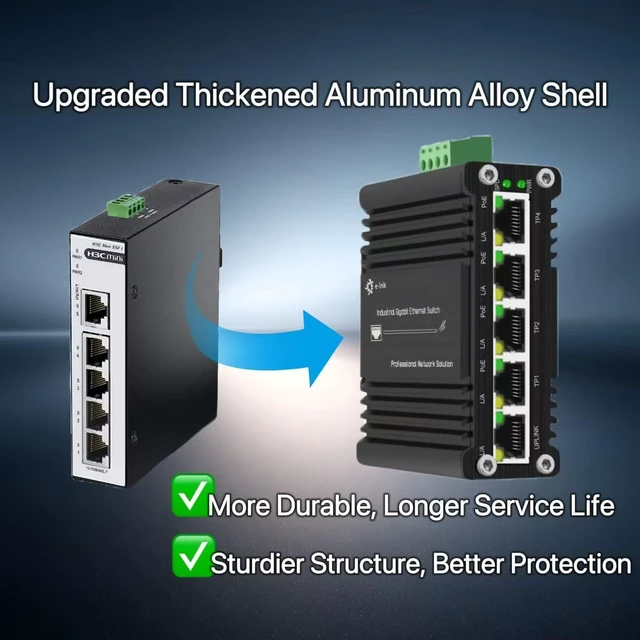

Casing:Aluminum Case
Feature:

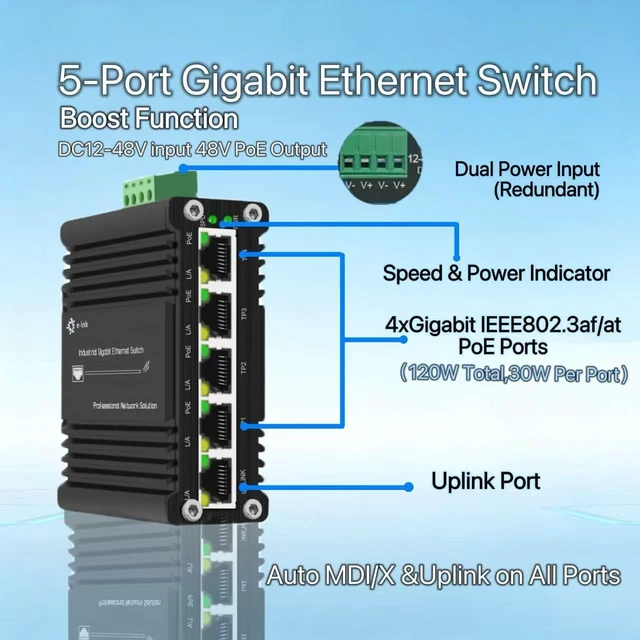

5 x 10/100/1000BASE-T ports
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)
12~48V DC wide range power input
Supports 802.3x Flow control
Supports DIN-Rail and Wall-mount installation
Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Industry standard design, dustproof and close design IP40, rugged high-strength metal case

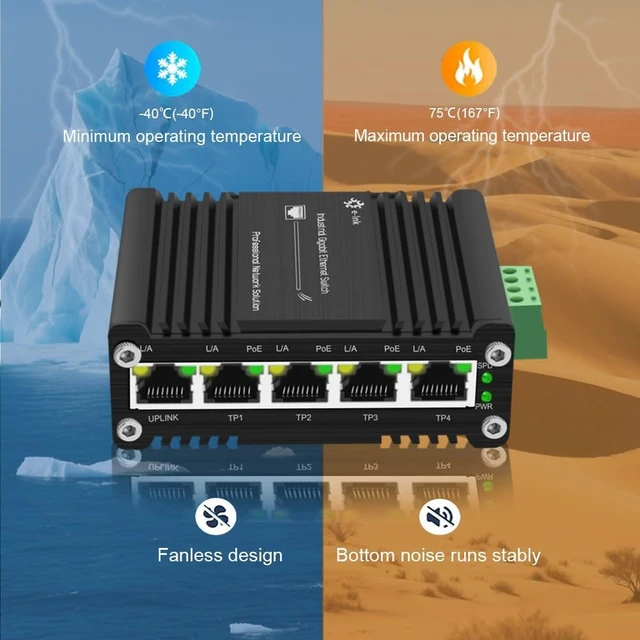

-40°C to 80°C (-40°F to 176°F) operating temperature
Dimensions (WxDxH):95 x 70x 36mm
Weight:0.29Kg
