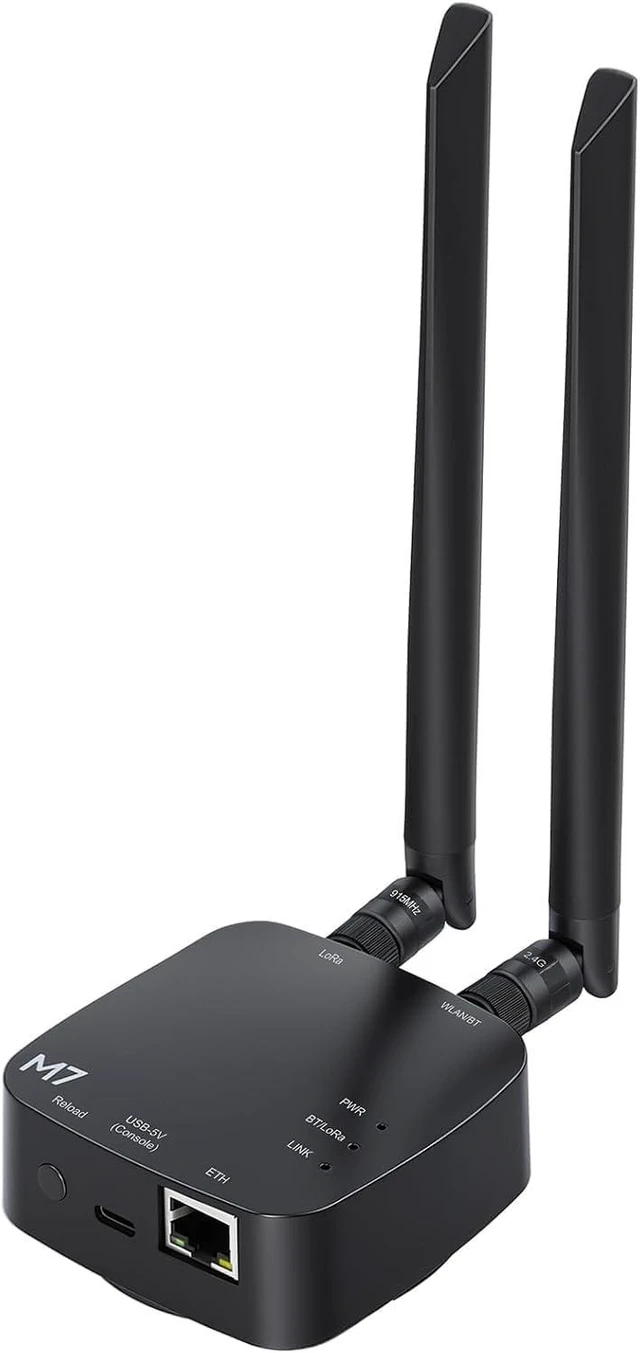

Meshtastic Gateway ESP32-S3 LR1110 Transceiver with Ethernet PoE
- ThinkNode M7 Indoor Wireless Communication Device Support 2.4G WiFi Bluetooth 5.0, 915MHz
- Triple Wireless Module: Built-in ESP32-S3 dual-core 240MHz processor paired with LR1110 LoRa chip; integrates 2.4GHz WiFi, BLE 5.0 and long-range LoRa communication; supports 915MHz regional frequency bands for cross-region IoT deployment
- Ready for Meshtastic Networks: Pre-installed Meshtastic firmware for plug-and-play deployment, reducing setup time; Quickly connect compatible Meshtastic devices to build or expand wireless mesh networks for communication and data transmission
- PoE-Powered for Flexible Deployment: Supports IEEE 802.3af Power over Ethernet as well as USB Type-C power, reducing cable clutter and simplifying installation. The compact enclosure supports wall mounting, desktop placement, or cabinet installation for convenient deployment
- Detachable Antennas: Comes with independent LoRa RP-SMA antenna and WLAN/BT antenna; extended signal coverage eliminates indoor dead zones; stabl
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Main Chip ESP32-S3 Processor Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz System memory 512KB SRAM8M PSRAM Storage 4M Flash, 384KB ROM Development Language MicroPython, C/C++ Development Environment ESP-IDF, Arduino IDE Configuration Interface Meshtastic Official App Maximum distance 8-10KM Bluetooth Bluetooth Low Energy and Bluetooth 5.0 WiFi Support 802.11a/b/g/n2.4GHz LoRa LR1110, Supports US915MHz Ethernet Interface RJ45, WAN/LAN, 10/100 Mbps, PoE supported USB interface Type-C: Debugging/Power Supply Port, 5V/1A LoRa Antenna Connector RP-SMA Female Connector, External Antenna Boot Button Enter programming mode; the device communicates with the programming tool (internally reserved, hidden). Power Input Supports USB 5V/1A or Ethernet power supply (37V57V DC [IEEE 802.3af]) Specifications of ThinkNode M7 Meshtastic Gateway
