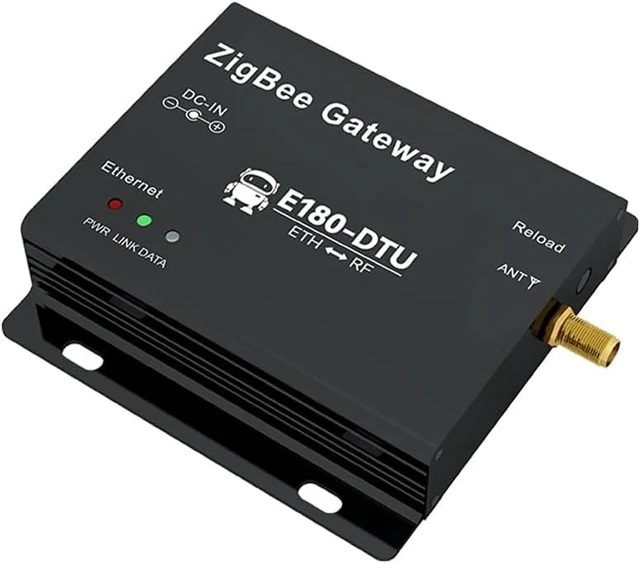

Zigbee Gateway RF to Ethernet E180-DTU(Z20-ETH) 20dbm 1.3km Zigbee3.0 TCP UDP HTTP MQTT at Commands Star/Mesh Network

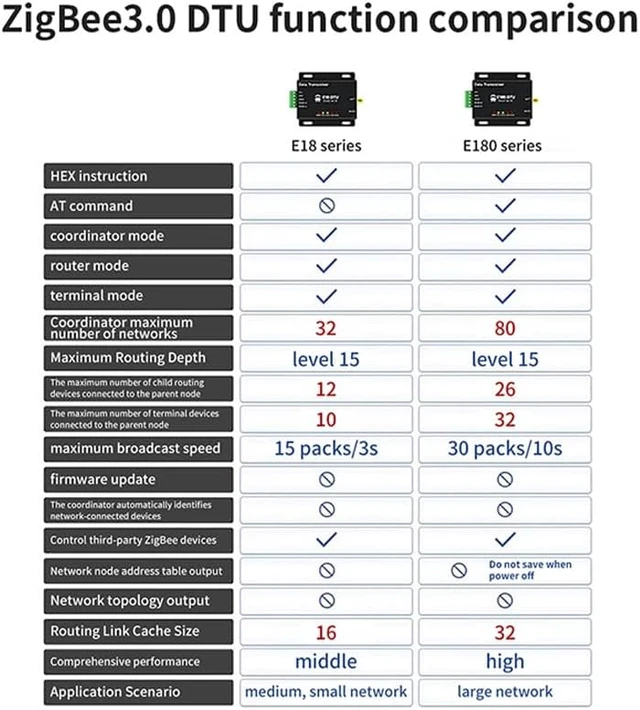

Centralized network management: ZIGBEE 3.0 security standard centralized network access mechanism, data security and reliability; Interchange: conforms to zigbee 3.0 standard network mechanism, compatible with ZCL network protocol; Large capacity: 256K capacity flash, 32K capacity RAM, the maximum number of network nodes can be expanded to 80;

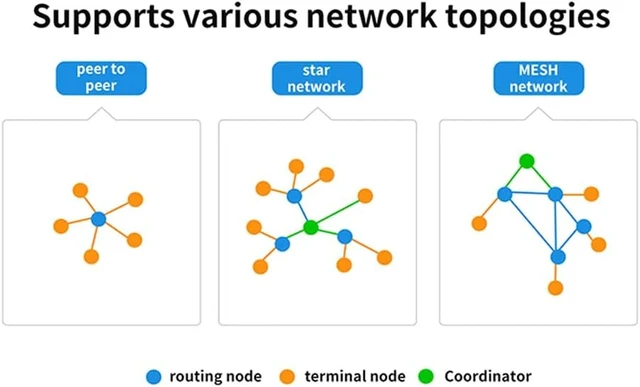

Role switching: Users can make the device switch between the three types of coordinator, router and terminal through serial port instructions; Support a variety of network topologies: point-to-point, star network, MESH network; Network self-healing: when the middle nodes of the network are lost, a new Mesh topology is automatically formed, and the lost nodes are automatically recovered after restart;
Automatic routing: the module supports the network routing function; Open and close network networking: the coordinator controls the opening or closing of the network. During the time period of the open network, the devices meeting the ZigBee3.0 standard can join the network, and any device cannot join after closing the network. If the coordinator is not closed after opening the network, it will be automatically closed after 180 seconds.
One-click network addition: the node does not need to set the PANID and channel, but only need to trigger the network addition within the window time of the coordinator open network; Automatic channel and PANID: The coordinator automatically creates a network in the optimal channel and automatically assigns the PANID, avoiding duplication with other coordinators.
Address search: the user can find out the corresponding short address according to the MAC address (unique, fixed) of the added network node, and can also find the corresponding long address of each node in the network according to the short address of the node; Data security: integrated ZIGBEE 3.0 security communication standards, the network contains multi-level security keys;
