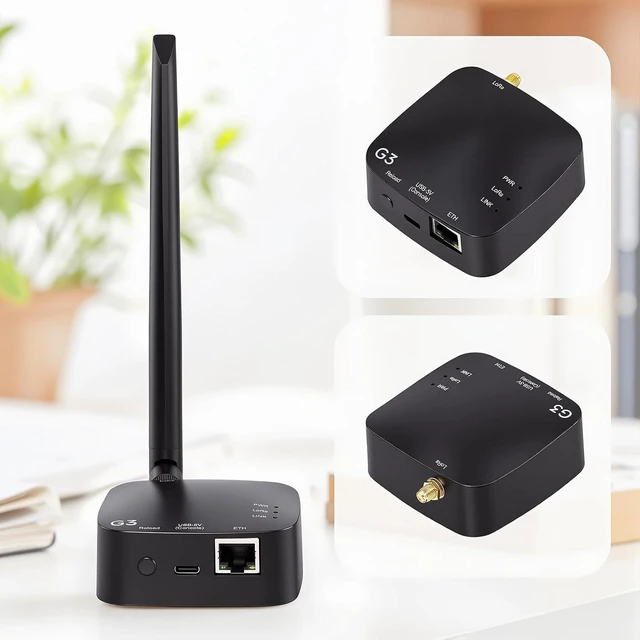

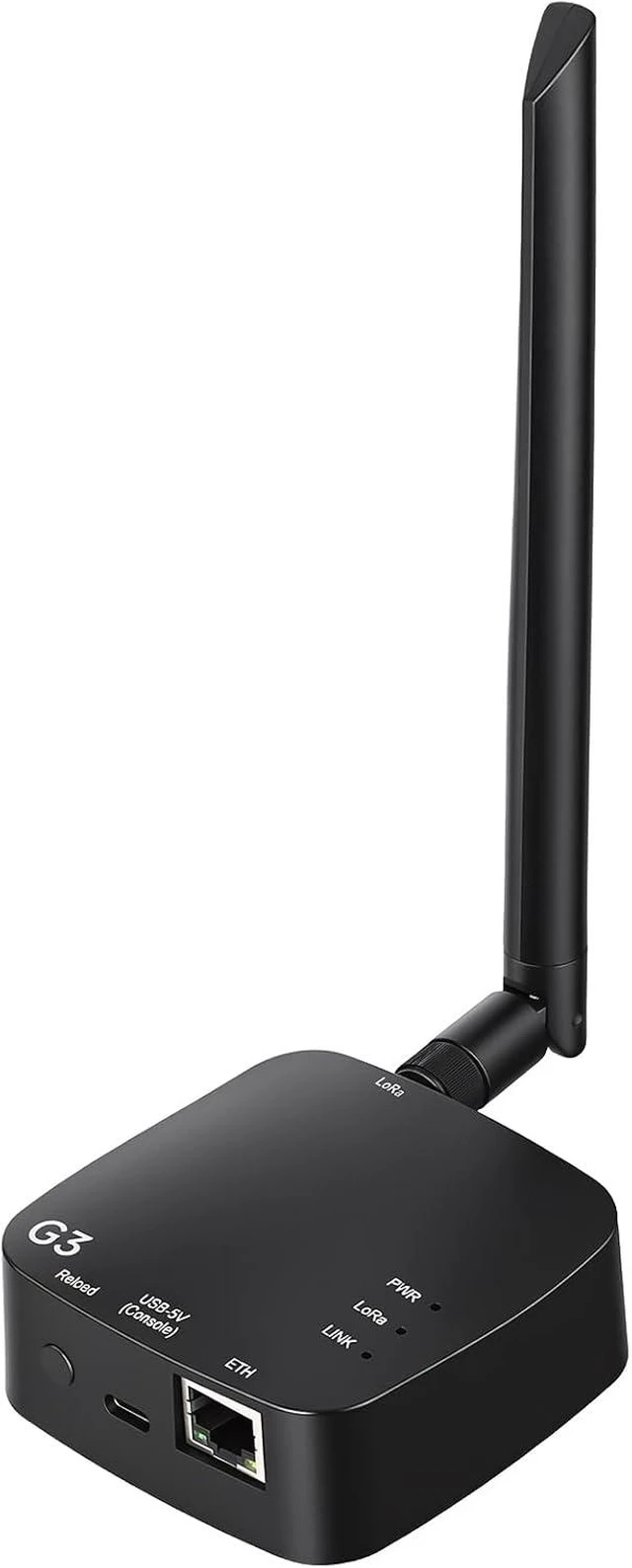

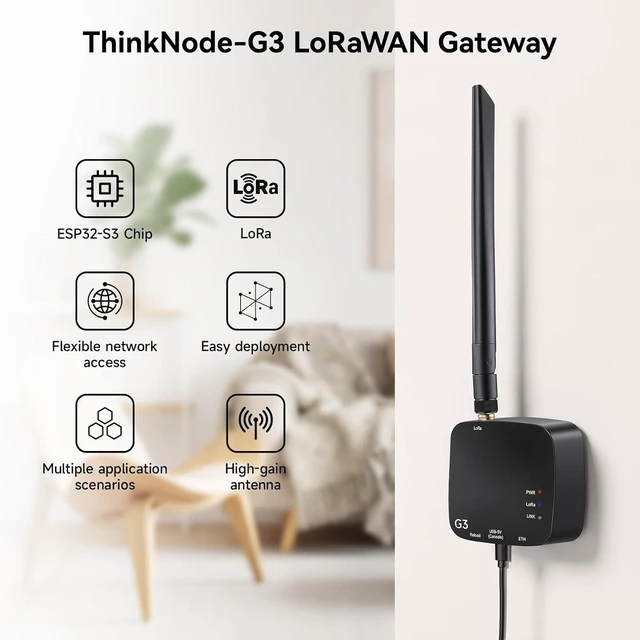

ELECROW LoRaWAN Gateway ThinkNode G3 with ESP32-S3 Processor & SX1262 Chip
- Indoor Single-Channel LoRaWAN Gateway, Wi-Fi & Ethernet Supported, Ideal for Smart Home, IoT Applications (915 MHz)
- ESP32-S3 & SX1262 Hardware: Built with a 240MHz dual-core ESP32-S3 and Semtech SX1262 LoRa transceiver, ThinkNode G3 provides low-power LoRaWAN connectivity. The internal TCXO improves frequency stability for reliable IoT data communication

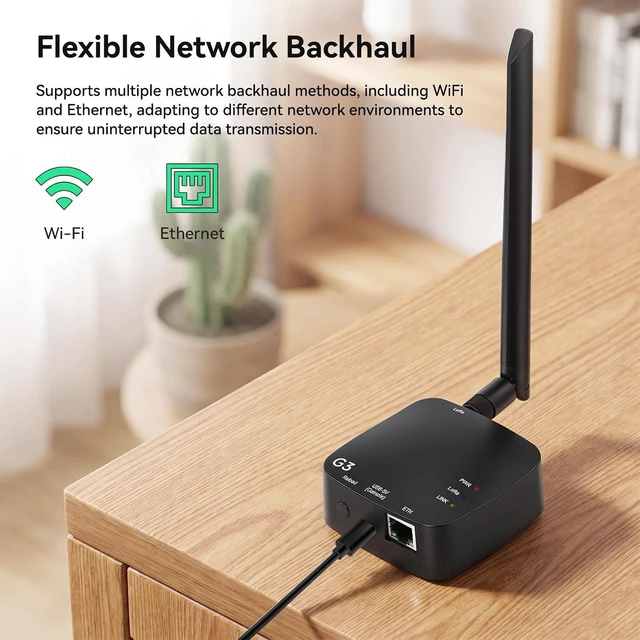

- WiFi & Ethernet Backhaul: Connect the gateway to your network through 2.4GHz Wi-Fi or Ethernet. Use the web console to select the network mode, enter your Wi-Fi credentials or wired settings, and configure the gateway for cloud connectivity

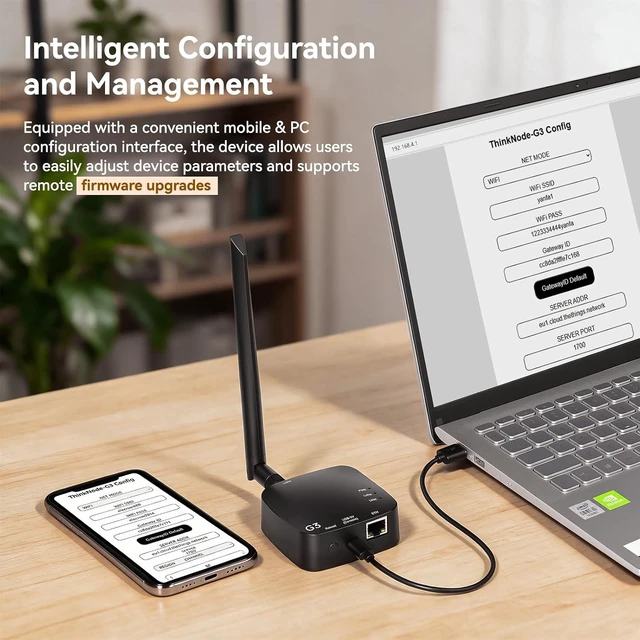

- Web Configuration & OTA Updates: Configure network and LoRaWAN settings from a phone or PC through the built-in web interface. Set the gateway ID, server address, region, channel, spreading factor, and time zone, then apply changes and use OTA firmware upgrades for remote maintenance
- SingleChannel LoRaWAN Gateway: Designed for single-channel LoRaWAN projects, G3 supports US915 frequency band
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

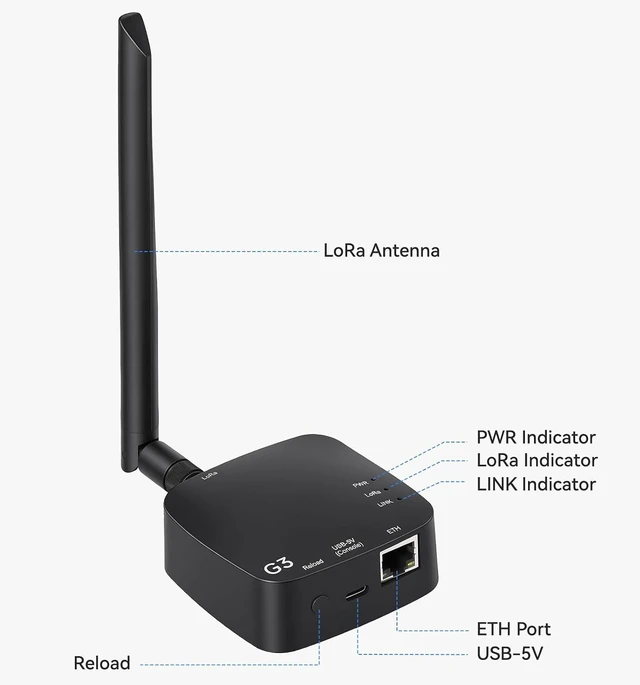

Main Processor ESP32-S3-WROOM-1-N8R8 CPU/SoC Equipped with high-performance Xtensa32-bit LX7 dual-core processor Frequency Up to 240MHz System Memory 512KB SRAM, 8M PSRAM Storage 8M Flash384KB ROM Development language MicroPython, C/C++ Development environment ESP-IDF, Arduino IDE Network Config Interface Self-developed web console with network and LoRaWAN server configuration, OTA upgrade WiFi Support 802.11 b/g/n, 2.4GHz Bluetooth Bluetooth Low Energy and Bluetooth 5.0 LoRa SX1262 LoRa Transceiver, US 915MHz/EU 868MHz (External antenna) Ethernet port RJ4510/100Mbps USB Interface Type-C, debugging, power supply interface LoRa antenna interface RP-SMA Reload Button Device restart, debugging, and factory reset Power Input 5V/1A, supports USB or lithium battery power supply. Power consumption: 110mA@5V (MCU+LoRa transceiver) Specifications of ThinkNode G3 LoRaWAN Gateway
