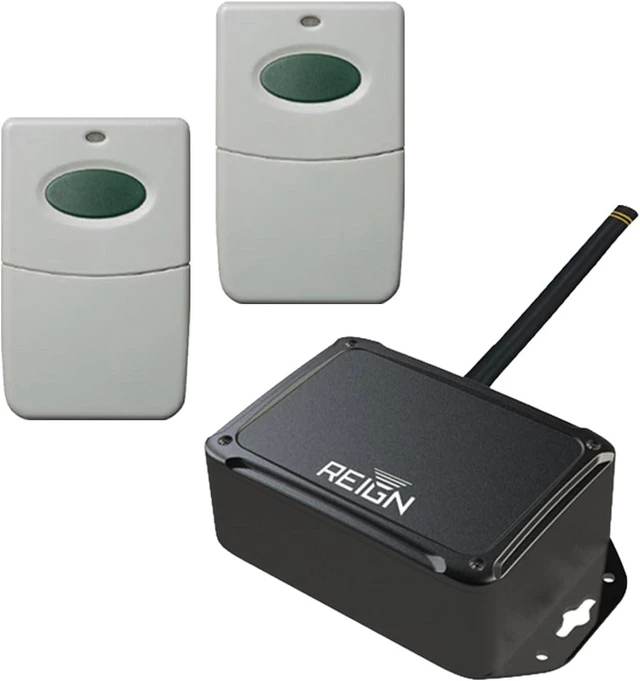

Reign XRE-100 Long Range Relay Extender Kit with 2 TX-100 Transmitters Wireless Gate & Access Control System, AES Encrypted, Up to 1/2 Mile Range

The REIGN XRE-100 Long Range Relay Extender Kit is a professional wireless access control solution designed for long-distance gate and automation applications. This package includes the XRE-100 wireless relay extender receiver and two TX-100 long-range encrypted transmitters, providing dependable wireless communication up to 1/2 mile through obstructions.
The XRE-100 features dual relay inputs and outputs, battery backup capability, automatic synchronization every 30 seconds, and field-pairable configuration for flexible installation and reliable operation. The included TX-100 transmitters feature adjustable transmit power, LED transmission verification, AES encryption security, and durable compact construction for professional gate automation applications. Ideal for residential, commercial, industrial, agricultural, and long-driveway access control systems.
Technical Specifications XRE-100
Brand: REIGN / Transmitter Solutions
Model: XRE-100
Product Type: Wireless Relay Extender Receiver
Power Input: 1224 Volt AC/DC
Relay Inputs: 2
Relay Outputs: 2
Relay Rating: 10A 250VAC / 28VDC
Idle Current Draw:
12V: 50mA
24V: 25mA
Transmission Current Draw:
12V: 1A
24V: 500mA
Wireless Range: Up to 1/2 mile through obstructions
Synchronization: Automatic every 30 seconds
Pairing: Field pairable
Security Encryption: AES
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Technical Specifications TX-100
Model: TX-100
Product Type: Long-Range Wireless Transmitter
Adjustable Transmit Power: Yes
LED Verification Indicator: Yes
Wireless Range: Up to 1/2 mile through obstructions
Security Encryption: AES
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Item Dimensions TX-100
Width: 2-3/8 in
Height: 3-1/2 in
Depth: 3/4 in
Applications
Automatic gate systems
Long driveway access
Warehouse entry systems
Commercial access control
Ranch and agricultural gates
Relay-trigger automation systems
Wireless activation systems
COMPATIBILITY
Compatible with most gate operators using dry-contact relay inputs
Compatible with residential and commercial access control systems
Ideal for Viking, LiftMaster, Nice Apollo, FAAC, DoorKing, and other relay-trigger gate systems
Professional installation recommended
Included Components
1 × REIGN XRE-100 Relay Extender Receiver
2 × TX-100 Long-Range Transmitters
Installation Instructions
Safety & Performance Features
AES encrypted communication
Automatic synchronization
Battery backup support
Adjustable transmit power
Long-range wireless operation
Dual relay functionality
