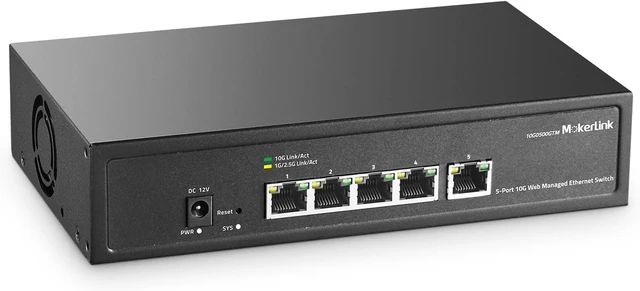

MokerLink 5 Port 10Gbps Managed Switch, 5x10G RJ45 Ethernet Ports, 10G/5G/2.5G/1000M/100Mbps, 100Gbps Bandwidth, Metal L2 Web Managed Network Switch

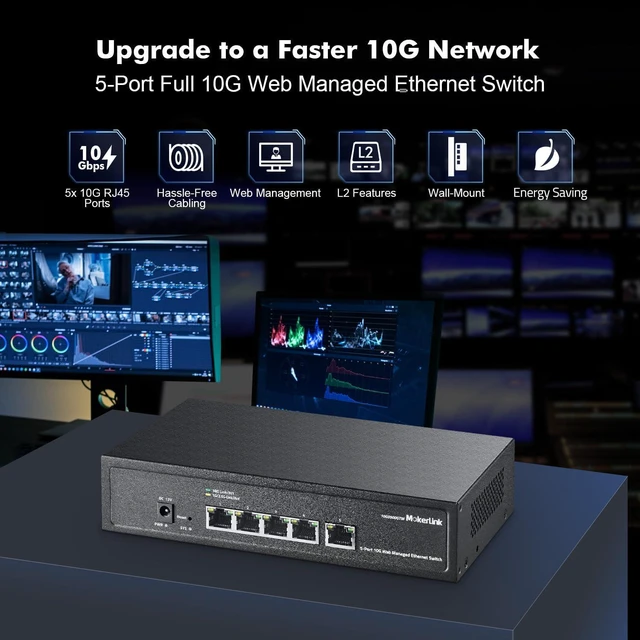

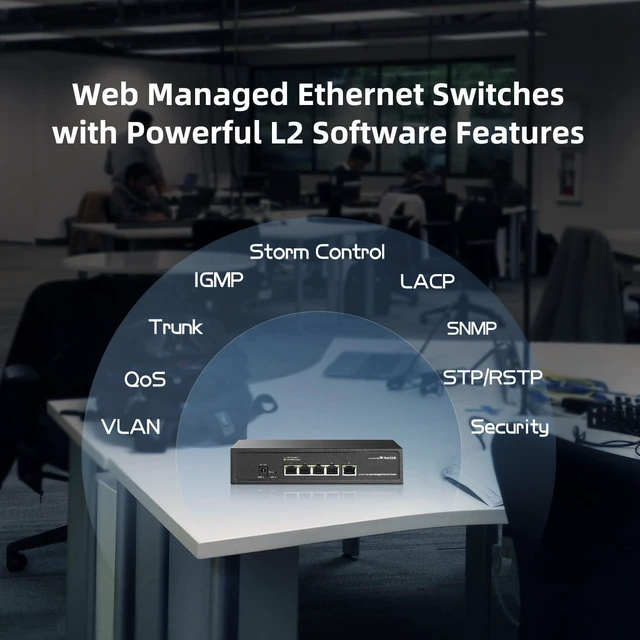

10G0500GTM is a L2 Web Managed Ethernet Switch with 5x10GbE Ethernet ports. 5 ethernet ports provide either 100M, 1G, 2.5G, 5G and 10G connectivity, Each port automatically detects which speed is needed. It provides L2 management features such as VLAN, QoS. Trunk, IGMP, RSTP, etc.

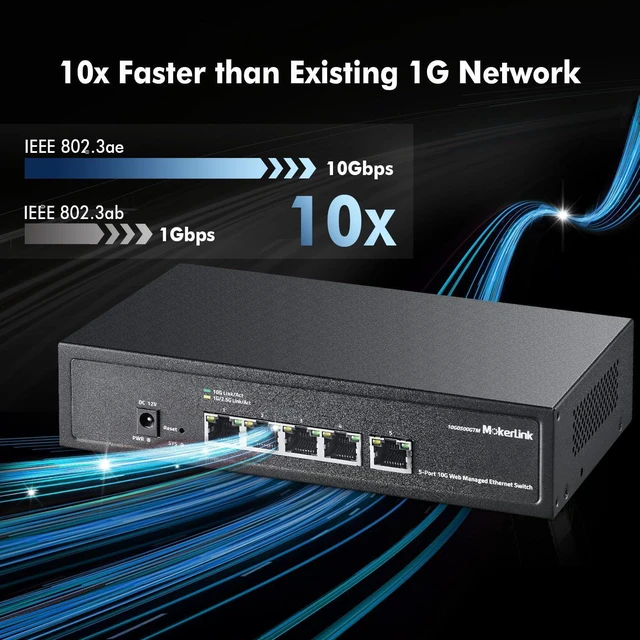

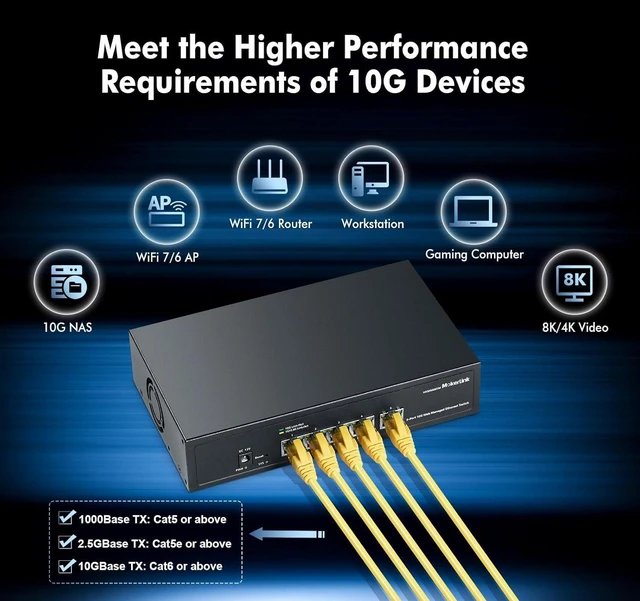

5× 10Gbps ports smash the 10G barrier and unlock the full potential of WiFi 7/6 APs and cores server. Supports cat5e and above cables, 10x faster network bandwidth.
Equipped with a smart silent fan that adjusts the fan speed according to the temperature. It supports the IEEE 802.3az Energy-Efficient Ethernet standard(EEE). Switches automatically adjust power consumption according to the link status and cable length,
The switch with surge protector function that keep your devices safe. Surge Protection: Common mode 4KV, differential mode 2KV; Electrostatic ESD: Air 8KV, Contact 6KV.
Flexible deployment options for wall-mount or desktop in your office and home, meet the network environment requirement.

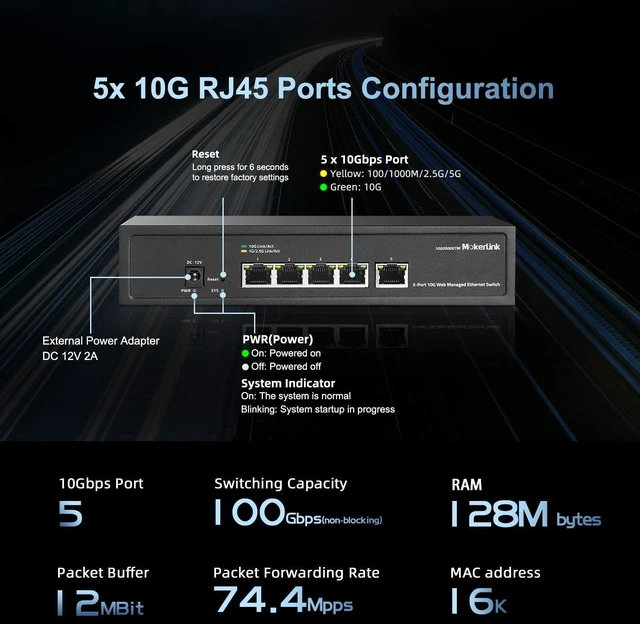

1Flexible Management2802.1Q Tag-Based VLAN3QoS (Quality of Service)4Link Aggregation5Loop Detection Model 10G0500GTM (5-Port 10G Web Managed Ethernet Switch) Interface 5* 10G RJ45 ports Port Standard IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE 802.3bz (5G Ethernet), IEEE 802.3z (Gigabit Ethernet), IEEE 802.3ae (10 Gigabit Ethernet), IEEE802.3x (Flow Control) Switching Capacity 100Gbps Packet Forwarding Rate 74.4Mpps Packet Buffer 12Mbit MAC Address Table 16K Jumbo Frame Support Power Supply DC 12V 2A, Mainboard Power Consumption 10.35W Structure Information Product Dimensions :200*118*44mm Packaging Dimensions :245*190*60mm, Product Net Weight: 0.35KG, Product Gross Weight: 0.48KG Environment Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensing Mounting Desktop / Wall-mount, Metal Housing LED Indicator PWR On: Powered on, Off: Powered off; SYS On: The system is normal, Blinking: System startup in progress; 1-5 Green Led On: 10G Link normal, Yellow Led On: 100/1000Mbps/2.5Gbps /5Gbps Link normal, Off: Link blocked, Blinking: Data transmitting; RESET Long press for 6 seconds to restore factory settings Fan Quantity 1 Package Contents switch 1pcs, power cord 1pcs, instruction manual 1pcs SMART FEATURES L2 Function: VLAN, QoS, IEEE 802.3ad LACP Trunk-Static Trunk, IGMP Snooping, Port Mirroring, Broadcast Storm Control See More 5x 10G Ports for Servers or Aggregation Switch Energy efficient Surge Protection Mounting flexibility Technical Parameter
