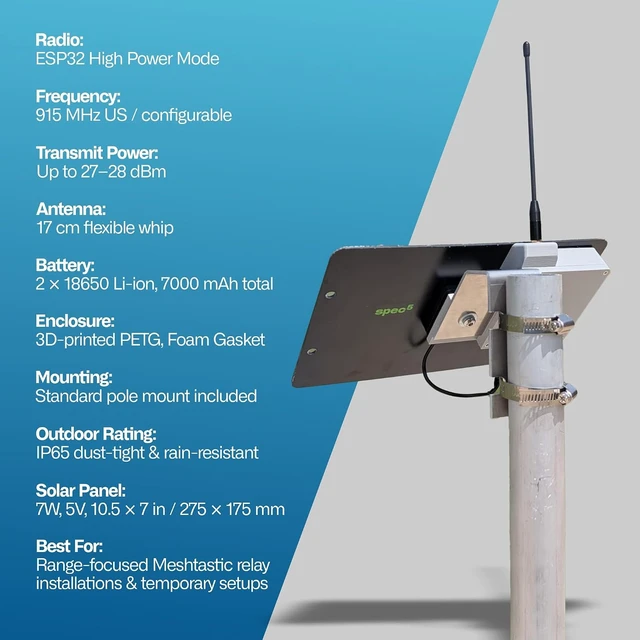

Relay Lite ESP32 Solar LoRa Mesh Repeater, Meshtastic Network Extender, Standard Pole Mount, 7W Solar Panel, IP65 Enclosure, 915 MHz, High Power Mode, 28 dBm
- Compact Mesh Coverage Extender: Relay Lite expands your Meshtastic LoRa mesh network by adding a compact repeater node to provide wider coverage across properties, buildings, campsites, farms, neighborhoods, and outdoor setups.
- ESP32 High Power Mode Up to 28 dBm: Built with the ESP32 platform for higher transmit power (up to 28 dBm), making it a strong choice for range-focused deployments and RF-challenged areas where stronger relay performance is preferred.
- Solar-Powered Field Design: An integrated 7W solar panel enables extended outdoor operation when installed in a location with adequate sunlight. For best performance, place the unit where it can receive consistent daily sunlight.
- Standard Pole Mount Included: Comes with a fixed bent aluminum bracket and 2 pipe clamps for stable mounting on poles up to 2.5 inches (63.5 mm) in diameter, ideal for fixed outdoor relay placement.
- IP65 Outdoor Enclosure: 3D-printed PETG housing with a foam rubber gasket seal is designed to resist
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

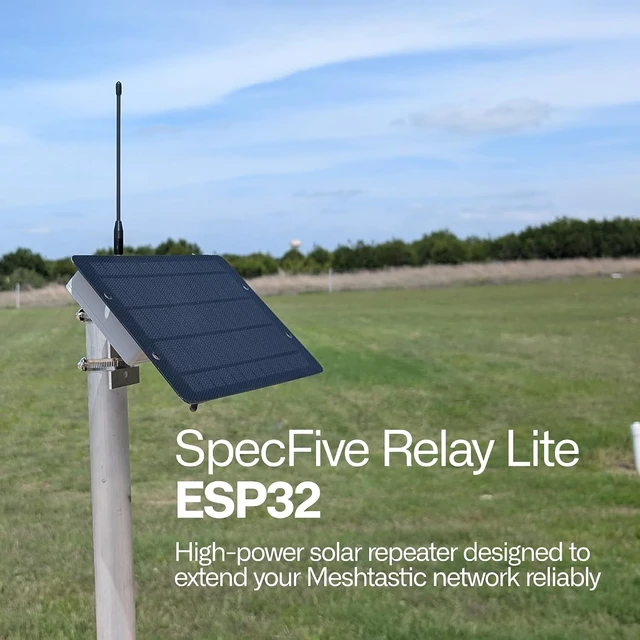

The SpecFive Relay Lite ESP32 Meshtastic Version is a compact solar-powered LoRa mesh repeater designed to help extend and strengthen your Meshtastic network coverage. Built for users who want a smaller, more affordable relay node, Relay Lite helps fill coverage gaps in outdoor spaces, buildings, farms, neighborhoods, campsites, and property-based mesh deployments.
This ESP32 version is designed for higher transmit power (up to 28 dBm). It is a strong choice for users who want range-focused performance or need a relay node for RF-challenged areas. Because the ESP32 platform consumes more power than the nRF52 version, this model is best installed in locations with consistent sunlight exposure, preferably 4+ hours of direct sun per day.
Relay Lite is built for practical outdoor deployment. The integrated 7W solar panel supports extended outdoor operation with adequate sunlight, while the internal 2-cell power system provides backup runtime when sunlight is unavailable. The IP65-rated PETG enclosure helps protect the internal electronics from dust and rain, and the included standard pole-mounting system supports fixed installation on poles up to 2.5 inches (63.5 mm) in diameter.
Choose Relay Lite ESP32 when you need a compact, high-power Meshtastic relay node with up to 28 dBm transmit power to expand your mesh network for open-sky or range-focused deployments
