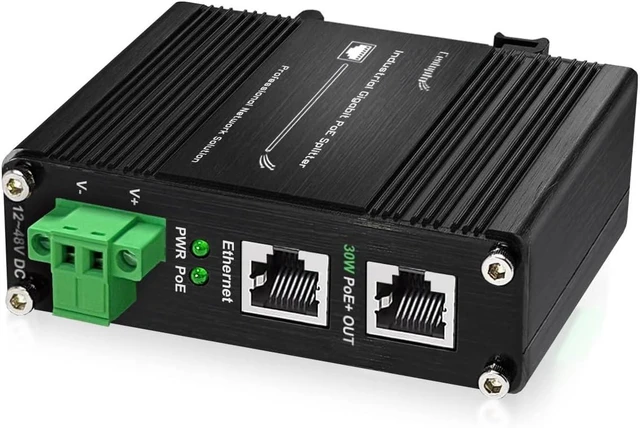

1-Port 10/100/1000 Base-T RJ45 to 1-Port IEEE802.3at 30W PoE+ Injector
- Industrial Gigabit 30W PoE+ Injector,-40°C ~75°C,DIN-Rail Mount,12~48V DC Power Input &aluminum housing

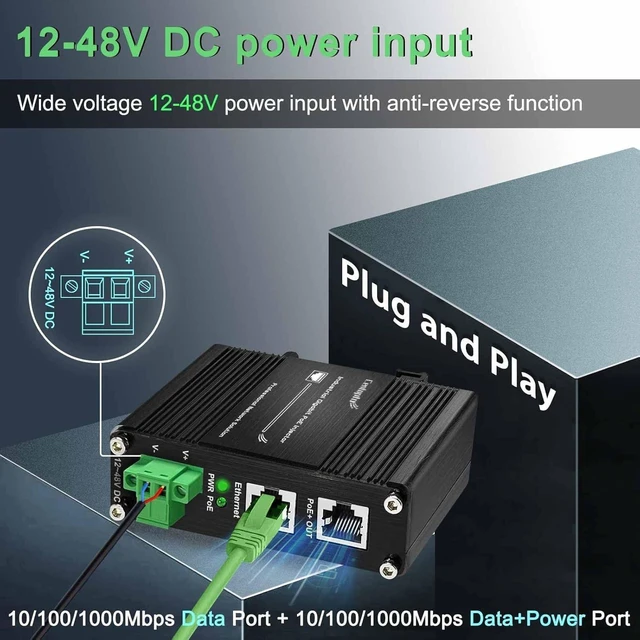

- [12~48V DC Input] The PoE injector supports 12~48V DC input and boost to 48V PoE output. It will solve the problem that you only have 12V or 24V centralized power supply.
- [Max 30W PoE Output] With PoE output port, supports IEEE802.3af PoE (15.4W) and IEEE802.3at PoE+(30W). Single port support max 30W PoE.
- Industrial Grade Quality The PoE adapter uses industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.

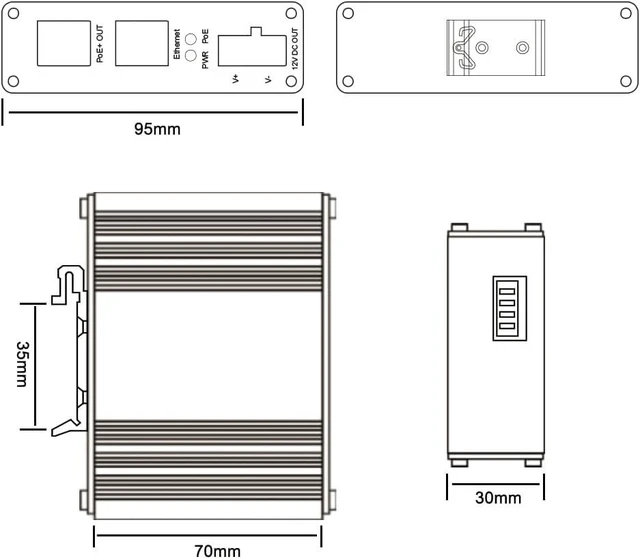

- [Small Size] The PoE injector size is 3.74x2.76x1.18in, it doesnt need large space to install.
- [Din-Rail & Wall Mount] The gigabit PoE injector comes with 35mm Din-rail clip and wall mount accessories.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The PoE Injector is a Hardened Gigabit PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant withI EEE 802.3ab. The PoE Out port compliant with IEEE 802.3 af/at. The POE adapter provides an integrated power solution with 12~48VDC wide range voltage input.
12~48VDC Power Input
RJ45 Ethernet Data Input Port + RJ45 Power Over Ethernet Output Port(Data + Power)
Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment
Support 10/100/1000Base-TX
Power Pin Assignment: 30W--4/5(+), 7/8(-); 60W--1/2/4/5(+), 3/6/7/8(-)
Support DIN-Rail & Wall-mountin stallation.
Extensive LED indicators for PoE diagnostics
Environmentally Hardened -40°C to 80°C(-40°F to 176°F) operating temperature
Package:
1 * PoE Injector
1 * POE injector User Manual
1 * L-Shaped Wall Mount bracket
Note: The Power Supply for POE injector is to be purchased separately.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant withI EEE 802.3ab. The PoE Out port compliant with IEEE 802.3 af/at. The POE adapter provides an integrated power solution with 12~48VDC wide range voltage input.
12~48VDC Power Input
RJ45 Ethernet Data Input Port + RJ45 Power Over Ethernet Output Port(Data + Power)
Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment
Support 10/100/1000Base-TX
Power Pin Assignment: 30W--4/5(+), 7/8(-); 60W--1/2/4/5(+), 3/6/7/8(-)
Support DIN-Rail & Wall-mountin stallation.
Extensive LED indicators for PoE diagnostics
Environmentally Hardened -40°C to 80°C(-40°F to 176°F) operating temperature
Package:
1 * PoE Injector
1 * POE injector User Manual
1 * L-Shaped Wall Mount bracket
Note: The Power Supply for POE injector is to be purchased separately.
