Industrial 9-Port Ethernet PoE+ Switch, Hardened Network Fiber Switch with 6 x 10/100 RJ45 Plus & 3 x 100Base-FX SFP,Support 48-57V DC Input, IEEE802.3af/at, 30W/Port 180W Total, Plug & Play

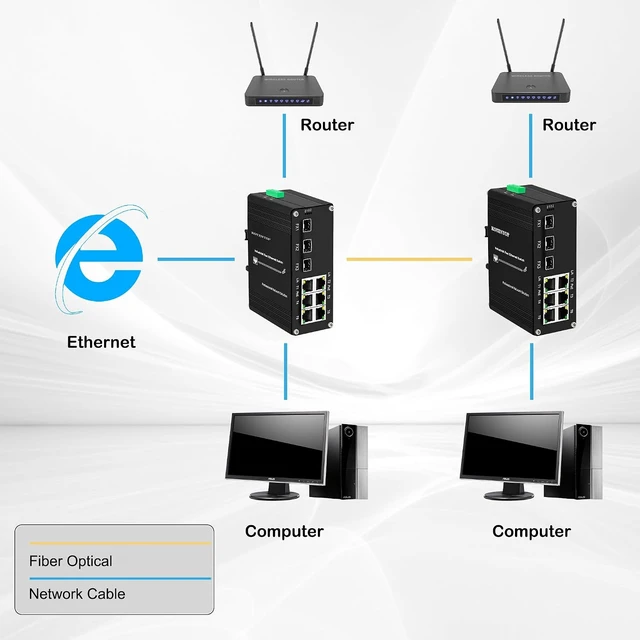

ZP-IMC306GP-SFP is the unmanaged 6-port 10/100Base-T 802.3at PoE + 3-port 100Base-FX SFP hardened Ethernet switch. The Switch has 6 Fast Ethernet ports and 3 SFP fiber ports. TP (RJ45) supports 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features:
Support 6x10/100Base-T + 3x100Base-FX SFP
10/100Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
IEEE802.3af/at compliant
IEEE 802.3az Energy Efficient Ethernet (EEE)
IP40 Aluminum Case
Supports DIN-Rail installation
-40°C to 80°C (-40°F to 176°F) operating temperature

Supports full-duplex/half-duplex modes to effectively reduce latency and increase data transmission speed
Auto-negotiation and Auto MDI/MDIX functions
10/100Mbps Ethernet (PoE) Port,100M SFP Optical Port

No Software Configuration
Dual Redundancy
Up to 180-watt PoE budget
12 ~48VDC Power Input ( 48~57V when PoE in use)

Protects switches from lightning damage, thus effectively protecting the stable operation of the network
Enhance the stability of the monitoring system, and reduce the maintenance work of the engineering staff

The unmanaged Ethernet switch features an aluminum case that is not only fanless for heat dissipation but also durable.

Our SFP hardened Ethernet switches are IP40 rated for dust protection, which effectively prevents external dust from entering the switch and reduces poor contact or other potential problems caused by dust, ensuring smooth network communications.

Fiber optic switch is highly resilient and reliable in harsh environments such as -40°F to 176°F.

Multiple Ports for Multiple Internet Access Needs
Industrial Hardened Ethernet Switch 9 Port PoE Switch is compliant with IEEE 802.3af/at, IEEE 802.3az Energy Efficient Ethernet (EEE) standards, which
can allocate data streams proportionally according to the bandwidth of each WAN port, increasing the utilization of backplane bandwidth and reducing
losses, which is very energy efficient.

Easy to Setup
a) Connect the RJ45 port of the Switch to Network the device with a network cable.
b) Plug in the 155M SFP module and insert the LC connector of the Patch cord into the LC port of the SFP transceiver.
c) After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.
d) After all cables are correctly connected, check the indicator's status and do troubleshooting accordingly.
Industrial 6-Port 10/100T 802.3at PoE + 3-Port 100Base-FX SFP Unmanaged Ethernet Switch Fast Transmission Speed User-friendly 6KV Lightning Protection Function Noiseless & Corrosion Resistance Dustproof Extreme Temperature
