CompuPort 5G LTE High Gain 3/5dBi 15' RG58U Cable with SMA Male 600-960/1710-4200 MHz 5G/4G LTE Omni-Directional Outdoor Pole/Wall Mount Antenna for 5G LTE Cellular Modem Gateways.
- This antenna is ideal for downtown urban settings, RVs or marine installations.
- Its built with a strong fiberglass casing and is designed to cover 5G/4Gand WLAN systems for Cellular, PCS, AWS and LTE frequencies.

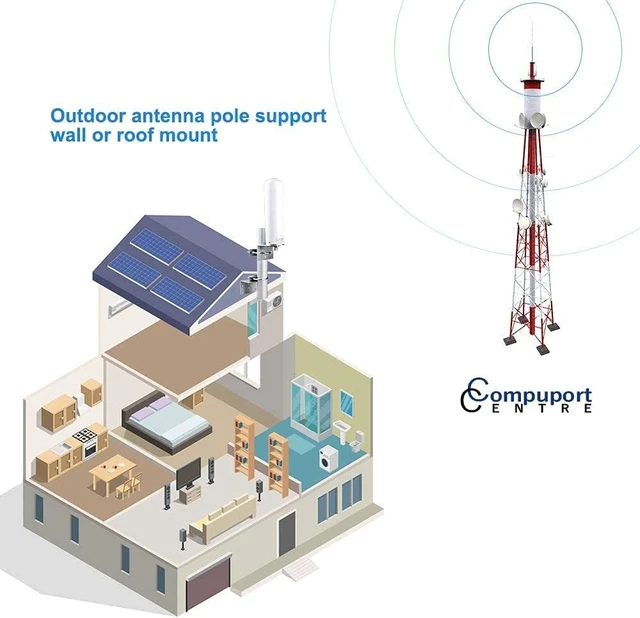

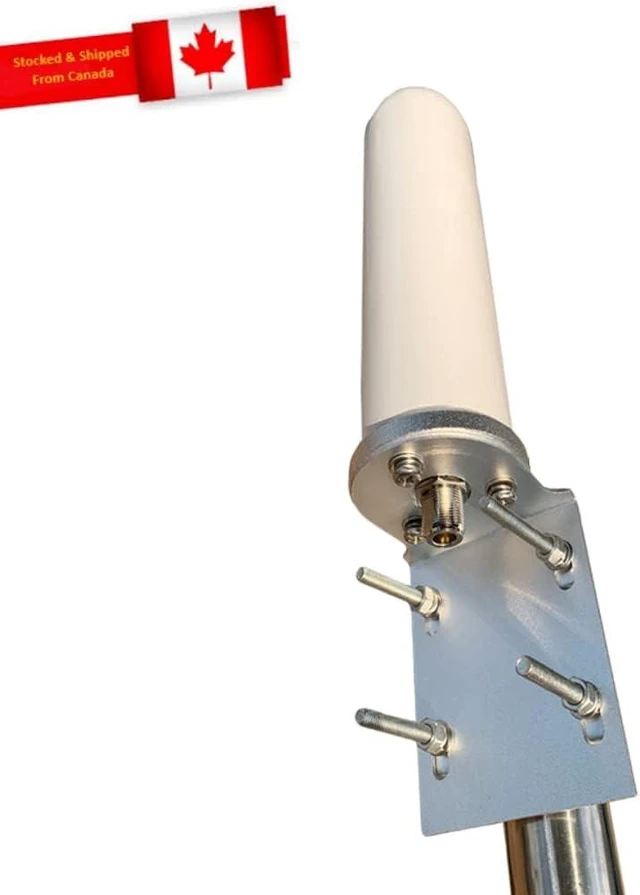

- This Full Band Fiberglass antenna is an omni-directional antenna that gathers signals from all sides and does not need to be pointed toward a cellular tower. Parts includes mounting equipment for either a flat horizontal surface or a wall.It shall be mounted in an upright position for best results.
- Frequency Range 600-960/1710-4200MHz
- Great choice for Urban, downtown Area. It is also recommended for Telematics, Smart metering Antenna solution.
- High gain antenna for an area with poor signal and works with: Microhard, Cradlepoint, Digi, InHand, Sierra Airlink, Teltonika and any other LTE wireless modems/Gateways
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specification:
Electrical:
Frequency Range: 600-960/1710-4200MHz
Gain: 3/5dBi
V.S.W.R: 2.0
Radiation: Omni-Direction
Horizontal Beamwidth:360°
Vertical Beamwidth: 18°
Polarization: Vertical
Lightning Protection:DC Grounded
Maximum Input Power: 100W
Impedance:50
Connector: N Female
Antenna Radome Material:Fiberglass
Mount way: Pole
Diameter of Installation Pole:Ø30~Ø50mm
Mechanical
Dimensions:63x220mm
Weight:0.54KG
Operating Temperature:-40 to+70
Rated Wind Velocity: 60m/s
RoHS Compliant:YES
Electrical:
Frequency Range: 600-960/1710-4200MHz
Gain: 3/5dBi
V.S.W.R: 2.0
Radiation: Omni-Direction
Horizontal Beamwidth:360°
Vertical Beamwidth: 18°
Polarization: Vertical
Lightning Protection:DC Grounded
Maximum Input Power: 100W
Impedance:50
Connector: N Female
Antenna Radome Material:Fiberglass
Mount way: Pole
Diameter of Installation Pole:Ø30~Ø50mm
Mechanical
Dimensions:63x220mm
Weight:0.54KG
Operating Temperature:-40 to+70
Rated Wind Velocity: 60m/s
RoHS Compliant:YES
