Industrial Gigabit 30W PoE+ Injector, 6KV Surge, DIN-Rail
- 12-48VDC Input, -40F to 176F Hardened, PoE Diagnostic LEDs, 328ft Reach, 802.3af Compatible, Wall Mount, , Aluminum Case
- One cabinet, one PoE port: feed a camera or access point from any ordinary non-PoE switch, up to 100m away, with data and power sharing the single output cable
- Full 30W of IEEE802.3at PoE+ on the output, with 802.3af 15.4W devices supported too, enough for PTZ domes, heated housings, outdoor access points and IP intercoms
- Runs on the power you already have: a 12 to 48VDC input is stepped up internally to PoE voltage, so a solar array, battery bank or 24V control panel needs no separate 48V supply
- Survives the strike: 6KV lightning surge protection plus 4KV contact and 8KV air discharge ESD on both ports, built for pole cameras and long outdoor runs exposed to storms
- Built for the panel, not the desk: -40F to 176F fanless operation, 35mm DIN-rail or wall mount, plus LED indicators that let an installer read faults from the ladder
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Max. Power per Port 30W Max per port (Alternative B Mode) Input Power 12~48VDC (Terminal Block) Mounting Options DIN-Rail / Wall-mount Operating Temperature -40°C to 80°C (-40°F to 176°F) Standards IEEE802.3af/at Power over Ethernet Casing Aluminum Case Discover the power and reliability of the xoxnikior INJ301-30, a robust gigabit ethernet injector engineered for tough industrial environments. This gigabit PoE+ ethernet injector features a fiber configuration,supporting 10/100/1000Base-TX for seamless connectivity. Its wide 12-48VDC power input range offers flexibility in installation for various power supply scenarios.
Designed to endure harsh conditions, this gigabit ethernet injector withstands vibrations and shocks, operating effectively across a wide temperature range. Certified by CE and FCC and subjected to rigorous 100% burn-in testing, it ensures exceptional performance and reliability.
deal for upgrading existing networks or setting up new ones, the xoxnikior INJ301-30 is an economical choice for industrial Ethernet connectivity. Equip your network with the xoxnikior INJ301-30 PoE+ ethernet injector for industrial-grade quality and performance.

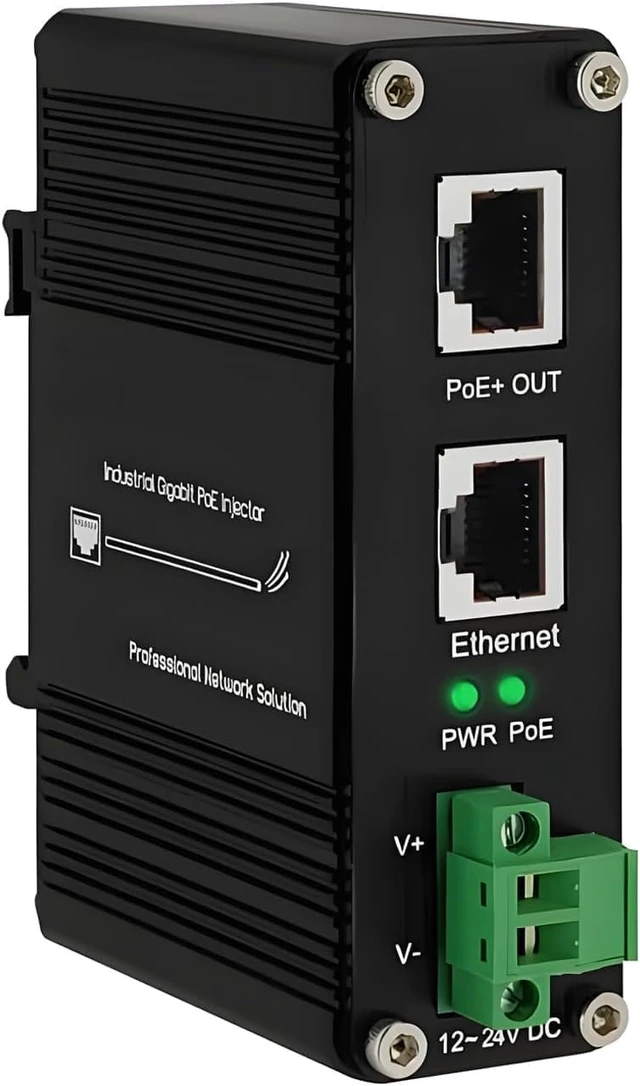

Product front photo Product back photo Product vertical photo
Designed to endure harsh conditions, this gigabit ethernet injector withstands vibrations and shocks, operating effectively across a wide temperature range. Certified by CE and FCC and subjected to rigorous 100% burn-in testing, it ensures exceptional performance and reliability.
deal for upgrading existing networks or setting up new ones, the xoxnikior INJ301-30 is an economical choice for industrial Ethernet connectivity. Equip your network with the xoxnikior INJ301-30 PoE+ ethernet injector for industrial-grade quality and performance.
Product front photo Product back photo Product vertical photo
