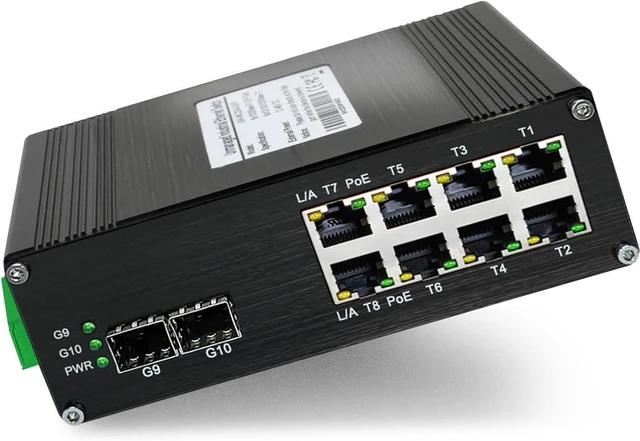

Unmanaged 8-Port 2.5G 30W PoE Ethernet Switch with 2-Port 10G SFP+
- IEEE 802.3af/at, 48~57VDC Power Input

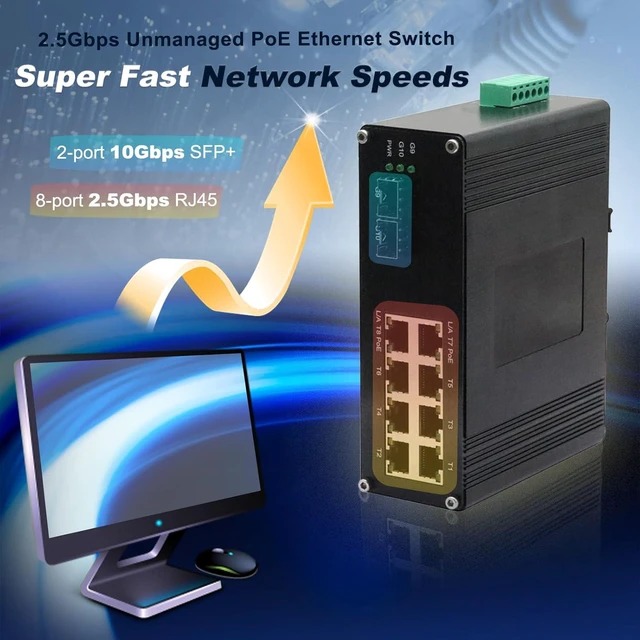

- 8-Port 10/100/1000M/2.5G Base-TXThe switch equipped with 8 10/100/1000M/2.5Gbps RJ45 Port, provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
- 2-Port 10G SFP+ Base-FX The switch offers 2 10G SFP+ Base-FX ports for high-speed network connections providing a cost-effective solution in adding 10G link capability.

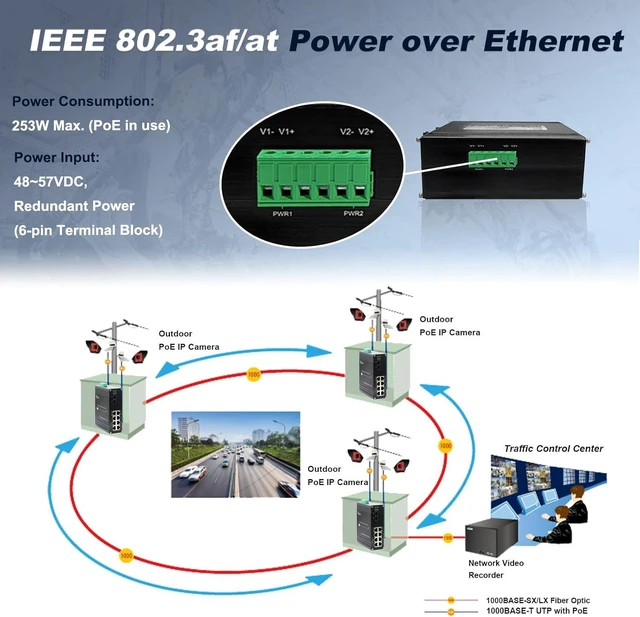

- 8-Port PoE+ functionThe Switch provides 8-port IEEE802.3af/at PoE+(30W) function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable.
- 48-57VDC Redundant Power InputThe Ethernet Switch requires 48~57V DC power input, In this way, its poe function can be used smoothly.

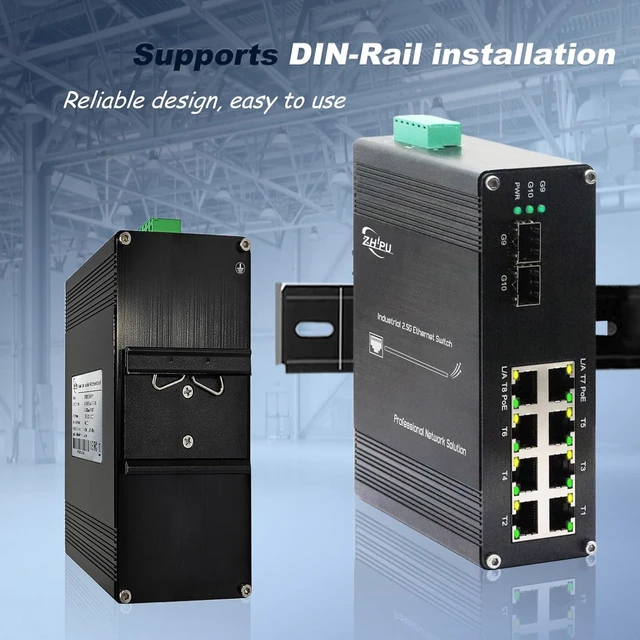

- Reliable design & Din-rail installationWith its reliable design and ease of use, it is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Overview:
It is an 8 ports 10/100/1000M/2.5G Base-TX + 2 port 10G SFP+ Base-FX Hardened PoE switch. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 10G SFP+ Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features:

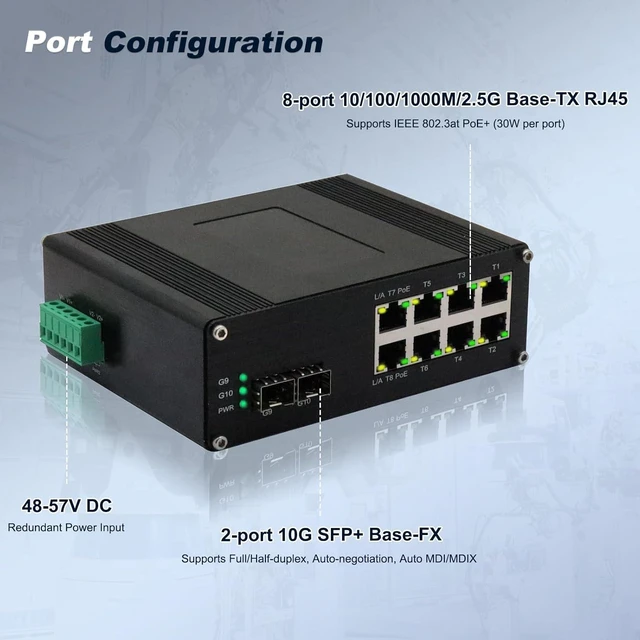

1. 8 10/100/1000M/2.5GBase-TX + 2 10G SFP+ Base-FX
2. 10/100/1000M/2.5Gbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
3. Supports IEEE 802.3at PoE+ (30W per port)
4. Supports 802.3x Flow Control
5. IEEE 802.3az Energy Efficient Ethernet (EEE)
6. 48-57VDC Redundant Power Input
7. Industry standard design, dust-proof and close design IP40 Aluminum Case
8. Supports DIN-Rail installation

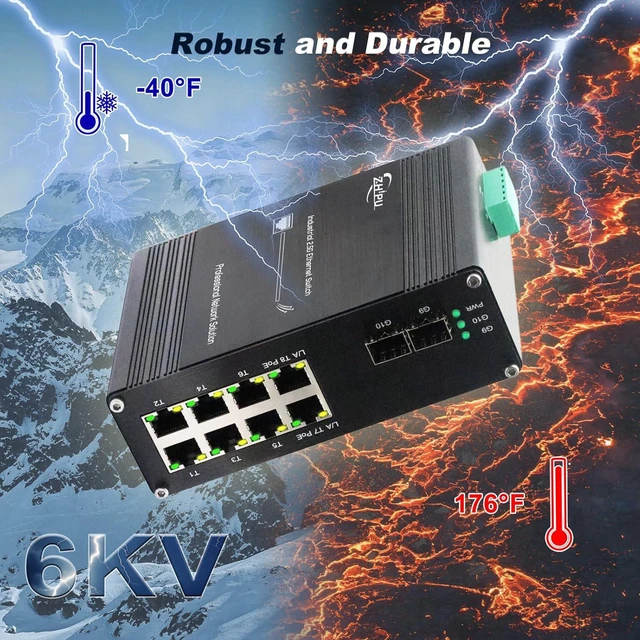

9. Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Specification:
1. Connector: 8 x RJ45 (10/100/1000M/2.5G Base-TX)
2. Optical Port: 2 x 10G SFP+
3. Packet Buffer: 2.75M bits
4. Packet Length: 9K bytes
5. MAC Address Table: 4K
6. Processing Type: Store-and-Forward
7. Forward & Filtering Rate: 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)
8. Input Power: 48~57VDC, 6-pin terminal block
9. PoE Standard: IEEE802.3af/at
10. Max. Power per Port: 30W Max per port (RJ45 Port 1 ~ Port 8)
11. Power Consumption: 253W Max. (PoE in use), 5W Max. (PoE not in use)
12. Power PIN Assignment: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
13. Certification: CE, FCC, RoHS
14. Mounting Options: DIN-Rail
15. Casing: Aluminum Case
16. Operating Temperature: -40°C to 80°C (-40°F to 176°F)
17. Storage Temperature: -40°C to 85°C (-40°F to 185°F)
18. Dimensions (WxDxH): 150 x 115 x 50 mm
19. Weight: 0.6kg
Packages:
1* Un-managed 8-port 2.5G PoE RJ45 + 2-port 10G SFP Ethernet Switch
1* Terminal block
1* User Manual
