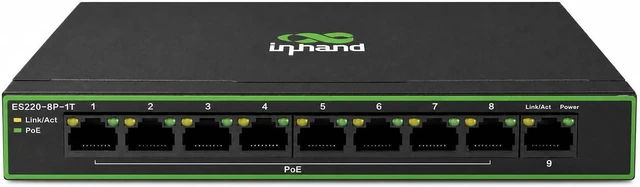

InHand Networks 9-Port High-Power PoE+ Unmanaged Ethernet Switch
- 8 PoE+ Ports with 120W Total Output, Each Port Max.30W, Fanless Metal Case, High-Density CCTV & AP
- High-Power PoE+ for Demanding Devices: The ES220-8P-1T offers eight PoE+ ports with a total power output of 120W, providing continuous power for a large number of devices. This supports high-density deployments such as large-scale CCTV systems and multiple wireless access points
- Streamlined Installation with Single-Cable Solution: With PoE functionality, this switch simplifies the connection of devices by transmitting both power and data over a single network cable, eliminating the need for separate power sources and streamlining the installation process
- Unmanaged & Plug-and-Play for Simplicity: As an unmanaged switch, the ES220-8P-1T requires no configuration. Its plug-and-play functionality helps users quickly and easily expand their network, reducing reliance on specialized technical skills
- Robust & Fanless Design for Reliability: The switch features a full-metal enclosure, provid
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Total 120W PoE+ ethernet switch, Each Port Max.30W
8× 802.3af/at ports deliver power + data over one cable, up to 30W per port for cameras, APs and phones.
9× 10/100/1000M ports with 16 Gbps switching and store-and-forward keep every stream smooth.
Unmanaged Layer 2 with auto MDI/MDIX and auto-negotiation. No software, no setup power on and go.
Fanless metal housing, desktop or wall-mount. Just 178×104×26 mm fits anywhere, runs silent.
Stop hunting for outlets. Ports 18 feed IP cameras, Wi-Fi 6 access points, VoIP phones and access control over a single Ethernet cable up to 30W per port with a 120W total budget. The dedicated Gigabit uplink (port 9) keeps your NVR and router backhaul fast and uncongested.
8× PoE+ (802.3af/at) + 1× Gigabit uplinkU
up to 30W per port, 120W totalI
deal for cameras, APs, VoIP & sensors
At just 178×104×26 mm, the ES220-8P-1T disappears under a counter or on a wall yet its fanless metal body runs cool and silent (0 dB) all day. Per-port Link/Act + PoE LEDs make status checks instant. Auto MDI/MDIX, duplex auto-negotiation and a 2K MAC table with store-and-forward keep the network fast with no IT team needed.
Fanless metal housing, 0 dB silent
Desktop or wall-mount
CE / FCC certified
Does this switch come with a US power plug?

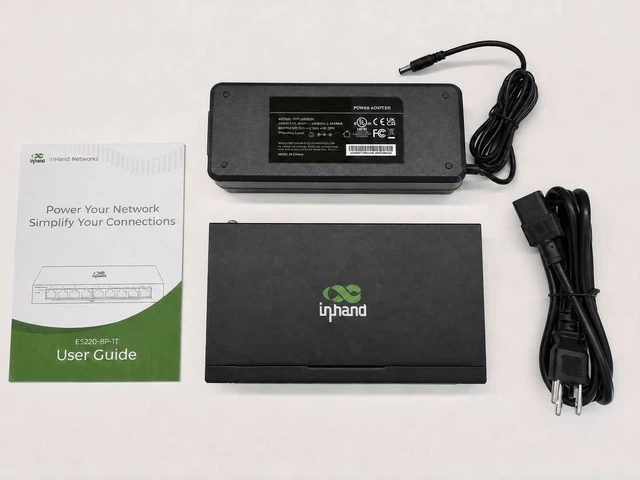

Yes, we provide a USA power adapter. It delivers up to 140W, easily supporting the switchs 120W PoE budget for all 8 ports.
Can I use this switch with my PC and printer without any setup?
Absolutely. Its an unmanaged switchjust plug and play. No software or configuration needed. Auto MDI/MDIX handles crossover cables automatically.
Does the PoE work on all 8 ports at the same time?
Yes, ports 18 support 802.3af/at PoE. The total 120W budget can power multiple devices like IP cameras or phones simultaneously.
Is this fanless and quiet enough for an office?
Yes, its completely fanless with a metal housing. Runs silent and cool, perfect for small offices, retail stores, or home use.
Can I mount this on a wall to save desk space?
Yes, it supports wall-mounted or desktop installation. Its compact metal body (7.01×4.09×1.02 in) fits easily in tight spaces.

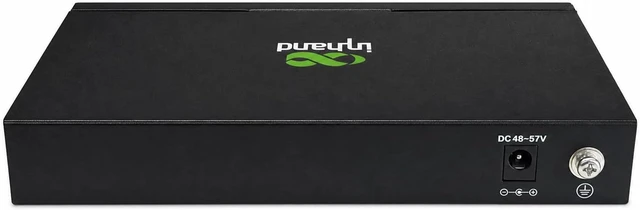

Switching Capacity 16 Gbps MAC Address Table 2K Forwarding Mode Store-and forward Ethernet 9 × 10/100/1000 Mbps PoE Ports 18, 802.3 af/at, 120 W Polarity Reversal Auto MDI/MDIX Duplex Auto negotiation, half-duplex and full duplex Input 55 V / 2.55 A DC Housing Metal Cooling Fanless Dimensions (mm) 178 × 104 × 26 Operating Temperature 0 °C ~ +40 °C (32 °F ~ +104 °F) Certification CE, FCC Management Unmanaged Layer 2 switch; plug-and-play; no configuration required InHand Networks 9-Port with 8 PoE+ Ports Swtich 4 key points for choosing this network switch 120W PoE+ Budget for 8 Devices Full Gigabit Ports True Plug & Play, Zero Config Silent, Rugged, Compact One Cable Delivers Power + Data Built for Stores, Offices & Branches Compact design,Metal Case Does this switch come with a US power plug?
Can I use this switch with my PC and printer without any setup?
Does the PoE work on all 8 ports at the same time?
Is this fanless and quiet enough for an office?
Can I mount this on a wall to save desk space?
InHand Networks ES220-8P-1T Specifications
8× 802.3af/at ports deliver power + data over one cable, up to 30W per port for cameras, APs and phones.
9× 10/100/1000M ports with 16 Gbps switching and store-and-forward keep every stream smooth.
Unmanaged Layer 2 with auto MDI/MDIX and auto-negotiation. No software, no setup power on and go.
Fanless metal housing, desktop or wall-mount. Just 178×104×26 mm fits anywhere, runs silent.
Stop hunting for outlets. Ports 18 feed IP cameras, Wi-Fi 6 access points, VoIP phones and access control over a single Ethernet cable up to 30W per port with a 120W total budget. The dedicated Gigabit uplink (port 9) keeps your NVR and router backhaul fast and uncongested.
8× PoE+ (802.3af/at) + 1× Gigabit uplinkU
up to 30W per port, 120W totalI
deal for cameras, APs, VoIP & sensors
At just 178×104×26 mm, the ES220-8P-1T disappears under a counter or on a wall yet its fanless metal body runs cool and silent (0 dB) all day. Per-port Link/Act + PoE LEDs make status checks instant. Auto MDI/MDIX, duplex auto-negotiation and a 2K MAC table with store-and-forward keep the network fast with no IT team needed.
Fanless metal housing, 0 dB silent
Desktop or wall-mount
CE / FCC certified
Does this switch come with a US power plug?
Yes, we provide a USA power adapter. It delivers up to 140W, easily supporting the switchs 120W PoE budget for all 8 ports.
Can I use this switch with my PC and printer without any setup?
Absolutely. Its an unmanaged switchjust plug and play. No software or configuration needed. Auto MDI/MDIX handles crossover cables automatically.
Does the PoE work on all 8 ports at the same time?
Yes, ports 18 support 802.3af/at PoE. The total 120W budget can power multiple devices like IP cameras or phones simultaneously.
Is this fanless and quiet enough for an office?
Yes, its completely fanless with a metal housing. Runs silent and cool, perfect for small offices, retail stores, or home use.
Can I mount this on a wall to save desk space?
Yes, it supports wall-mounted or desktop installation. Its compact metal body (7.01×4.09×1.02 in) fits easily in tight spaces.
Switching Capacity 16 Gbps MAC Address Table 2K Forwarding Mode Store-and forward Ethernet 9 × 10/100/1000 Mbps PoE Ports 18, 802.3 af/at, 120 W Polarity Reversal Auto MDI/MDIX Duplex Auto negotiation, half-duplex and full duplex Input 55 V / 2.55 A DC Housing Metal Cooling Fanless Dimensions (mm) 178 × 104 × 26 Operating Temperature 0 °C ~ +40 °C (32 °F ~ +104 °F) Certification CE, FCC Management Unmanaged Layer 2 switch; plug-and-play; no configuration required InHand Networks 9-Port with 8 PoE+ Ports Swtich 4 key points for choosing this network switch 120W PoE+ Budget for 8 Devices Full Gigabit Ports True Plug & Play, Zero Config Silent, Rugged, Compact One Cable Delivers Power + Data Built for Stores, Offices & Branches Compact design,Metal Case Does this switch come with a US power plug?
Can I use this switch with my PC and printer without any setup?
Does the PoE work on all 8 ports at the same time?
Is this fanless and quiet enough for an office?
Can I mount this on a wall to save desk space?
InHand Networks ES220-8P-1T Specifications
