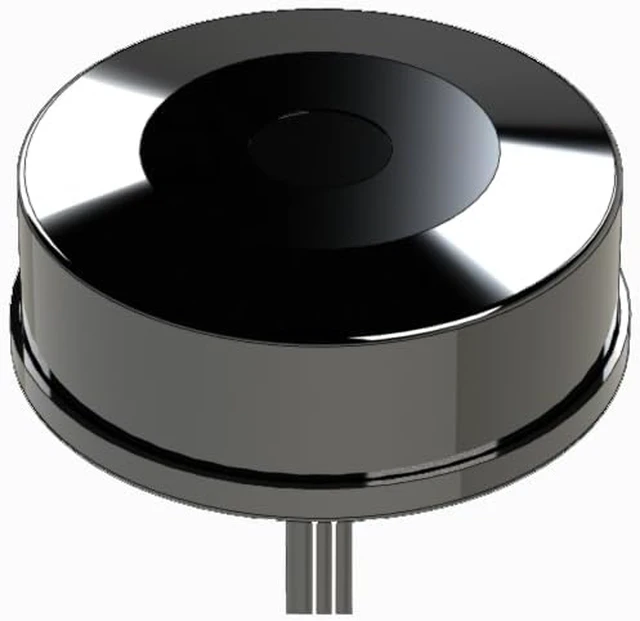

MobileMark SMT641-7C7C2C, 6 - Cables 4X 5G Sub-6, 1x WiFi 6E/7, 1x GNSS, Thread Mount, Black 15 ft
- Cable 1 4: 617-960 MHz, 2 dBi & 960-1710 MHz, 2.5 dBi & 1710-7200, 3 dBi
- Cable 5 Wi-fi 6E/7: 2.4-2.5 & 4.9-7.2 GHz, 5 dBi
- Cable 6 (GNSS): 1561, 1575, & 1602 MHz, LNA 26 dB ±3 dB/Element 4 dBiC / GPS L1, Galileo E1, GLONASS L1, BeiDou B1, and QZSS L1C LNA 26 dB ±3 dB/Element 4 dBiC +3 to +5 VDC
- Radome Dimension 4.0 Diameter (10.2cm) x 1.5 Height (3.8cm)
- Standard Connectors SMA Plugs (M)
- Cables LMR100 Cables for 5G Sub-6 & WiFi 6E/7, 12 (30.5cm) RG-174 Cable for GNSS, 12 (30.5cm)
- Mounting 3/4 (1.9cm) Hole, Panel Thickness 3/8 (1cm) Ground Plane Independent
- Dust & Water Ingress IP67
- Shock and Vibration IEEE-1478, EN 61373, MIL-810G, TIA 329.2-C / RoHS Compliant Yes
- 1 ft pigtails from the antenna and then 14 foot jumpers
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The SM641-7C7C2C is a 6-cable antenna with four 5G Sub-6, one WiFi 6e/7, and one GNSS. This provides MIMO (multiple-input-multiple-output) coverage for Cellular. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz. The SMG641 is also available with a Tri-band GNSS option that covers L1, L2, and L5 or with GPS instead. The Cellular elements provide 4×4 MIMO coverage for Dual-Carriers. With these technical capabilities and low-profile design, the SM is ideal for IoT 5G projects.
