Yolefarise WiFi HaLow HTB01 Transfer Wireless Bridge IEEE 802.11ah RJ45/USB-C/Ethernet 1km Long Range WiFi Adapter+HaLow Camera 1080P IP67 Protection for Outdoor IoT Smart Home (AP+STA 1 Pair)

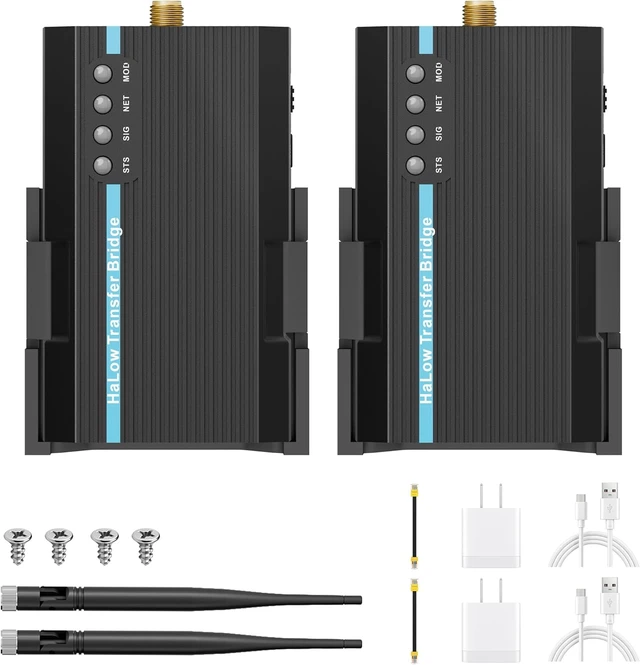

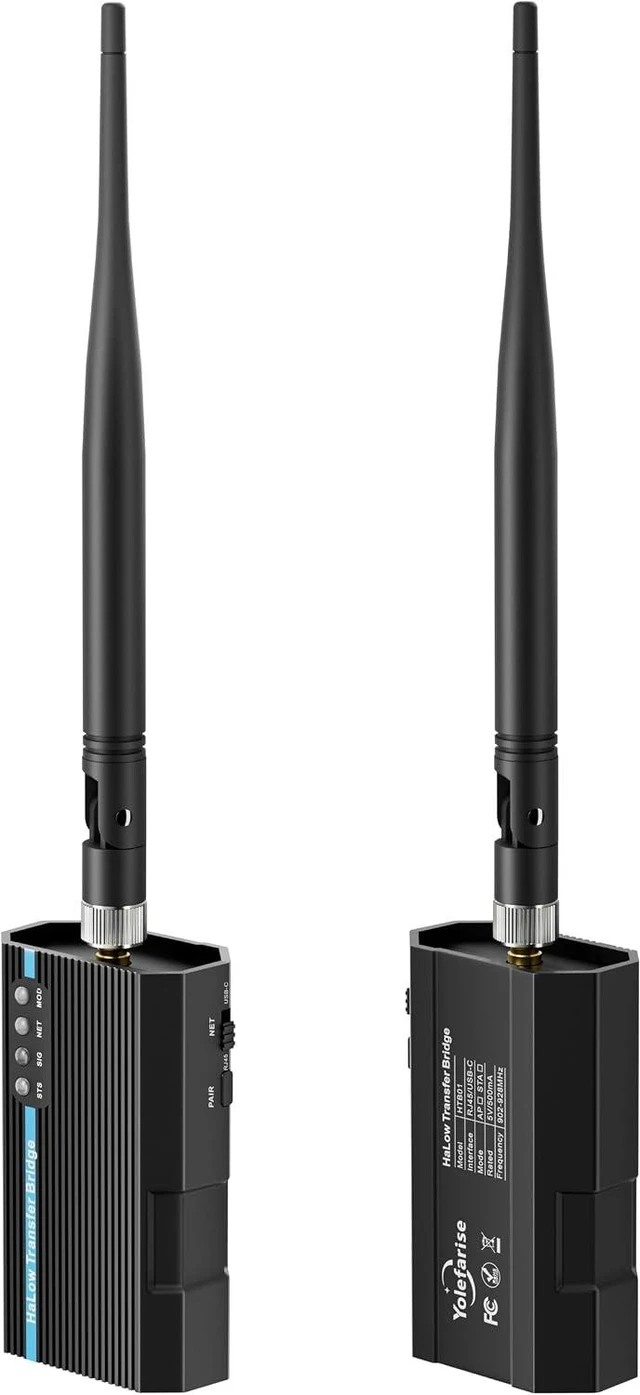

The HTB01 HaLow Transfer Bridge is a wireless bridge based on IEEE 802.11ah (Wi-Fi HaLow) and TX-AH-Rx00P series modules, designed for long-range, low-power IoT connectivity. It supports AP and STA modes for flexible deployment. In AP mode, it connects to upstream networks via RJ45 and provides HaLow wireless access. In STA mode, it connects to a HaLow AP and offers network access via Ethernet or USB-C. With plug-and-play design, it is ideal for IoT access, industrial monitoring, smart campuses, and low-power network expansion, delivering efficient and scalable bridging.
HaLow Camera is an intelligent video camera designed on HaLow (IEEE 802.11ah) wireless communication technology. Unlike conventional Wi-Fi cameras, the HaLow Camera does not establish a direct connection to a home or enterprise router. Instead, it communicates with a dedicated HaLow dongle over a HaLow wireless link. This architecture enables extended communication range, enhanced link reliability, and reduced power consumption for video transmission.
Wireless WiFi HaLow Power Supply USB-C 5V; 500mA Frequency 902~928MHz TX Power 20±1dBm Max Data Rate 32Mbps (Maximum physical air interface rate is 32 Mbps, with an effective rate ofapproximately 16 Mbps after excluding protocol overhead) Bandwidth 1/2/4/8 MHz Network interface RJ45 (10/100 Mbps), USB-C Antenna Interface SMA Female Operating Temperature -20 °C ~70 °C Storage Temperature -20 °C ~70 °C Ingress Protection Without waterproof treatment Material ABS Dimensions 75.0*45.0*24.3mm Definition 1080p Focal Length 2.8mm Protection Grade IP67 Presenting Colors Color Photosensitive Area One-third inch Power Supply 12V-2A Wireless WiFi HaLow Note: The HTB01 operates at a frequency of 902-928MHz and will automatically hop frequencies during operation. One AP can connect to max 8 STAs simultaneously; the number is limited by the maximum network speed. Please connect the antenna before powering on to avoid damaging the device's RF circuit.
Summary Hardware Description and LED Indicator Description HTB01 HaLow Transfer Bridge Specifications HaLow Camera Specifications
