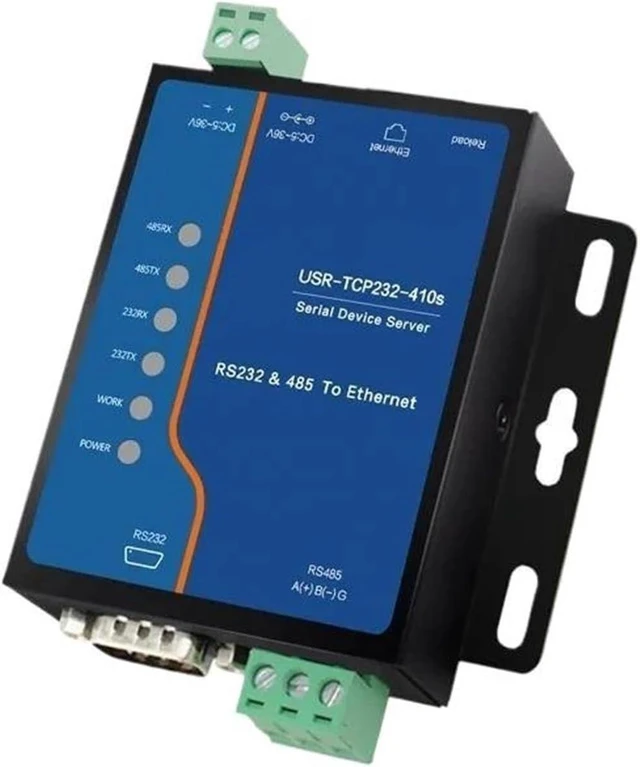

RS232 RS485 to Ethernet Modbus Gateway USR-TCP232-410S-H7
- Hubs
- Industrial Serial Converter,Modbus RTU to ,Built-in Edge Computing,Supports MQTT & SSL,Reliable Serial to Ethernet Data Transmission for Industrial Use
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Hubs
==========
High-concerned chemical : none
Wi-Fi Transmission Standard : 802.11b
LAN Ports : 0
Max. LAN Data Rate : 100Mbps
Interface Type : RS-232
Certification : ,FCC
Processor : ST Solution, Cortex-M7
Frequency : 400MHz
Port Number : 1 x RJ45, 10 /100 Mbps, auto MDI/MDX, 1.5KV electromagnetic isolation,1 x RS232, DB9-male, 1 x RS485, 3-pin terminal block,
Baud rate : 600 bps~230.4Kbps
Network protocol : IP, , UDP, HTTP, MQTT, SSL/TLS, ARP, ICMP, DHCP, DNS
Config Method : Built-in Webpage, ConfigSoftware, AT Command
Work Mode : Server/TCP client/UDP Server/UDP Client/HTTPD client
Edge Computing : YES, up to 128 points

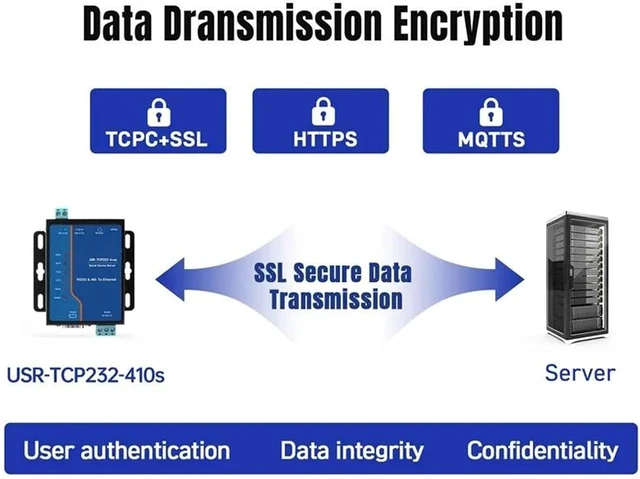

Encryption : MQTT+SSL, TCPC+SSL
Modbus Gateway : Modbus RTU/TCP protocol conversion, Multi-host polling: up to 16 hosts
==========
High-concerned chemical : none
Wi-Fi Transmission Standard : 802.11b
LAN Ports : 0
Max. LAN Data Rate : 100Mbps
Interface Type : RS-232
Certification : ,FCC
Processor : ST Solution, Cortex-M7
Frequency : 400MHz
Port Number : 1 x RJ45, 10 /100 Mbps, auto MDI/MDX, 1.5KV electromagnetic isolation,1 x RS232, DB9-male, 1 x RS485, 3-pin terminal block,
Baud rate : 600 bps~230.4Kbps
Network protocol : IP, , UDP, HTTP, MQTT, SSL/TLS, ARP, ICMP, DHCP, DNS
Config Method : Built-in Webpage, ConfigSoftware, AT Command
Work Mode : Server/TCP client/UDP Server/UDP Client/HTTPD client
Edge Computing : YES, up to 128 points
Encryption : MQTT+SSL, TCPC+SSL
Modbus Gateway : Modbus RTU/TCP protocol conversion, Multi-host polling: up to 16 hosts
