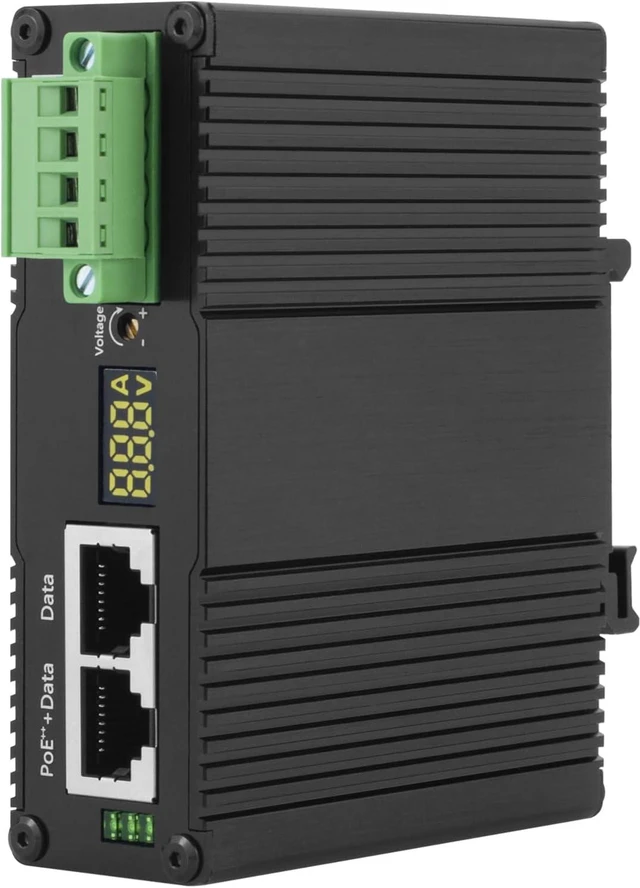

Industrial Gigabit PoE++ Ethernet Splitter 12V DC,90W 802.3bt to3.3-36V DC
- Dual Output BT PoE & DC,IP40 Aluminum,for PTZ Camera AP non-PoE Cameras,,Siren,Din Rail Mounting Included L-shaped Bracket
- The BT90W PoE splitter splits a 90W IEEE 802.3bt PoE input into IEEE 802.3bt PoE and DC power outputs, delivering a total power of up to 70W; it accepts an input voltage of 44V DC56V DC from IEEE 802.3bt/at-compliant power sourcing equipment.
- The industrial Gigabit PoE++ Ethernet splitter offers two output voltage options: when set to DC 12V, it delivers up to 2A of current with a maximum power of 51W; when set to the 3.3336V DC range, it supports up to 10A of current with a maximum power of 70W.
- This 90W internet splitter is designed for use with standard IEEE 802.3at/bt PoE switches; it holds FCC Part 15 Class A and CE certifications, complies with IEEE 802.3at/bt/ab/3u/3 standards, and features short-circuit and overheat protection.
- The Gigabit PoE++ network splitter delivers a total power output of 70W to both PoE and non-PoE devices and supports network
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description
Industrial High Power PoE++ Splitter that can split the 44~ 56V DC over the existing Ethernet cable into the output voltage and current in real time.
It supports passive 10/100/100oMbps Ethernet connection ability and 3.3-36VDC adjustable power output via an adjustable button.
With LED display on the front panel, it can show the complies with IEEE 802. 3bt High Power over Ethernet standard that supports up to 70-watt output power to powered device..
The data transmission, up to Gigabit speeds, with power output voltages of 3.3 -36VDC, run simultaneously up to the Ethernet limit of 100 meters. .
With a simple Ethernet cable connected to your PoE++ Switch or injector, this Splitter can give up to 7oW (36VDC) to a non-PoE device in tough or industrial environments via your choice of output -a terminal block and still provide a gigabit network connection. .
It's a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it's cheaper in both time and money than hiring an electrician..
.
Functional Description
1.Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
2.One 3.3-36VDC output with power up to 70W(10A max)via terminal block.
3.One DC12V@2A Max Fixed Output.
4.LED Display showing output voltage and current.
5.One Adjustable Button to adjust 3.336VDC based on demands.
6.One RJ45 input port up to 90W from an IEEE 802.3bt compliant PoE injector or PoE switch (PSE).
7.One RJ45 output port with 10/100/1000 data rates.
8.ESD protection up to 8kV (air) and 6kV (contact)
9.Port surge protection up to 2kV
10.IP40-rated metal housing to withstand harsh industrial conditions
11.Suitable for extreme operating temperatures of -40 to 80
12.Option for DIN-rail or Wallmount installation
13.Short-circuit, overload and high-voltage protection
Package list
Industrial PoE Splitter x 1
Quick Start Guide x 1
L-shaped wall mount bracket x 1
DIN-Rail bracket x 1
Industrial High Power PoE++ Splitter that can split the 44~ 56V DC over the existing Ethernet cable into the output voltage and current in real time.
It supports passive 10/100/100oMbps Ethernet connection ability and 3.3-36VDC adjustable power output via an adjustable button.
With LED display on the front panel, it can show the complies with IEEE 802. 3bt High Power over Ethernet standard that supports up to 70-watt output power to powered device..
The data transmission, up to Gigabit speeds, with power output voltages of 3.3 -36VDC, run simultaneously up to the Ethernet limit of 100 meters. .
With a simple Ethernet cable connected to your PoE++ Switch or injector, this Splitter can give up to 7oW (36VDC) to a non-PoE device in tough or industrial environments via your choice of output -a terminal block and still provide a gigabit network connection. .
It's a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it's cheaper in both time and money than hiring an electrician..
.
Functional Description
1.Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
2.One 3.3-36VDC output with power up to 70W(10A max)via terminal block.
3.One DC12V@2A Max Fixed Output.
4.LED Display showing output voltage and current.
5.One Adjustable Button to adjust 3.336VDC based on demands.
6.One RJ45 input port up to 90W from an IEEE 802.3bt compliant PoE injector or PoE switch (PSE).
7.One RJ45 output port with 10/100/1000 data rates.
8.ESD protection up to 8kV (air) and 6kV (contact)
9.Port surge protection up to 2kV
10.IP40-rated metal housing to withstand harsh industrial conditions
11.Suitable for extreme operating temperatures of -40 to 80
12.Option for DIN-rail or Wallmount installation
13.Short-circuit, overload and high-voltage protection
Package list
Industrial PoE Splitter x 1
Quick Start Guide x 1
L-shaped wall mount bracket x 1
DIN-Rail bracket x 1
