Elenzk Industrial 10G RJ45 IEEE 802.3at 30W PoE+ Injector
- Auto 10/100/1000M/2.5G/5G/10G, IEEE802.3af/at, 12-48VDC Input, -40°C-80, DIN Rail & Wall Mount
- - Compatible with 10/100/1000/2.5G/5G/10G Base-T, suitable for high-bandwidth applications.
- ./ Delivers reliable and efficient Power over Ethernet for a wide range of compatible devices.

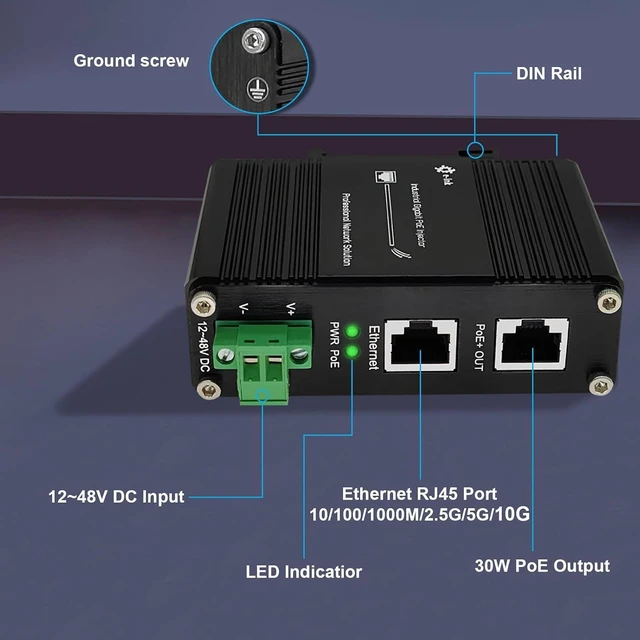

- ~ Accepts 12~48V DC via 2-pin terminal block for flexible power supply options in different installations.
- - & - Offers versatile mounting options for convenient deployment in various industrial and commercial environments.
- - Operates in extreme temperatures from -40 to 80 (-40 to 176) and features 6KV lightning protection for use in harsh outdoor or industrial conditions.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

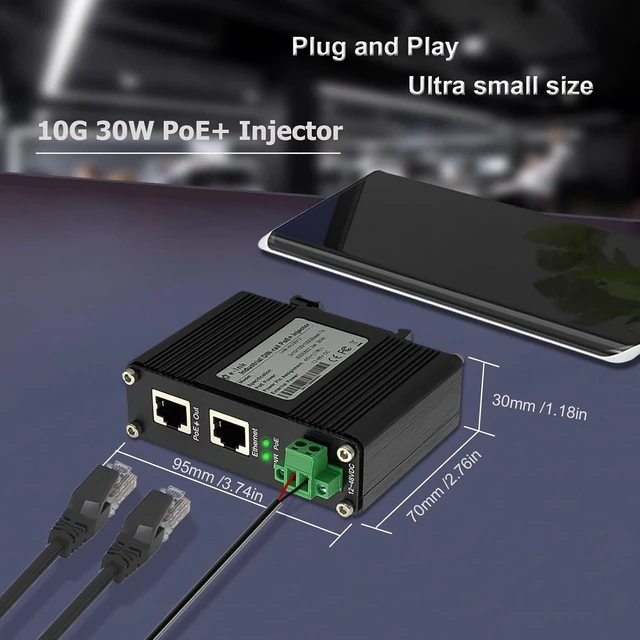

Power Supply Standard IEEE802.3af/at Forward Filter Rate 3,720,000pps (2.5Gbps)7,440,000pps (5Gbps)14,880,000pps (10Gbps) Cabling Cat7 or above Maximum Distance Cat7 UTP up to 30m Power Input 12~48VDC Power Pin Assignment 4/5(+), 7/8(-) Dimensions (WxDxH) 95*70*30 mm (3.74*2.76*1.18 inches) Weight 0.25Kg (0.55Ib) Mounting Options DIN-Rail / Wall-mount Operating Temperature -40~+75°C Package:
1 * 30W PoE Injector
1 * User Manual
1 * L-Shaped Wall Mount bracket
Note:
Power Options The Power Supply for POE injector is to be purchased separately. The cable is to be Cat7 or above.
Al Case and Fanless Design Plug and Play LED Indicator Specifications
1 * 30W PoE Injector
1 * User Manual
1 * L-Shaped Wall Mount bracket
Note:
Power Options The Power Supply for POE injector is to be purchased separately. The cable is to be Cat7 or above.
Al Case and Fanless Design Plug and Play LED Indicator Specifications
