Industrial Modbus WiFi Serial Port Device Server RS232 RS485 RS422 to WiFi Ethernet Converter Network Module Support TCP IP Telnet 110v
- This product do not include user manual, if you need, we will send the pdf file to you
- HF2211 is a low-cost serial device server,which function is to realize bidirectional transparent transmission between RS232/RS485/RS422 and WiFi/Ethernet.
- Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 460800 bps
- MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos
- CE FCC ROHS Certifications
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Introduction
HF2211 is a serial RS232/RS485/RS422 to WiFi/Ethernet server,used for data transparent transmission.HF2211 is a low-cost serial device server,which function is to realize bidirectional transparent transmission between RS232/RS485/RS422 and WiFi/Ethernet.
Overviewof Characteristic
MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos
Support TCP/IP/Telnet /Modbus TCPProtocol
Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 460800 bps
Support STA/AP/AP+STA Mode
Support Router or Bridge Network Working Mode.
Support 10/100M Ethernet Auto-Negotiation
Support Easy ConfigurationThrougha Web Interface or PC IOTManager Tool
Support Security ProtocolSuch AsSSL/AES/DES3
Support Web OTA Wirelss Upgrade
Wide DC Input 5~36VDC or 9~50VDC
Size: 95 x65x 25 mm(Lx W x H)
FCC/CE/RoHS Certificated
System info
Processor MIPS Basic Frequency 320MHz
Flash &SDRAM :4MB *8MB
Operating System:eCos
Ethernet Interface Standard 1 RJ45 Rate 10/100M
Protection:8KV Isolation
Port Number 1RS232/RS485/RS422

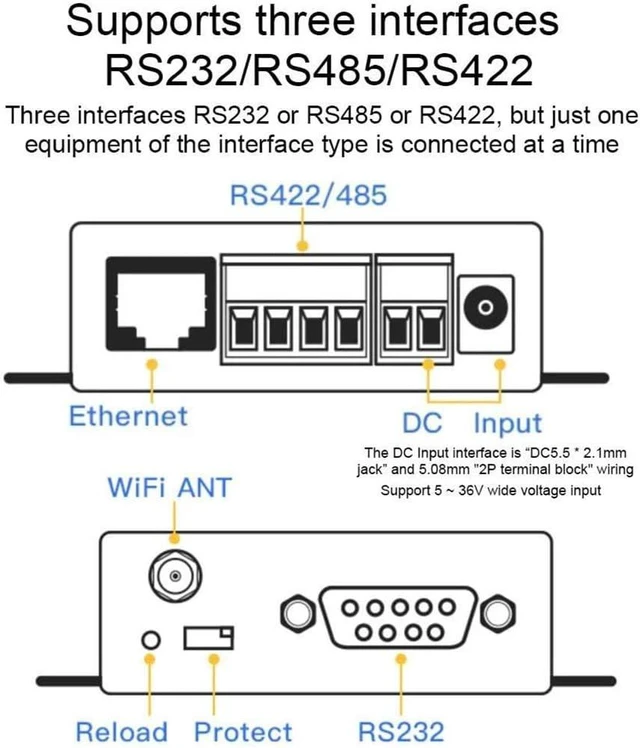

Interface Standard RS232: DB9 RS485/RS422: 5.08mm connector
Baud Rate TTL: 600 bps~460800bps
Operating Temp. -25 ~ 85°C Storage Temp. -45 ~ 105°C5 ~ 95% RHno condensation
Input Voltage 5~36VDC or 9~50VDC
Working Current ~200mA Power <700mW

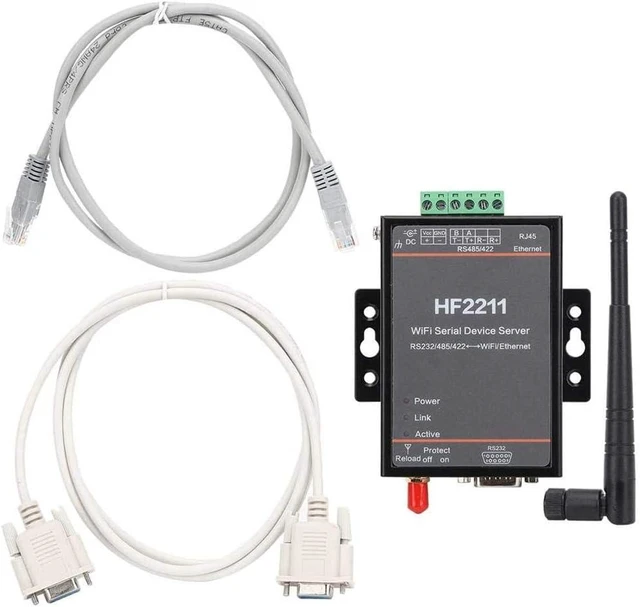

Accessory 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna
HF2211 is a serial RS232/RS485/RS422 to WiFi/Ethernet server,used for data transparent transmission.HF2211 is a low-cost serial device server,which function is to realize bidirectional transparent transmission between RS232/RS485/RS422 and WiFi/Ethernet.
Overviewof Characteristic
MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos
Support TCP/IP/Telnet /Modbus TCPProtocol
Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 460800 bps
Support STA/AP/AP+STA Mode
Support Router or Bridge Network Working Mode.
Support 10/100M Ethernet Auto-Negotiation
Support Easy ConfigurationThrougha Web Interface or PC IOTManager Tool
Support Security ProtocolSuch AsSSL/AES/DES3
Support Web OTA Wirelss Upgrade
Wide DC Input 5~36VDC or 9~50VDC
Size: 95 x65x 25 mm(Lx W x H)
FCC/CE/RoHS Certificated
System info
Processor MIPS Basic Frequency 320MHz
Flash &SDRAM :4MB *8MB
Operating System:eCos
Ethernet Interface Standard 1 RJ45 Rate 10/100M
Protection:8KV Isolation
Port Number 1RS232/RS485/RS422
Interface Standard RS232: DB9 RS485/RS422: 5.08mm connector
Baud Rate TTL: 600 bps~460800bps
Operating Temp. -25 ~ 85°C Storage Temp. -45 ~ 105°C5 ~ 95% RHno condensation
Input Voltage 5~36VDC or 9~50VDC
Working Current ~200mA Power <700mW
Accessory 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna
