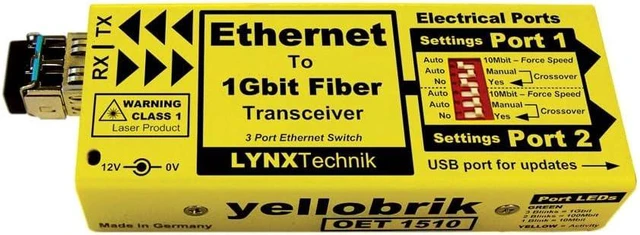

Ethernet to Fiber Transceiver (Switch) (OET 1510)

The OET 1510 is a compact 3 port Ethernet switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1 Gbit optical transceiver speed. Features Supports standard Ethernet inputs up to 1 Gbit 3 port Ethernet switch (1 fiber, 2 electrical) Auto (10/100/1000) electrical port speed selection Manually Force 10Mbit electrical speed (if needed) Fiber transceiver speed always 1 Gbit Auto or manual electrical crossover selection Distances up to 10km (6.2 miles) over fiber TX 1310nm -3dBm RX Sensitivity -3dBm to -21dBm LC - PC optical connections Hot swappable, hot pluggable The OET 1510 is a compact 3 port Ethernet switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1 Gbit optical transceiver speed. When paired with another OET 1510 at the receiving end (using two fiber links) you have a cost effective Ethernet extender system for distances up to 10km providing a stable, high speed 1Gbit error free optical connection between locations. Adapter cable introduces less than 0.25dB attenuation. P-TAP 1000: P-TAP Battery Adapter Cable This option allows the yellobrik to be powered from a battery with a standard P-TAP power connection. Cable length 1.8m XLR-1000: 4 Pin XLR Camera Battery Adapter Cable This option allows the yellobrik to be powered from a camera battery with a standard 4 pin XLR power connection. Cable length 1.8m
