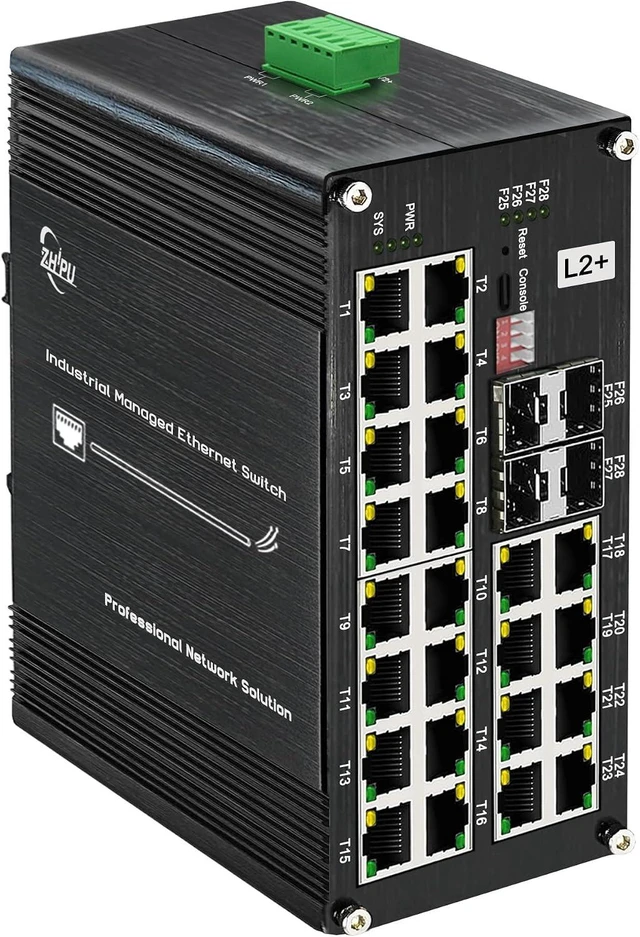

L2+ Managed 24 Port PoE Ethernet Switch with 4 SFP Slot

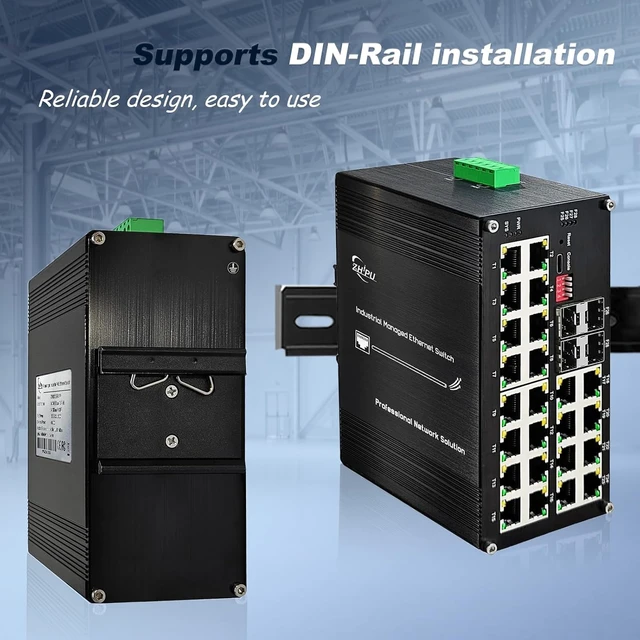

- Industrial Gigabit Networking Switch with IPv4/IPv6 Management and DIP Switch, Supporting Din-Rail

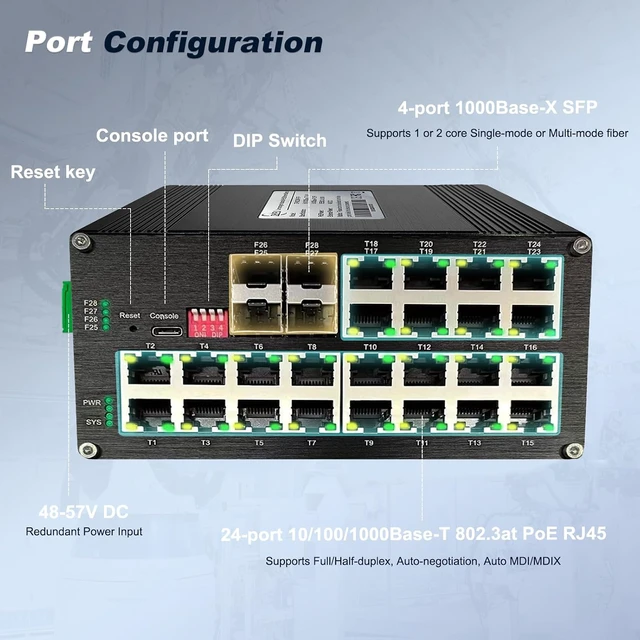

- Gigabit Network TransmissionThe Ethernet switch has 4x1000Base-X and 24x10/100/1000Base-T supporting Full/Half duplex mode and auto MDI/MDI-X connection.

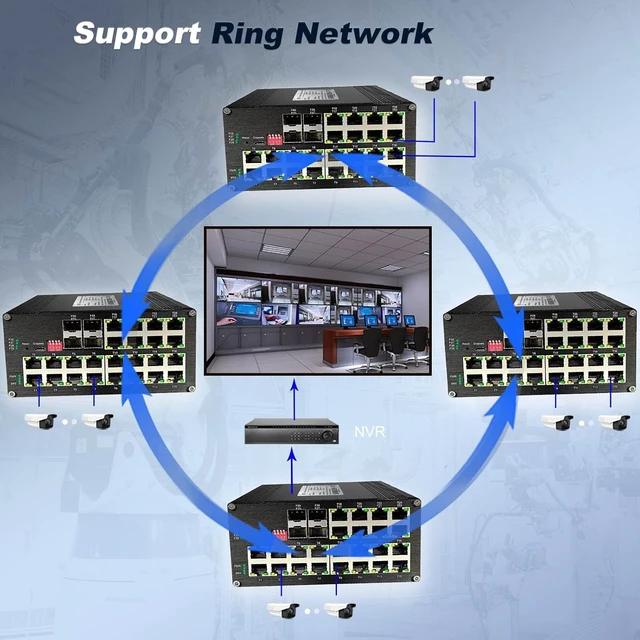

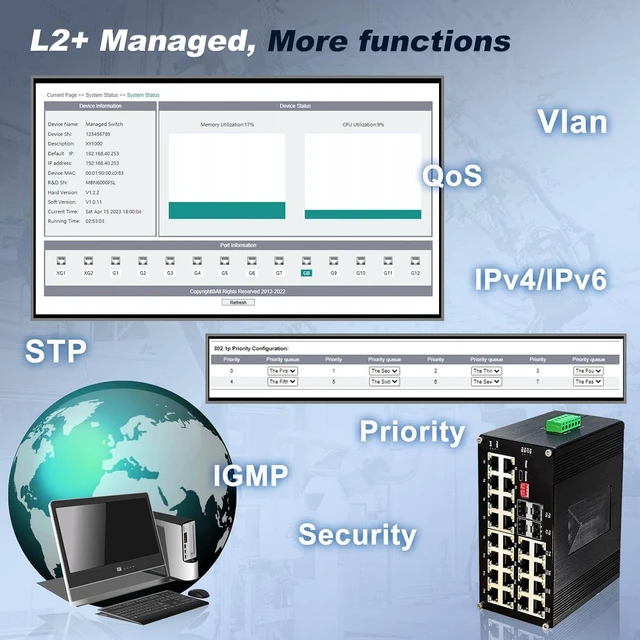

- Outstanding L2+ ManagementThe switch not only support easy management function like Ring Network, VLAN, STP/RSTP, but also IPv4/IPv6 Management and Static Route.
- DIP SwitchThe Ethernet switch has DIP switch to make your operation simple. It supports one-key VLAN, one-key Anti-ring Management, PoE Reset and 250m PoE Network.

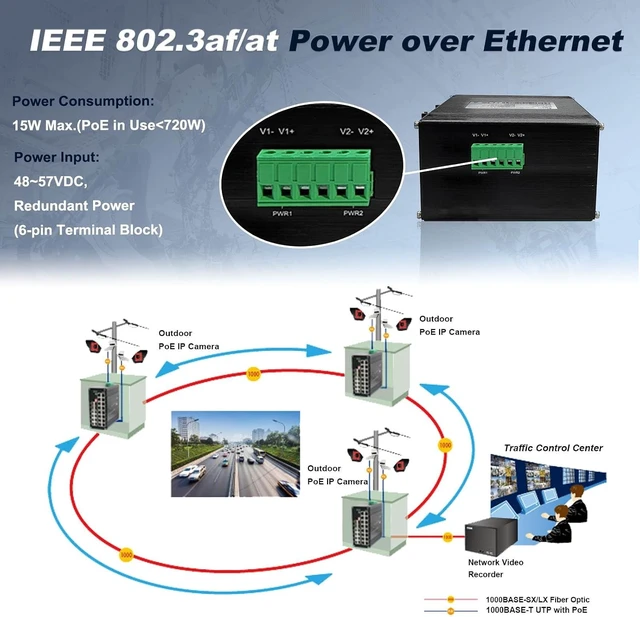

- PoE FunctionThis Switch supports IEEE802.3af/at PoE (30W), can easily power multiple devices, reducing the need for additional power cables or adapters.
- USB-C for Management It provides USB-C port for easy management, so you don't need to access the RS232 serial port any more.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The Industrial L2+ Managed PoE Switch has excellent management function, supporting Web management, Ring Network, VLAN, STP/RSTP, IPv4/IPv6 Management and Static Route. Besides, It has 28 ports support gigabit transmission. Total PoE Budget can up to 720W.
Connector 24xRJ45, 4xSFP PoE Standard IEEE802.3af/at Backplane bandwidth 56Gbps Packet Buffer 12Mbits Packet Length 10Kbytes MAC Address Table 8K Forward & Filtering Rate 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps) Software Features VLANQOSACL Alarm Management Support 1 way relay alarm output, RMON, TRAP Advance Layer 2+ Features IPv4/IPv6 Management, Static Route Serial port line distance 1000m Power Input 48~57VDC (6-pin Terminal Block) Power PIN Assignment 1/2/4/5(+), 3/6/7/8(-) Dimensions (WxDxH) 6.3 x 5.11 x 2.75 inches Weight 3.53 pounds Specifications
Connector 24xRJ45, 4xSFP PoE Standard IEEE802.3af/at Backplane bandwidth 56Gbps Packet Buffer 12Mbits Packet Length 10Kbytes MAC Address Table 8K Forward & Filtering Rate 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps) Software Features VLANQOSACL Alarm Management Support 1 way relay alarm output, RMON, TRAP Advance Layer 2+ Features IPv4/IPv6 Management, Static Route Serial port line distance 1000m Power Input 48~57VDC (6-pin Terminal Block) Power PIN Assignment 1/2/4/5(+), 3/6/7/8(-) Dimensions (WxDxH) 6.3 x 5.11 x 2.75 inches Weight 3.53 pounds Specifications
