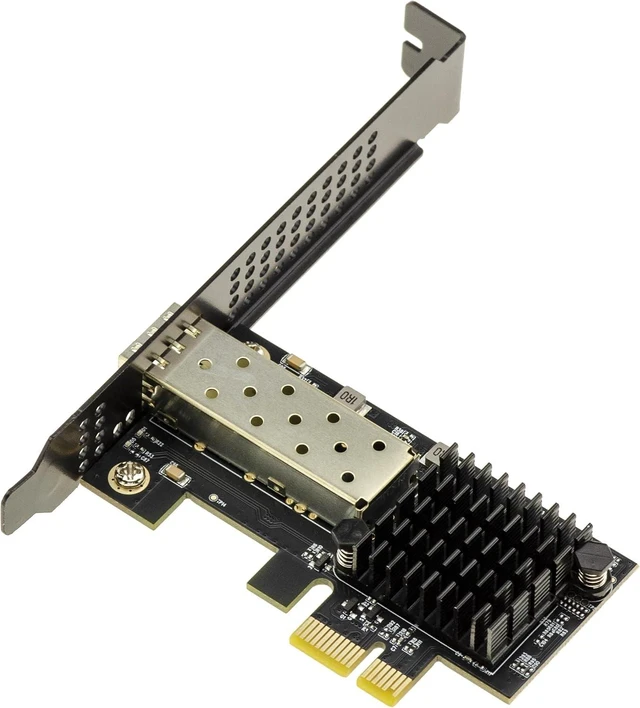

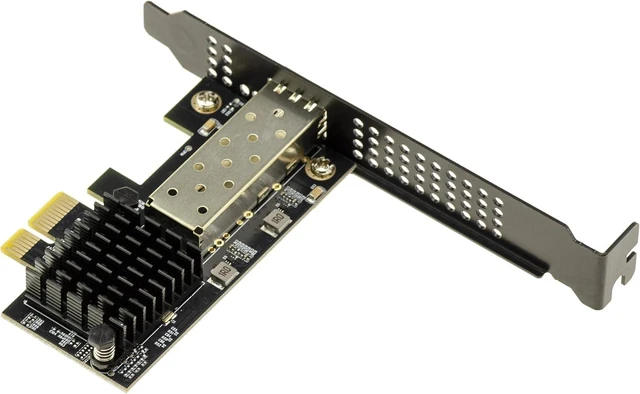

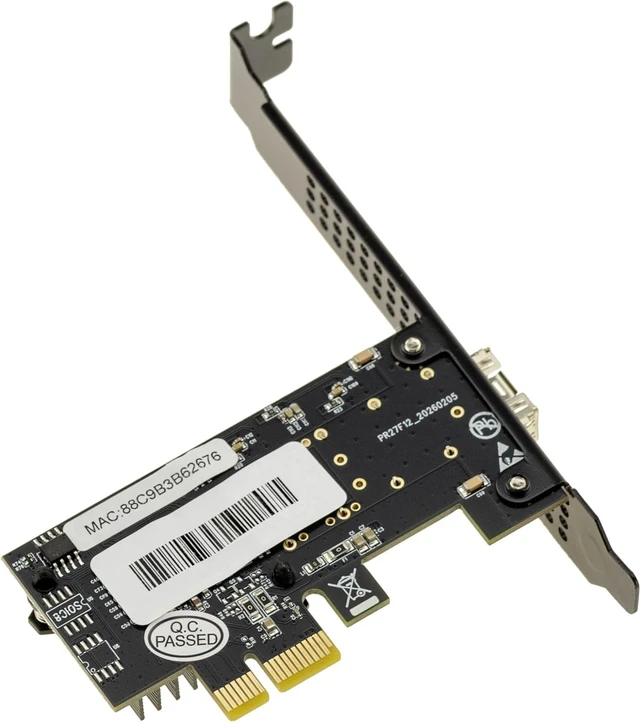

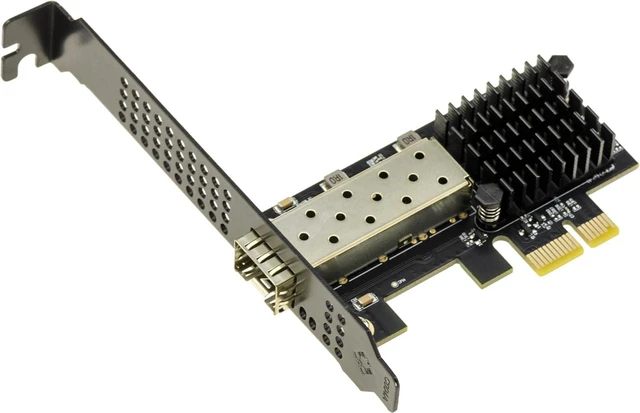

Kalea-INFORMATIQUE Realtek RTL8127 PCIe Gen4 x1 SFP+ 10G Card
- PCIe Gen4 x1, Realtek RTL8127 low energy chipset and passive cooling.
- High-performance multi-gigabit network connectivity: Multi-Gigabit network card with up to 10G provides fast and reliable Ethernet connectivity for servers and workstations. It supports multi-speed networks as well as wide compatibility with operating systems
- Extensive compatibility: PCIe Gen 4.0 card in x1 port (compatible with x1, x2, x4, x8 and x16). Compatible with all networks up to 10 Gigabit (1G and 10G). Supports Windows 10/11 and Linux Kernel 2.4.x or 2.6.x and above
- Interface and network standards: PCIe Gen 4 x1 interface. Compatible with 10G and 1G network speeds. Supported standards IEEE 802.3 / 802.3z / 802.3ae / 802.1Q VLAN / 802.1ad Q-in-Q Maximum consumption 1.79W @ 10G
- Advanced features: Supports Jumbo Frame up to 16KB. VLAN TAG IEEE 802.1Q and Q-in-Q 802.1ad hardware checksum and offload segmentation, reduces processor load by 40 to 60%. Supports Wake-on-LAN, PXE / EFI network boot. IEEE 802.3x
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Multi-Gigabit network card with up to 10G that provides fast and reliable Ethernet connectivity for servers and workstations. It supports multi-speed networks as well as wide compatibility with operating systems.
Compatibility:
PCIe Gen 4.0 card in x1 port (compatible with x1, x2, x4, x8 and x16)
Compatible with all networks up to 10 Gigabit (1G and 10G)
Supports Windows 10/11 and Linux Kernel 2.4.x or 2.6.x and above.
Features:
PCIe Gen 4 x1 interface
Compatible with 10G and 1G network speeds.
Supported standards IEEE 802.3 / 802.3z / 802.3ae / 802.1Q VLAN / 802.1ad Q-in-Q Maximum consumption 1.79W @ 10G.
Supports Jumbo Frame up to 16KB.
VLAN TAG IEEE 802.1Q and Q-in-Q 802.1ad
Hardware checksum & offload segmentation, reduces processor load by 40% to 60%.
Supports Wake-on-LAN, PXE / EFI network boot.
IEEE 802.3x Full Duplex Stream Control
Operating temperature: 0°C to +70°C, passive cooling, no fan required.
Maximum distance 10GBASE-SR 300m (OM3/OM4 Multimode), 10GBASE-LR 10km (OS2 Singlemode), 10GBASE-ER 40km (OS2 Singlemode), Twinax DAC 1-7m (direct connection copper)
Size: 80mm x 45mm
Weight: 112.4g

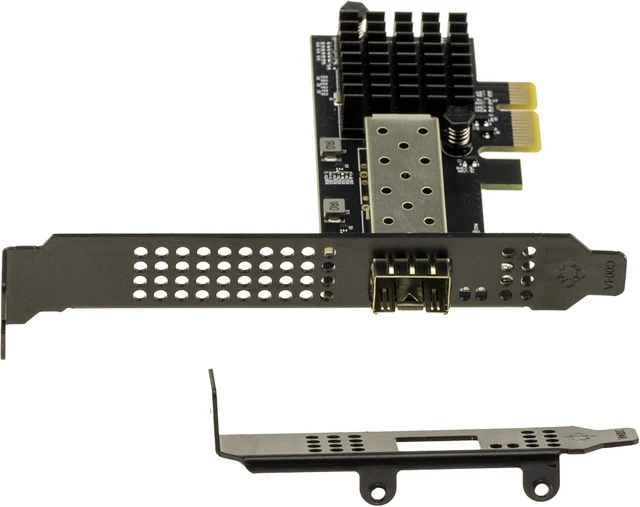

Supplied with two angles (low profile and high profile).
